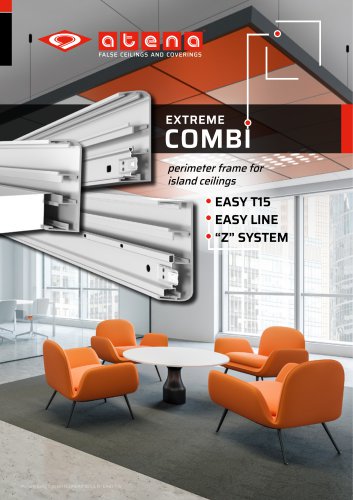

COMBI perimeter frame for island ceilings EASY T15 EASY LINE “Z” SYSTEM Picture: Ceilig system 15 LINEAR DESIGN - EASY T1

EXTREME COMBi THE RIGHT COMBiNATION FOR MODULAR ISLAND CEILINGS WITH EASY T15, EASY LINE AND “Z” SYSTEM Made up of extruded aluminum, Atena COMBi is the new wall angle of EXTREME range for floating ceilings with Easy T15, Easy Line and "Z” system: • One profile triple COMBiNATION. • Suitable both for EASY T15, EASY LINE and “Z” SYSTEM. • High durability and corrosion resistance. • RAL/NCS powder coating. • Easy installation. • VOC free | Reach RoHS compli

ATENA S.p.A. | rev 0 | 2022 EXTREME COMBi ATENA S.p.A. | rev 0 | 2022 EXTREME COMBi Threaded bar- EASY LINE COMBi Frame System section Picture: Ceilig system 15 LINEAR DESIGN - EASY LNE FLOATING CEILING SYSTEM - EASY LINE T_ GRID: EASY LINE 600 | 1200 | 3600 mm Bearing capacity 14 kg/m2 Color: White/White | Silver/Silver | White/Black | Silver/Black CEILING OPTIONS TECHNICAL DETAILS MAIN PROFILE HOOK CROSS-T HOOK 15 Linear Design Right edge - 9mm drop | 600x600 | 600x1200 mm Sublimation or digital printing of any image and effect Plain or perforated surface Alluminium: 5/10 - 6/10 - 7/10 | Steel:...

ATENA S.p.A. | rev 0 | 2022 EXTREME COMBi ATENA S.p.A. | rev 0 | 2022 EXTREME COMBi COMBi - Threaded EASYbar T15 Photo by Petr Magera on Unsplash |Render Atena S.p.A. System section Picture: Ceilig system 15 LINEAR DESIGN - EASY T15 FLOATING CEILING SYSTEM - EASY T15 T_ GRID: EASY T15 600 | 1200 | 3700 mm Bearing capacity 8 kg/m2 | Colour: White | Silver | Black CEILING OPTIONS TECHNICAL DETAILS PANELS: Right / Bevelled edge - 9/ 15 mm drop| Alluminium: 5/10 - 6/10 - 7/10 | Steel: 5/10 - 6/10 Sublimation or digital printing of any image and effect Plain or perforated surface Metal Mesh: R/Q 6-8-10...

ATENA S.p.A. | rev 0 | 2022 EXTREME COMBi ATENA S.p.A. | rev 0 | 2022 EXTREME COMBi bar COMBi - Threaded “Z” SYSTEM Photo by Petr Magera on Unsplash |Render Atena S.p.A. System section Picture: “Z” SYSTEM island ceiling system System section FLOATING CEILING SYSTEM - “Z” SYSTEM STRUTTURA: Hidden structure made up of “Z” shaped profiles in 12/10 galvanised steel and “U” punched profiles in 15/10 galvanised steel. SYSTEM SECTION DETAILS SIDE BY SIDE PANELS PANELS WITH GAP DETAIL OPTIONAL “Z” SYSTEM panels, right edge, side by side, or 4 mm gap on 2/4 sides Custom made dimensions. Other meshes on...

ATENA S.p.A. | rev 0 | 2022 EXTREME COMBi EXPOSURE CLASS CLIP TENSILE STRENGTH T-grid Easy hook 180 N FLEXION RESISTANCE Maximum span mm 1200 - 1 Class EN13964 CORROSION RESISTANCE Galvanized steel products: C2 Class Pre-painted galvanized steel products: C3 Class Post-painted galvanized steel products: C4 Class Pre/post-painted aluminium products: C5 Class (RH%) RELATIVE HUMIDITY RESISTANCE Galvanized steel products: ≤ 90% Pre/post-painted galvanized steel products: > 90% Stainless steel and aluminium products: > 90 Easy T15 REI 120 | rockwool panels 15mm thick. Concrete deck IG299074-3475 UNI...

ATENA S.p.A. ■ rev 0 | 2022 EXTREME COMBi ISLAND APPLICATION The settings are reinterpreted with photorealistic reconstructions by Atena S.p.A. atena s.p.a. has a quality management system certified by rina in compliance with ISO 9001 FALSE CEILINGS AND COVERINGS Via A. De Gasperi, 52 - 30020 Gruaro (VE) Italy Ph: +39 0421 75526 - Fax: +39 0421 75692 atena-it.com - [email protected]
