Mustang Lite

Mustang Lite
1 / 2 PagesView full catalog

Mustang Lite

Product catalog summary
Levelling System Overview
This document provides instructions for using a tile levelling system designed to improve the fitting and ease the placement of tiles. The system includes bases and wedges to ensure even tile placement.

Specifications
  • Joint Width Options: 0.5 mm, 1 mm, 1.5 mm, 2 mm, 3 mm
  • Tile Thickness: Minimum 3 mm, Maximum 16 mm

Procedure for Base Placement
  1. Spread adhesive and place bases under the tiles along all four sides.
  2. For larger tiles, use two or more bases per side.
  3. Set the tile and tap it with a rubber mallet.

Procedure for Wedge Insertion
  1. Insert the wedge into the base slot without exceeding the breakpoint.
  2. Use the Mustang Lite tool to facilitate this process.

Procedure for Base Removal
  1. Once the adhesive has set, remove the protruding part of the base by striking it with a rubber mallet or with your foot, parallel to the joint.

Recommendations
  • Use the Mustang Lite tool for easier wedge insertion.
  • Ensure proper adhesive setting before base removal to avoid tile displacement.
See more

Catalog excerpts

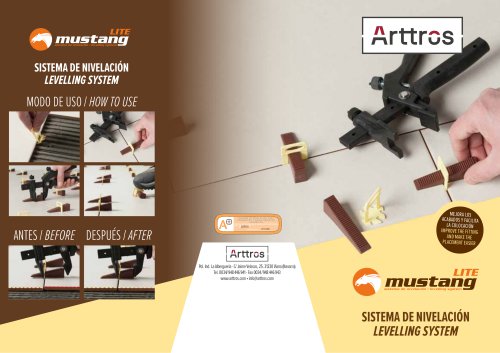

Mustang Lite-1

SISTEMA DE NIVELACIÓN LEVELLING SYSTEM MEJORA LOS ACABADOS Y FACILITA LA COLOCACIÓN IMPROVE THE FITTING AND MAKE THE PLACEMENT EASIER ANTES / BEFORE DESPUÉS / AFTER Pol. Ind. La Alberguería · C/ Jaime Velasco, 25. 31230 Viana (Navarra) Tel. 0034/ 948 446 941 - Fax 0034 / 948 446 943 www.arttros.com • [email protected] SISTEMA DE NIVELACIÓN LEVELLING S

 Open the catalog to page 1
Mustang Lite-2

MODE D´EMPLOI Colocación de la base: 1. Después de extender el cemento cola, colocar las bases debajo de las piezas en los 4 lados. 2. Para piezas de gran tamaño usar dos o más bases por lado. 3. Colocar la baldosa y golpear con el mazo de goma. Inserción de las cuñas: 1. Insertar las cuñas en el alojamiento apretando sin superar el punto de rotura. 2. Para facilitar esta tarea se aconseja el uso del Mustang Lite tool. Eliminación del soporte: Una vez ha fraguado el cemento cola, para arrancar la base basta con golpear con el mazo de goma o con la punta del pie en la dirección de la junta. Ancho...

 Open the catalog to page 2

All ARTTROS LEVELLING SYSTEMS catalogs and technical brochures

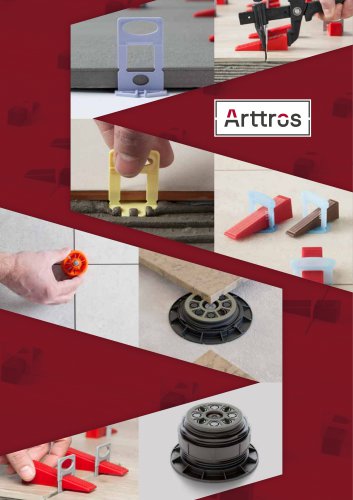

  1. Arttros Catalogue
    Arttros Catalogue

    12  Pages

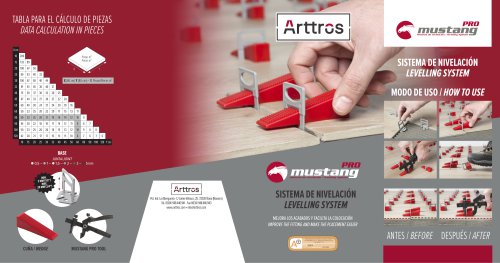

  2. Mustang Pro
    Mustang Pro

    2  Pages

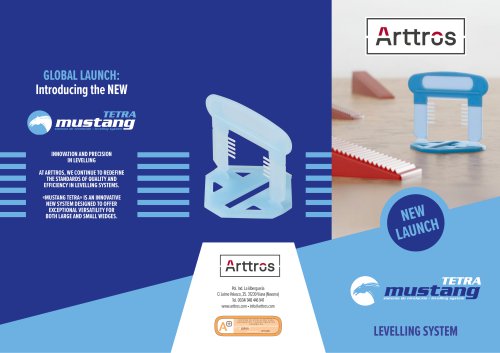

  3. Mustang Tetra
    Mustang Tetra

    2  Pages

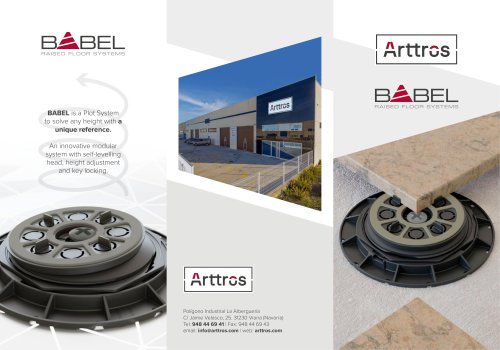

  4. Babel
