Arthur Holm
DynamicTalk B

DynamicTalk B

Product catalog summary

Overview
The Arthur Holm DynamicTalkB is a motorized microphone lift system designed for boundary table top microphones. It offers a compact, stylish, and maintenance-free solution for concealing microphones when not in use, featuring smooth and silent operation.

Highlights

Motorized lift for boundary microphones
Space-optimizing design
Low profile and stylish enclosure
Wireless connectivity for setup and control via AHlink

Technical Specifications

Control: RS-422/RS-485 Full Duplex, capacitive button, AHnet commands
Connectivity: USB port for firmware updates, AHnet protocol via RJ45 CAT6 FTP
Electrical: External power supply (100-240 Vac, 50/60Hz, 12Vdc), 16W power consumption
Materials: Brushed stainless steel or black matt finish housing
Mechanical: Cover plate dimensions Ø 254 x 3 mm, housing below table Ø 251 x 211 mm, weight 8 Kg

General Features
The DynamicTalkB can be controlled via AHnet protocol or directly using a touch control sensor. It supports automatic mute functionality and can be remotely controlled and diagnosed. It is compatible with ERT-30 and ERT-60 for address configuration and can be managed via the AHlink app on Android and iOS.

Finishes and Installation

Underneath installation
Painted finishes available

Warranty and Certifications

2 years general warranty
Certifications: CE, CB, IECEE, RoHS, EMC

Consultants, Architects, and Engineers Specifications
The system is designed to lift and retract boundary microphones with a stainless steel cover plate. It can be activated via a capacitive sensor or AHnet protocol and is compatible with a wireless app for setup and control. The system supports RS-422/RS-485 Full Duplex for setup, diagnosis, and control, and includes a USB port for firmware upgrades.

Catalog excerpts

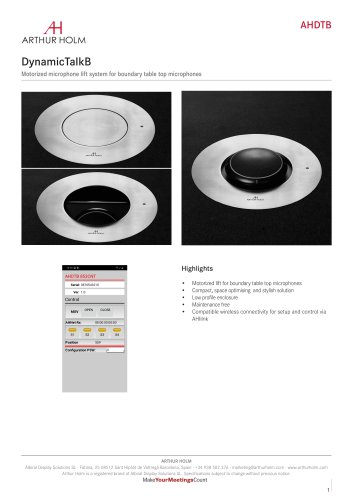

Motorized microphone lift system for boundary table top microphones Highlights • Motorized lift for boundary table top microphones • Compact, space optimising and stylish solution • Maintenance free • Compatible wireless connectivity for setup and control via AHlilnk ARTHUR HOLM Albiral Display Solutions SL ■ Fatima, 25 08512 Sant Hipolit de Voltrega Barcelona, Spain ■ +34 938 502 376 ■ [email protected] ■ www.arthurholm.com Arthur Flolm is a registered brand of Albiral Display Solutions SL. Specifications subject to change without previous notice. Make Your MeetingsCount

Open the catalog to page 1

General DynamicTalkB is a motorized microphone lift for boundary microphones and similar, controllable via AHnet protocol or directly on the device using the flush mounted touch control sensor. The Arthur Holm DynamicTalkB microphone lift is designed to hide boundary microphones when not in use with a smooth, elegant and silent movement. The microphone lift is capable of providing commands for automatic mute of the microphone (depending on the model and maker of the microphone) when moving and in storage position. The housing is made out of steel and the upper cover plate is made in stainless...

Open the catalog to page 2

Connectivity Panel General Dimensions [ i]' T [ Ti- ARTHUR HOLM Albiral Display Solutions SL ■ Fatima, 25 08512 Sant Hipolit de Voltrega Barcelona, Spain ■ +34 938 502 376 ■ [email protected] ■ www.arthurholm.com Arthur Flolm is a registered brand of Albiral Display Solutions SL. Specifications subject to change without previous notice. Make Your MeetingsCount

Open the catalog to page 3

ARTHUR HOLM Albiral Display Solutions SL · Fàtima, 25 08512 Sant Hipòlit de Voltregà Barcelona, Spain · +34 938 502 376 · [email protected] · www.arthurholm.com Arthur Holm is a registered brand of Albiral Display Solutions SL. Specifications subject to change without previous notice

Open the catalog to page 4
