AH17AH2

Product catalog summary

Overview: The AH2 is a professional, manually foldable monitor designed by Arthur Holm, a brand of Albiral Display Solutions SL. It is crafted from black anodized aluminum and features a sleek design for integration into meeting and conference tables. The monitor can be folded flat with the display facing down for protection when not in use and manually opened up to 180° for optimal viewing.

Specifications:

Display: 17.3" Full HD TFT Active Matrix with LED backlight, resolution of 1920x1080, brightness of 480 cd/m2, and contrast ratio of 1100:1.
Viewing Angle: 85°/85° (up/down) and 85°/85° (left/right).
Materials: Milled aluminum housing with black anodized finish and 2mm anti-reflective black-edged glass.
Connectivity: HDMI input, HDCP compliant, with 700mm HDMI and power cables.
Power: External power supply of 100-240 Vac, 47/63Hz, 12Vdc, with a power consumption of 50W.
Dimensions: Monitor dimensions are 414 x 307.50 x 19 mm, with a weight of 2.9 Kg.
Options: Available with a projected capacitive multi-touch screen.
Certifications: CE, IECEE, CB, RoHS.
Warranty: 2 years general warranty.

Features:

Manually foldable from 0° to 180° with stepless viewing position.
Auto-Stand-By and Auto-ON/OFF based on position.
Easy installation with minimal space required under the table surface.
Maintenance-free and energy-saving design with low consumption video controller.

Applications: Ideal for open tables in meeting rooms, maximizing workspace while maintaining a clean appearance. The monitor's compact installation footprint allows for cable-free working space, facilitating the combination of digital content with physical documents.

Catalog excerpts

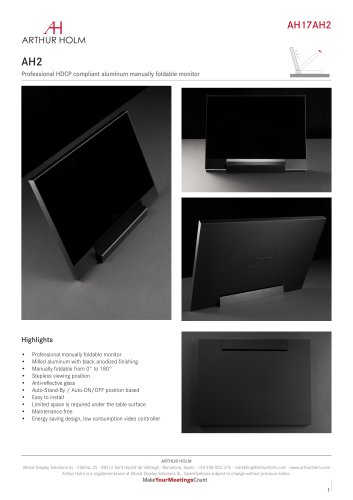

Professional HDCP compliant aluminum manually foldable monitor Highlights • Professional manually foldable monitor • Milled aluminum with black anodized finishing • Manually foldable from 0° to 180° • Stepless viewing position • Anti-reflective glass • Auto-Stand-By / Auto-ON/OFF position based • Limited space is required under the table surface • Maintenance free • Energy saving design, low consumption video controller ARTHUR HOLM Albiral Display Solutions SL ■ Fatima, 25 ■ 08512 Sant Hipolit de Voltrega ■ Barcelona, Spain ■ +34 938 502 376 ■ [email protected] ■ www.arthurholm.com Arthur Flolm is a registered brand of Albiral Display Solutions SL. Specifications subject to change without previous notice. Make Your MeetingsCount

Open the catalog to page 1

General The AH2 is a premium manually foldable monitor, crafted from black anodized aluminum and designed for seamless integration into meeting and conference tables. Its elegant, low-profile design allows the screen to be folded completely flat above the table, with the display facing down for maximum protection when not in use. When required, the monitor opens manually up to 180°, providing optimal viewing comfort. Thanks to its minimal installation depth, the AH2 is particularly suitable for open tables, maximizing available workspace while maintaining a clean and uncluttered appearance. The...

Open the catalog to page 2

AH17AH2 Consultants, architects and engineers specifications The monitor shall provide a manually adjustable position from 0° to 180°. The monitor housing shall be made of anodized aluminum with a 2mm black edged glass. The monitor shall have one milled aluminum mounting support, allowing the user to adjust the viewing area of the monitor and holding the monitor in a firm working position. All connectors shall be placed under the table and cables shall be unseen through the mounting support of the monitor. The 17.3” Full HD monitor shall have a brightness of 480cd/m2, and a contrast ratio of...

Open the catalog to page 3
