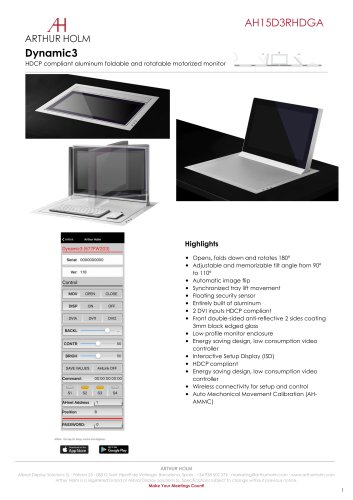

AH15D3RHDGA
4Pages

HDCP compliant aluminium foldable and rotatable monitor Opens, folds down and rotates 180° 2 working positions: vertical and horizontal Automatic image flip Adjustable and memorisable tilt angle from 90 to 110º Synchronised tray lift movement Entirely built of aluminium 2 DVI I/HDCP compliant Interactive Setup Display (ISD) Front double sided anti-reflective 2 sides coating 3 mm black edged glass Low profile monitor enclosure Floating security sensor Maintenance free HDCP compliant Energy saving design, low consumption video controller Serial control and remote diagnosis Wireless connectivity for setup and control Individual monitor addressing Auto Mechanical Movement Calibration (AH-AMMC) 40 Pounds workload General Arthur Holm Dynamic3 is a motorised product range that provides different working positions while keeping a low profile inside the working desk and a perfect integration in the furniture. The aluminium monitor housing rises and leans, has an additional 180° rotation movement, and retracts inside the work surface in 2 different positions: with the monitor oriented up or down. The screen’s lifting system automatically activates the elevation of a tray where keyboard and mouse can be placed. We have selected the best possible aluminium finishing specifications in the world, providing the maximum technical and visual performance and the screen is protected with an anti-reflective 2 side coating 3 mm black edged glass. Dynamic3 is available from 15.6" to 21.5", with 2 DVI-HDCP compliant inputs and equipped with an interactive setup display (ISD) allowing the control, setup and diagnose of the monitors. Monitors provide RS-422 I/O allowing the remote control of movements, speeds, safety settings, brightness, contrast and backlight. The monitors are equipped with an auto mechanical calibration movement system. The use of the Arthur Holm’s ERT will enable the address configuration of all the monitors installed in a table by simply pressing a button. The AHlink Android and iOS app allows getting the monitor’s serial number without accessing the interior of the table and allows access to the setup and control menu. ARTHUR HOLM Albiral Display Solutions SL · Fàtima, 25 Sant Hipòlit de Voltregà 08512 Barcelona, Spain · +34 938 502 376 · marketing@arthurholm.com · www.arthurholm.com Arthur Holm is a registered brand of Albiral Display Solutions SL. Specifications subject to change wi

Technical Specifications Benefits • Flexibility and versatility • No loss of work space • Low profile monitor enclosure • Keyboard and mouse storage space Certifications • CE • FCC • IECEE Warranty • 2 years limited warranty Options • DynamicLoop • DynamicShare • Projected capacitive multi-touch screen • Built-in camera • Built-in DynamicTalk • Integrated connectors on cover plate • Retractable HDMI cable • Underneath installation prepared to be veneered • Laser engraved logotype on cover plate • Keyboard and mouse • Priority button • Anodised in black • Gold finish • Bronze finish •...

Connectivity Pannel ARTHUR HOLM Arthur Holm Bootl. Her:1.02 NEO ISD (Interactive Setup Display) Consultants, architects and engineers specifications Motorised foldable and rotatable 15.6" Full HD professional monitor. The monitor housing shall be made of milled anodised aluminium and the screen shall be protected with anti-reflective 2 side coating black edged 3 mm glass. The monitor shall have a brightness of 400 cd/m2, a contrast ratio of 1500:1 and a backlight lifespan of 70,000 hours. The monitor’s opening mechanism shall activate automatically the rising of a synchronised aluminium...

General Dimensions and vertical erence room tables onitor with horizontal and vertical nto meeting and conference room tables 1,32 402 15,83 th horizontal and vertical ting and conference room tables 33,50 1,32 33,50 1,32 monitor with horizontal and vertical into meeting and conference room tables Albira Fàtima 25, Sant Hipòlit de Voltregà. 0 A TEL: +34 93 850 23 76 / 23 83 WEB: www.arthurholm.com EMAIL Albiral Dis Fàtima 25, Sant Hipòlit de Voltregà. 08512 ARTHUR HO TEL: +34 93 850 23 76 / 23 83 FAX WEB: www.arthurholm.com EMAIL: mar Albiral Display Solutions Fàtima 25, Sant Hipòlit de...
