E-COMBI

Product catalog summary

Overview: The E-COMBI range of wall-hung high-efficiency gas combination boilers is designed for easy installation, commissioning, and servicing. These boilers are reliable, economical, and feature advanced technology to ensure efficient operation.

Specifications: The E-COMBI boilers are available in three outputs: 24 FF, 30 FF, and 38 FF. They have a SEDBUK Band A rating with SAP efficiency percentages of 90.3% for 24 FF and 30 FF, and 90.1% for 38 FF. The boilers offer high hot water flow rates and include features such as anti-frost and anti-scale devices, built-in automatic by-pass, and a mechanical time clock.

Installer Benefits: The boilers come with a filling loop and mechanical time clock as standard, reduced fixing height between pipework and flue, multiple flue options, and simple temperature control dials. They are easily accessible for servicing and maintenance and come with a 2-year guarantee.

Control Panel: The control panel is user-friendly with a mechanical time clock and clear temperature setting dials for straightforward control. The design includes an LED display for easy monitoring.

Technical Information: The boilers operate with a central heating temperature range of 20°C to 82°C and a domestic hot water temperature range of 36°C to 60°C. They require a minimum ambient temperature of 5°C and have a built-in expansion vessel capacity of 8 liters.

Installation Accessories: A variety of wired and wireless controls are available, including digital time clocks, room thermostats, and outdoor sensors. Installation accessories include rear piping chassis, metal templates, and pre-installation kits.

Flue Options: The boilers are adaptable to various flue situations with coaxial and twin pipe systems available. Flue terminals can be positioned in compliance with BS5440-1:2000 standards.

Contact Information: For technical advice and customer service, contact MTS (GB) Limited or Professional Team Limited at the provided phone numbers and email addresses.

Catalog excerpts

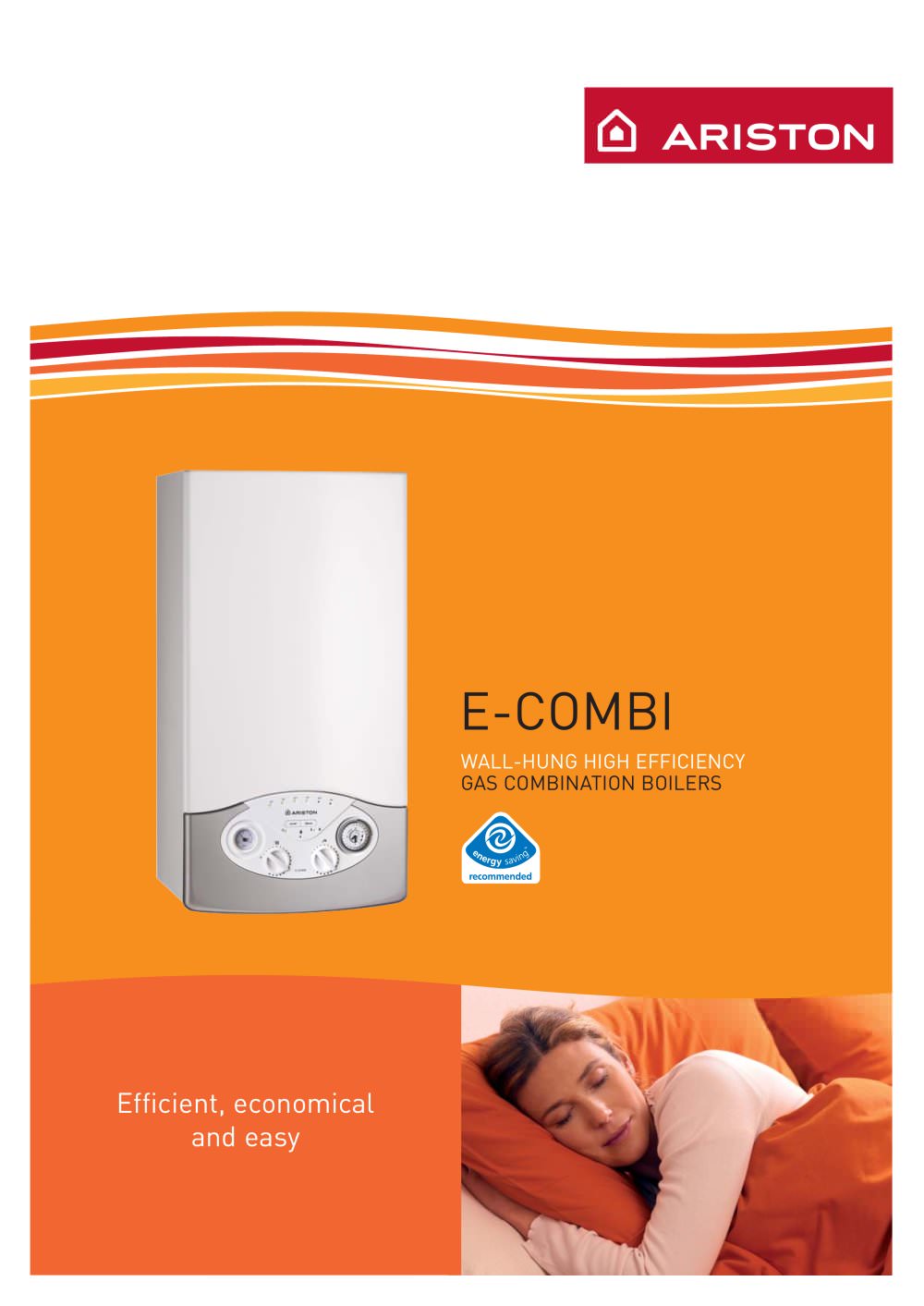

WALL-HUNG HIGH EFFICIENCY GAS COMBINATION BOILERS >

Open the catalog to page 1

The simple and easy to use control panel has a mechnical time clock,which is factory fitted as standard. The boilers clear temperature setting dials give straightforward control. > SEDBUK Band A Filling loop and mechanical time clock supplied as standard Rear piping chassis available as an option Reduced fixing height between pipe work and flue Multiple flue options Easily accessible for servicing and maintenance Simple temperature control dials 2 year guarantee > 3 size="-1">

Open the catalog to page 3

COMPACTDIMENSIONS QUIETOPERATION ENERGYEFFICIENT SEDBUK BAND A ANTI-FROST AND ANTI-SCALE DEVICE AVAILABLE IN THREE OUTPUTS BUILT-IN AUTOMATIC BY-PASS HIGH HOT WATER FLOW RATES BUILT-IN MECHANICAL TIME CLOCK RANGE OF WIRED AND WIRELESS CONTROLS INCLUDES CONNECTION KIT ANDFILLING LOOP AUTO-DIAGNOSTIC SYSTEM 2 YEAR GUARANTEE SIMPLE MAINTENANCE WITH ACCESS FROM THE FRONT OF THE APPLIANCE FAMILIAR LED DISPLAY > 400180 Coaxial exhaust Twin pipe exhaust 60/100: up to 12m (24kW)ؘ80/125: up to 24m (24kW) 80/80: up to 60m (24kW) 770 90ذ4050а6070а80on/o 2 1 24 3 23 4 22 12 5 21 I 20 6 9 19 7 18 8 9 17 10...

Open the catalog to page 4
