Overview
The document details the Endeleo Distributed Media systems, focusing on the Universal Distribution Matrix (UDM) and Managed TV (TVM) series. These systems facilitate multimedia content distribution and management over Cat 5/5e/6 cables.

UDM Series
The UDM Series enables centralized control, switching, and transmission of video sources over a single cable, suitable for network operations centers, corporate communications, and digital signage. Key products include:

UDM-1604: Supports multiple video formats, transmitting over 1,000 feet to numerous displays.
UDM-0102: Ideal for single-room applications, supporting various video inputs with one RJ45 output.
UDM-RX01/RX02: Receivers converting signals to standard A/V formats, with RX02 offering optional local power supply.

TVM Series
The TVM Series distributes broadcast TV and recorded video to multiple displays, supporting content and display management over a single cable. Key products include:

TVM-1600: Manages up to 192 TV/video channels over 3,000 feet, supporting up to 16 displays per hub.
TVM-RX03: Receives signals from TVM-1600, providing control features for display devices.

Features and Benefits

Ease of Control: Centralized control with IR receiver ports and LED displays for channel identification.
Energy Efficiency: Phantom power over Cat 5/5e/6 cables eliminates local power needs.
Media Management: Integrated Device Management (IDM) technology allows ad-hoc or scheduled control of display devices.
Simple Setup: On-board web browser and scheduler for rapid setup and management.
Messaging Capabilities: Unique to the TVM Series, allowing ad-hoc or scheduled text messages to displays.

Applications
The systems are applicable in sectors like financial institutions, education, government, entertainment, retail, and residential settings, designed to be flexible, expandable, cost-effective, robust, and convenient for multimedia content management.

System Control and Management
The system supports easy control via IR receivers and LED displays for channel identification, reducing wiring needs with phantom power over Cat 5/5e/6 cables. IDM technology allows comprehensive media management and scheduling.

Key Features

Flexible: Multimedia content can be directed to specific displays.
Expandable: Supports an unlimited number of displays.
Cost-Effective: Utilizes existing Cat 5/5e/6 infrastructure.
Robust: Manages multimedia sources and sends messages and alerts.
Convenient: Web-based management allows global access.

Technical Specifications
The UDM and TVM series support various video and audio formats, with specific input and output configurations detailed for each product, designed for easy expansion and integration with existing infrastructure.

Catalog excerpts

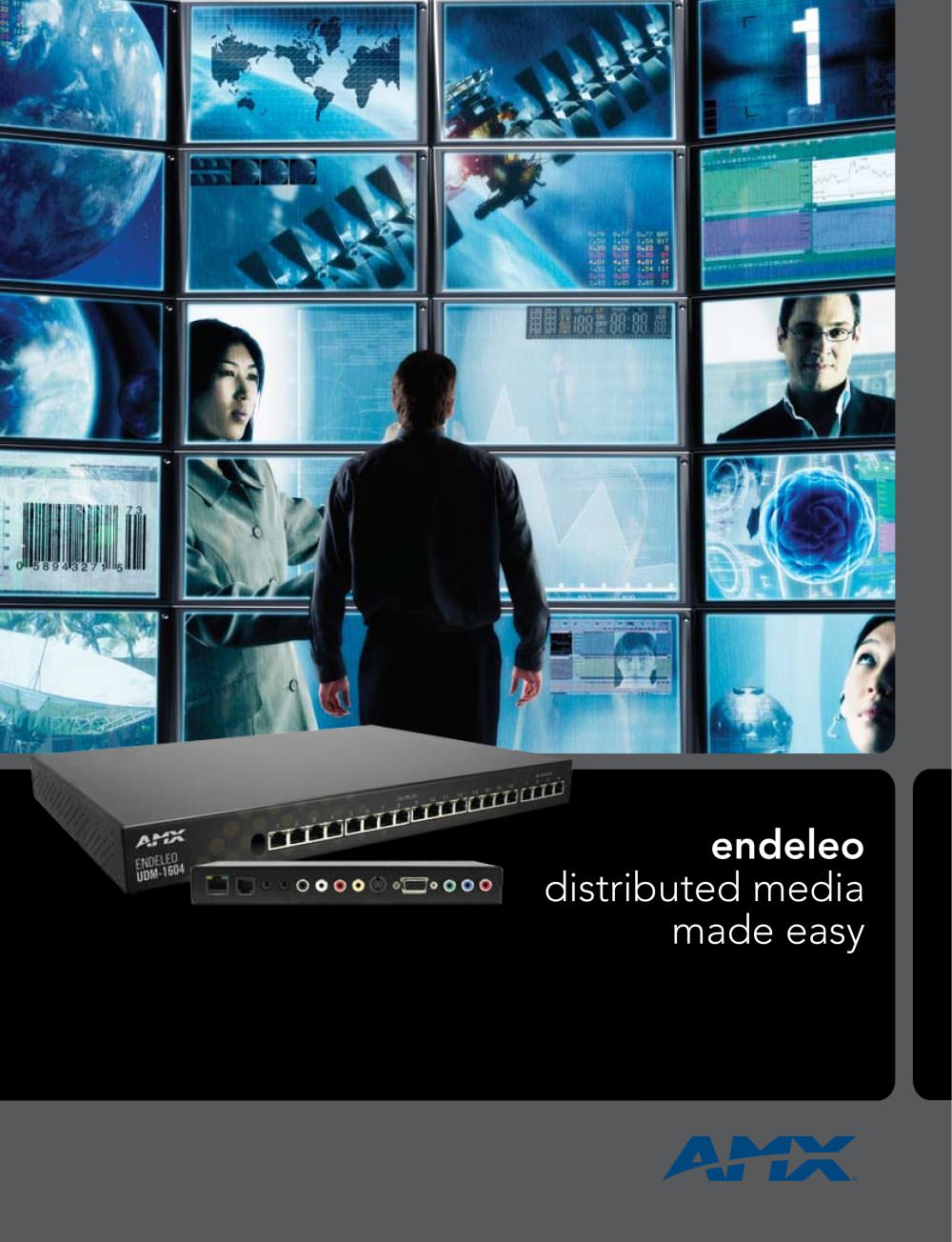

endeleo distributed media made easy > ENDELEO size="-1">

Open the catalog to page 1

U NIVER S AL DI S TRI B U T I O N MATRI X U > With the AMX Endeleo UDM Series, digital signage and other multi-format video distribution has never been easier or more cost effective. Centrally control individual display devices, switch and transmit any video source over a single Cat 5/5e/6 cable with one streamlined system. It is ideal for: DM S ERI E S > Network Operations CentersՕ Corporate Communications Digital Signage Օ Presentation Facilities Hotels Օ Museums Call Centers Manage and Schedule Your Media All TVM and UDM Receivers ship with Integrated Device Management (IDM) technology for...

Open the catalog to page 3

The TVM-1600 is a comprehensive solution to switch, transmit and manage up to 192 TV / video channels over distances of 3,000 feet / 1,000 meters. Each TVM-1600 supports up to 16 displays. Need to distribute multimedia to more displays? Simply add additional TVM hubs to your system.Installed at the display device, the TVM-RX03 is the receiver that converts the signal received from the TVM-1600 to standard A/V signals. It provides an LED display for channel identification and local IR emitter and RS232 serial ports for control of LCD/Plasma screens, video projectors and other devices. >

Open the catalog to page 4

v i deo project i onscreen PC laptop PCTVLCD plasma AMX EndeleoUDM-1604 v i deo projector AMX Remote > AMX Endeleo UDM-RX01AMX EndeleoUDM-RX01 AMX EndeleoUDM-RX01 AMX Remote DVDVCR AMX EndeleoUDM-RX01 AMX Remote AMX Remote >

Open the catalog to page 5

Receiver INPUT1 input from UDM Hub using Cat 5/5e/6 ՕReceive video, audio, device control and power over single cableVIDEO OUTPUTS 1600 x 1200 (UXGA) Օ1920 x 1080 (HDTV) Component YPbPr ՕS-Video Composite - PAL and NTSCAUDIO OUTPUTSՕAnalog Stereo Digital Stereo ՕS/PDIF DEVICE CONTROLRS232 Serial Interface: 38400, 8 bit, No Parity, 1 Stop Bit ՕInfrared Control: (1) 3.5 mm emitter port ; (1) 3.5 mm receiver port DISTANCE FROM UDM HUB 2,300Ւ for 720 x 480 NTSC, 720 x 576 PAL (composite) 480p, 576p (component) 650Ւ for 640 x 480 VGA, 800 x 600 SVGA, 1024 x 768 XGA (VGA) 720p (component) 500Ւ for...
