SL-3131 Solaris

Product catalog summary

Specifications Overview:
The SL3131 SLI-14D T30stack is a commercial dryer with a maximum dry weight capacity of 30 lb (13.61 kg) per pocket. The tumbler has a diameter of 30 inches (76.20 cm) and a depth of 27 inches (68.58 cm), providing a volume of 11.04 cubic feet (312.62 liters) per pocket. Each pocket is powered by a 1/4 hp (0.19 kW) tumbler/drive motor and a 1/2 hp (0.37 kW) blower/fan motor.

Dimensions and Connections:
The door opening diameter is 19-3/8 inches (49.21 cm), with door sill heights of 54-11/16 inches (138.91 cm) for the top pocket and 14-7/8 inches (37.78 cm) for the bottom pocket. Water connections are 3/4”-11.5 NH for North America and 3/4” B.S.P.T. for outside North America. The exhaust connection diameter is 6 inches (15.24 cm).

Electrical and Airflow Specifications:
The dryer operates on voltages ranging from 120-240V, 1ø, 2w, 50/60 Hz, and 200-416V, 1,3ø, 2,3,4w, 50/60 Hz. Airflow per pocket is 360 cfm (10.19 cmm) at 60 Hz and 300 cfm (8.49 cmm) at 50 Hz. Heat input per pocket is 55,000 Btu/hr (13,860 kcal/hr).

Weight and Capacity:
The approximate net weight is 550 lb (249.48 kg), and the shipping weight is 580 lb (263.08 kg). The dryer can fit 12 units in a 20’ container and 28 units in a 40’ container. For trucks, 34 units fit in a 48’ truck and 38 units in a 53’ truck.

Steam and Boiler Specifications:
Steam consumption per pocket is 63 lb/hr (28.58 kg/hr) with an operating steam pressure of 150 psi (10.34 bar). Boiler horsepower under normal load is 1.75 Bhp.

Internal Notes:
Various internal notes indicate updates to specifications, such as changes to gas inlet pipe sizes and water connection standards. These notes also include historical revisions to the specifications and internal communication regarding these changes.

Catalog excerpts

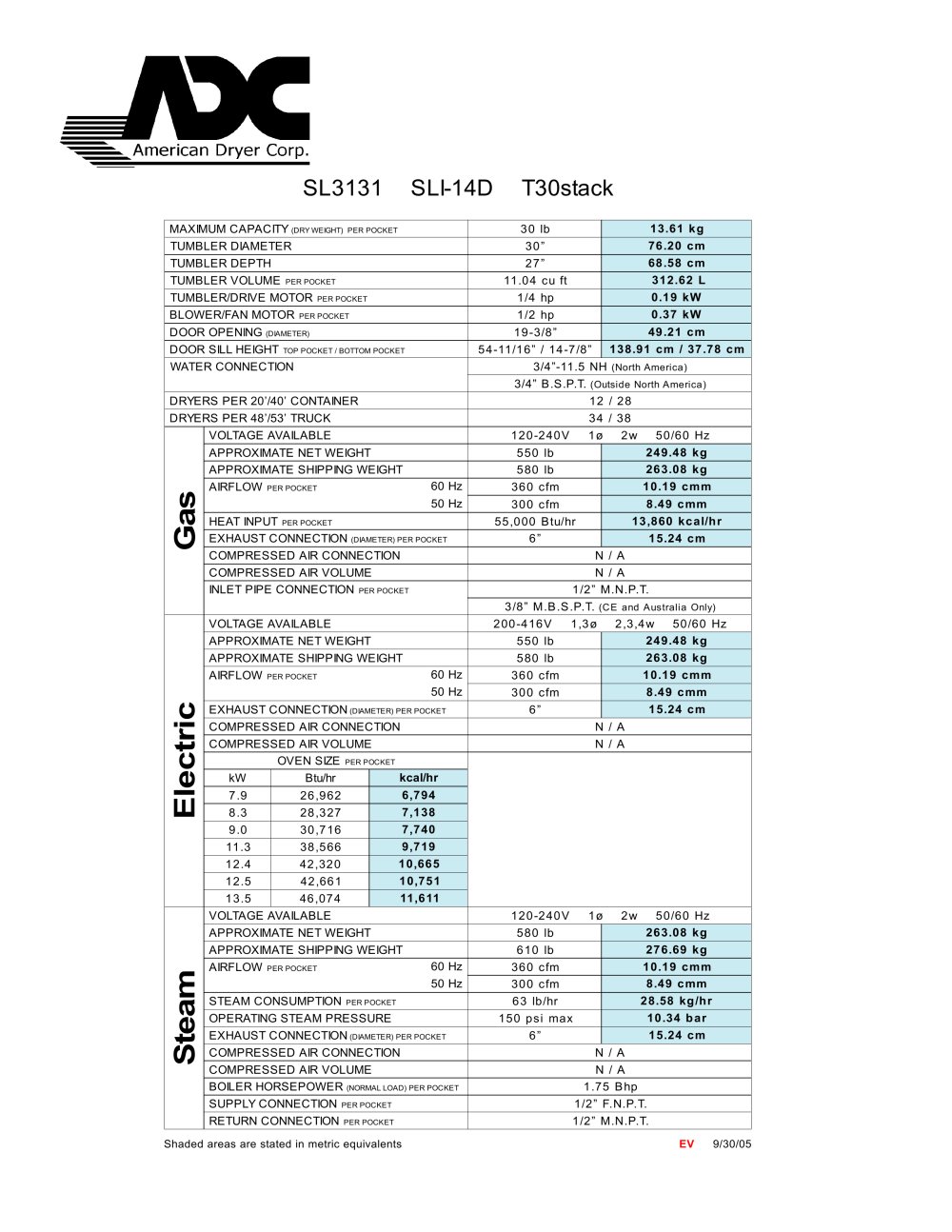

MAXIMUM CAPACITY > (DRY WEIGHT) PER POCKET 30 lb 13.61 kg TUMBLER DIAMETER30 76.20 cm TUMBLER DEPTH27Ԕ 68.58 cm TUMBLER VOLUME > PER POCKET 11.04 cu ft 312.62 L TUMBLER/DRIVE MOTOR > PER POCKET 1/4 hp 0.19 kW BLOWER/FAN MOTOR > PER POCKET 1/2 hp 0.37 kW DOOR OPENING > (DIAMETER) 19-3/8 49.21 cm DOOR SILL HEIGHT > TOP POCKET / BOTTOM POCKET 54-11/16Ԕ / 14-7/8 138.91 cm / 37.78 cm WATER CONNECTION3/4Ԕ-11.5 NH > (North America) 3/4 B.S.P.T. > (Outside North America) DRYERS PER 20Ԓ/40 CONTAINER12 / 28DRYERS PER 48Ғ/53 TRUCK34 / 38VOLTAGE AVAILABLE120-240V 1Ҹ 2w 50/60 HzAPPROXIMATE NET WEIGHT550 lb 249.48 kg APPROXIMATE SHIPPING WEIGHT580 lb 263.08 kg AIRFLOW > PER POCKET 60 Hz360 cfm 10.19 cmm 50 Hz300 cfm 8.49 cmm HEAT INPUT > PER POCKET 55,000 Btu/hr 13,860 kcal/hr > GasElectricSteam EXHAUST CONNECTION > (DIAMETER) PER POCKET 6 15.24 cm COMPRESSED AIR CONNECTIONN / ACOMPRESSED AIR VOLUMEN / AINLET PIPE CONNECTION > PER POCKET 1/2Ԕ M.N.P.T.3/8 M.B.S.P.T. > (CE and Australia Only) VOLTAGE AVAILABLE200-416V 1,3Ը 2,3,4w 50/60 Hz APPROXIMATE NET WEIGHT550 lb 249.48 kg APPROXIMATE SHIPPING WEIGHT580 lb 263.08 kg AIRFLOW > PER POCKET 60 Hz360 cfm 10.19 cmm 50 Hz300 cfm 8.49 cmm EXHAUST CONNECTION > (DIAMETER) PER POCKET 6 15.24 cm COMPRESSED AIR CONNECTIONN / ACOMPRESSED AIR VOLUMEN / AOVEN SIZE > PER POCKET kWBtu/hr kcal/hr 7.926,962 6,794 8.328,327 7,138 9.030,716 7,740 11.338,566 9,719 12.442,320 10,665 12.542,661 10,751 13.546,074 11,611 VOLTAGE AVAILABLE120-240V 1Ը 2w 50/60 HzAPPROXIMATE NET WEIGHT580 lb 263.08 kg APPROXIMATE SHIPPING WEIGHT610 lb 276.69 kg AIRFLOW > PER POCKET 60 Hz360 cfm 10.19 cmm 50 Hz300 cfm 8.49 cmm STEAM CONSUMPTION > PER POCKET 63 lb/hr 28.58 kg/hr OPERATING STEAM PRESSURE150 psi max 10.34 bar EXHAUST CONNECTION > (DIAMETER) PER POCKET 6 15.24 cm COMPRESSED AIR CONNECTIONN / ACOMPRESSED AIR VOLUMEN / ABOILER HORSEPOWER > (NORMAL LOAD) PER POCKET 1.75 BhpSUPPLY CONNECTION > PER POCKET 1/2Ԕ F.N.P.T.RETURN CONNECTION > PER POCKET 1/2 M.N.P.T. > Shaded areas are stated in metric equivalents EV 9/30/05 size="-1">
