Alto-Shaam
Gas rotisserie

Gas rotisserie

Product catalog summary

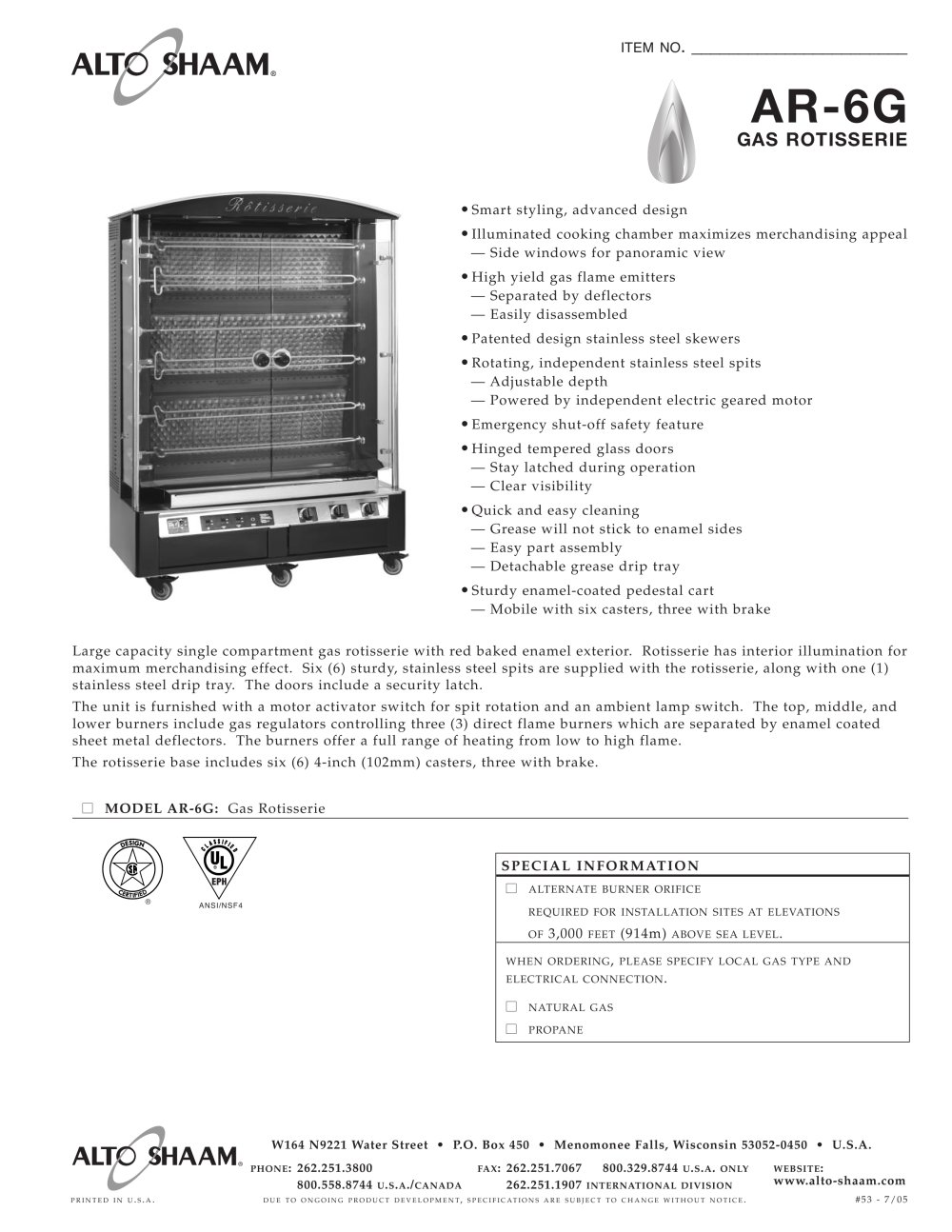

Product Overview: The AR-6G Gas Rotisserie is a large capacity, single compartment unit designed for commercial use. It features a red baked enamel exterior and interior illumination to enhance product display. The rotisserie includes six stainless steel spits and a drip tray, with doors equipped with a security latch.

Design and Features: The rotisserie boasts smart styling and advanced design, with side windows for a panoramic view. It includes high yield gas flame emitters separated by deflectors, which are easily disassembled. The unit is equipped with patented stainless steel skewers and rotating, independent spits powered by an electric motor. Safety features include an emergency shut-off and hinged tempered glass doors that stay latched during operation. The unit is designed for easy cleaning with enamel sides that resist grease and a detachable drip tray.

Specifications: The exterior dimensions are 76-1/2" x 55-1/8" x 24-5/8" (1943mm x 1400mm x 625mm), and the interior dimensions are 54-1/4" x 54-1/8" x 8-3/4" (1378mm x 1375mm x 222mm). It can accommodate 36 to 42 whole chickens, depending on size. The unit requires a 4" clearance at the back and 18" at the sides, and must be installed on a non-combustible surface with an exhaust ventilation hood.

Weight and Shipping: The net weight is 848 lb (385 kg), with a shipping weight of 1048 lb (475 kg). Crate dimensions for shipping are approximately 81-1/2" x 60-1/8" x 29-5/8" (2070mm x 1530mm x 752mm).

Options and Accessories: Available options include a black enameled body exterior, additional drip trays, heavy-duty spits, multi-purpose baskets, roasting trays, and various types of spits.

Electrical and Gas Requirements: The unit operates on 120V, 1 phase, 60 Hz, drawing 6.0 amps. It uses a NEMA 5-15P plug. For gas, it requires a 0.75" NPT connection with a connected energy load of 195,000 Btu/hr. Minimum and maximum connected pressures are specified for both natural gas and propane.

Catalog excerpts

DIMENSIONS: H x W x D > EXTERIOR : 76-1/2" x 55-1/8" x 24-5/8" (1943mm x 1400mm x 625mm) > INTERIOR :54-1/4" x 54-1/8" x 8-3/4" (1378mm x 1375mm x 222mm) INTERIOR Skewer Usable Length - 35"(889mm)Space Between Skewers - 5"(127mm)1 Stainless Steel Drip Tray > 76-1/2" (1943mm) PRODUCT\PAN CAPACITY > GasConnection 36 to 42* whole chickens6 stainless steel skewers* > Capacities shown are based on the use of 2-1/4 to 2-1/2 pound chickens (1,02 to 1,13 kg) ELECTRICAL > VOLTAGEPHASECYCLE / HZAMPSW 1201606.07.25 > NEMA 5-15P15A, 125V > PLUG NATURALGAS > OR PROPANE > Hook-Up:0.75" NPT Connected Energy...
