Alto-Shaam
Commercial electric double oven

Commercial electric double oven

Product catalog summary

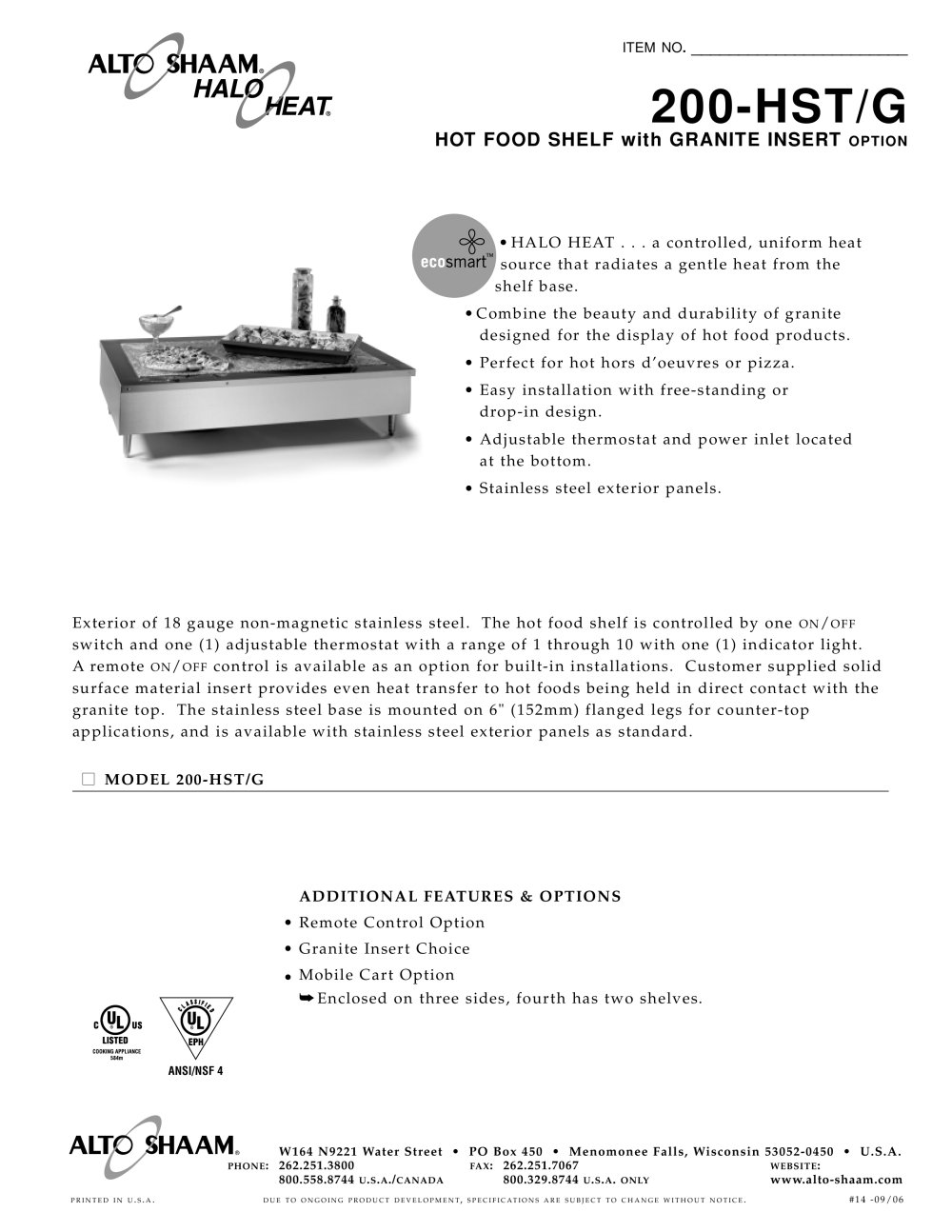

Product Overview: The 200-HST/G is a hot food shelf with an optional granite insert, designed for maintaining the temperature of hot food items. It features an 18-gauge non-magnetic stainless steel exterior and is equipped with a thermostat adjustable from 1 to 10, an ON/OFF switch, and an indicator light. A remote ON/OFF control is available for built-in installations.

Specifications: The unit measures 12-13/16" x 44-5/16" x 26-1/4" (326mm x 1126mm x 667mm) with a surface dimension of 38" L x 19-5/8" W (966mm x 499mm). It requires an opening of 43" L x 24-1/16" W (1093mm x 611mm) for drop-in applications. The maximum product capacity is 36 lb (16 kg).

Installation Requirements: The unit must be installed level and away from adverse conditions such as steam, grease, or high temperatures. No clearance is required.

Weight: The net weight is 89 lb (40 kg), and the shipping weight is 112 lb (51 kg).

Electrical Specifications: The unit operates at 125 volts, single-phase, 60 Hz, drawing 11.7 amps and 1.5 kW. It comes with bare end wiring and no plug.

Features & Options: Additional features include a remote control option, granite insert choice, and a mobile cart option enclosed on three sides with two shelves on the fourth. The unit utilizes HALO HEAT technology for uniform heat distribution and is suitable for displaying hot hors d’oeuvres or pizza. It offers easy installation with free-standing or drop-in design.

Accessories: Available accessories include granite color choices (Grey GR-25435, Impala Black GR-25636), a remote control (5000729), and various cart options with different panel packages.

Contact Information: For more information, contact Alto-Shaam at their Menomonee Falls, Wisconsin location, or visit their website at www.alto-shaam.com.

Catalog excerpts

OPTION DIMENSIONS: H x W x D > EXTERIOR : 12-13/16" x 44-5/16" x 26-1/4" (326mm x 1126mm x 667mm) > SURF ACE DIMENSIONS : 38" Lx 19-5/8" W (966mm x 499mm) > OPENING REQUIRED FOR DROP - > IN APPLICA TION :43" Lx 24-1/16" W (1093mm x 611mm) ELECTRICAL > VOLTAGEPHASECYCLE / HZAMPS kW 19-5/8"(499mm)24-1/16" (611mm) 12516011.71.5 > BAREENDNOPLUG 26-1/4" (667mm) 38" (966mm)43" (1093mm) 26-1/4" (667mm) 44-5/16" (1126mm) 19-5/8"(499mm)24-1/16" (611mm) 6-1/16" (154mm)4-3/8" (111mm) Power Cord Location 9-1/4" (235mm) Power Switch6-1/4" (159mm)Electrical Connection 12-13/16"(326mm) PRODUCT CAPACITY 36 lb...
