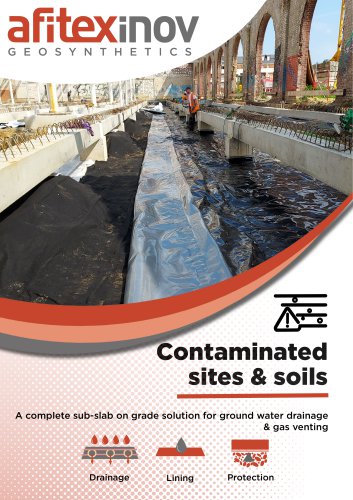

Contaminated sites & soils A complete sub-slab on grade solution for ground water drainage & gas venting

Contaminated Sites & Soils

Specialist manufacturer & supplier of soil drainage, reinforcement & waterproofing solutions 30 years’ expertise in geotechnical applications The core business of AFITEXINOV, member of the AFITEX Group, is in soil drainage reinforcement and waterproofing. Today, AFITEX stands as a market leader in geosynthetic solutions. By designing, manufacturing and selling its products and services, the group meets the needs within construction, public works, environmental and mining industry sectors. The AFITEX Group has grown internationally, securing a strong presence in Europe, Africa, the Middle East,...

A multi-layer solution dedicated to contaminated sites and soils

AFITEXINOV provides efficient, cost effective solutions that comply with the various construction problems associated with contaminated sites and soils. The products are known for their ease of use and rapid installation in addition to their benefit in reducing the project overall carbon footprint. All our products are designed to offer reliable long term performance. MECANICAL PROTECTION OF THE GEOMEMBRANE AFITEX ST 300 Page 09 GAS BARRIER LINER AFIFLEX EVOH Page 08 GAS DRAINAGE DRAINTUBE® GAZ Pages 06 - 07

HORIZONTAL APPLICATION Protective Geotextile AFITEX ST 300 AFIFLEX EVOH liner manufactured thanks to the co-extrusion of 7 gas-tight layers Drainage layer with needle-punched nonwoven fabric Gas extraction Network 20mm diameter perforated drain pipe Nonwoven filtering geotextile 1 product 1 installation 2 functions Azay-sur-Cher France Tourcoing France

APPLICATION When remediating sites with high levels of contamination in the soil, it is extremely costly to treat and/or dispose of the excavated soil. Typically the gases present on the site may pose a health risk, requiring gas venting combined with EVOH® geomembrane sealing. The AFITEXINOV solution, which consists of 1 in 3 products, is a proven and cost-effective solution because it confines the contaminated soil on site whilst mitigating gas problems under the construction. DRAINTUBE® GAZ is installed directly above the contaminated soil. This reliable geocomposite creates a preferential...

HORIZONTAL APPLICATION AFIFLEX® EVOHGas barrier liner AFIFLEX® EVOH is the second product in the solution. It is usually applied directly over the DRAINTUBE® GAZ. This EVOH (ethylene vinyl alcohol) liner is made up of 7 co-extruded layers, which, thanks to their technical characteristics, allow gases to be confined underneath the building. The membrane strips are welded together and fixed around the edges of the building using a metal plate and silicone seal to guarantee the sealing of the system, ensuring long term performance. The gases are thus confined and evacuated towards the gas extracting...

HORIZONTAL APPLICATION AFITEX® ST 300 Puncture protection geotextile AFITEX® ST 300 is applied directly over AFIFLEX® EVOH to provide the required protection from the next construction operation e.g. concrete slab casting. AFITEX® ST 300 geotextile is designed to protect the EVOH membrane thanks to its puncture resistance qualities. The geotextile can be laid quickly and economically, simply by unrolling it over the entire surface to be protected as recommended on our installation guidelines. Then the concrete is poured directly onto the geotextile or covering it with insulation panels to continue...

APPLICATION This AFITEXINOV solution is quick to apply and ideal for a new construction, but can also be applied in the case of a renovation, if gas leaks are discovered after the building has been completed. Depending on the type of foundation, it may therefore be advisable to install it on the vertical walls or at floor level in order to confine the gases and create a preferential drainage path for their evacuation around the house. (POSSIBILITY OF MECHANISING THIS SYSTEM) AFITEX® ST 300 + AFIFLEX® EVOH + DRAINTUBE® GAZ Solution implemented under the foundations

(POSSIBILITY OF MECHANISING THIS SYSTEM) Empreinte carbone réduite car les terres polluées n’ont pas besoin d’être évacuées AFITEX® ST 300 + AFIFLEX® EVOH + DRAINTUBE® GAZ Solution implemented on the existing floor A proven complete solution for over 30 years. Easy and efficient connection of drain pipes network thanks to the T-Connect system. Can be used in horizontal or vertical versions. Tailor-made to suit the characteristics of the project. 11 Drainage sur sites et sols

Reduction in greenhouse gas emissions The use of AFITEX geosynthetics contributes to a significant reduction in the transport impact of natural drainage materials (gravel, sand, clay) by road or rail. Combating soil pollution Using AFITEX’s drainage and waterproofing geosynthetic solutions contribute to waste containment whilst preventing pollutants from seeping into the natural water phreatic source. The installation of AFITEX geosynthetics helps to dramatically reduce the use of quarried granular materials. AFITEX geosynthetics are utilised for water protection and storage when used in lining...

EXPERTISE & ASSISTANCE Les équipes AFITEXINOV mettent tous les moyens en œuvre pour répondre efficacement aux demandes et aux besoins qui lui sont confiés. Notre Pôle Commercial et notre Pôle Technique, composés d’experts en géosynthétiques, assurent un accompagnement de qualité tout au long du projet, de la première demande à la mise en œuvre sur site. TAILORED SUPPORT Our experts support you from the very first contacts and are present throughout all stages of your project: • Collaborative project assessment. • Typical cross section of the proposed solution. • Drafting and supply of a pre-calculation...
