Data sheet - Fan coils

Product catalog summary

Overview: Aermec's FCA and FCA-R fan coil units are designed for suspended ceiling installations and are part of the EUROVENT Certification Programme. These units are available in various sizes and configurations, including 4-tube versions and models with remote control capabilities.

Specifications:

Available in 6 sizes: FCA 34, 38, 44, 64, 84, and 124.
4-tube versions with double coil.
FCA-R version includes an electronic card for controlling fan speed, season changeover, valves, drain pump, and electric heater.
4-speed mixed flow fan unit (axial + centrifugal) for quiet operation.
Standard grille dimensions fit standard ceiling panel sizes.
Continuous fan operation to prevent air layering.
Prearranged for fresh air intake and air conditioning in adjacent rooms.

Features:

Electrostatically pre-charged, self-bearing filter with low pressure drops.
Washable and fire-resistant air filter (class 2, UL 900).
Standard valve for cooling coil and compliance with safety regulations.

Accessories:

GLA and GLA-R: Air delivery/return grills, necessary as units are consigned without grills.
FMT10 and FMT20: Electronic thermostats for fan coils with simplified controls.
KFA: Metal flange for fresh air intake or discharge into an adjoining room.
Various control panels (PCT2, PCT3, PCT4, PX, PXAE, PXAR) for different system configurations.
RXC, RXCE, RXCB, RXCEB: Electric heating elements for single and double fan units.
SIT3 and SIT5: Thermostat interface cards for setting up a fan coil network.
VHA1: Three-way motorized valve for heating coil in 4-tube systems.

Technical Data:

Performance values are based on specific conditions for cooling and heating.
Power supply: 1~ 230V 50Hz.
Detailed technical specifications for each model, including heating and cooling capacities, water flow rates, air flow rates, sound pressure levels, and power consumption.

Dimensions and Weight:

Dimensions and weight vary by model, with detailed measurements provided for each.

Notes:

The technical data are not binding, and Aermec reserves the right to make modifications to improve the product.

Catalog excerpts

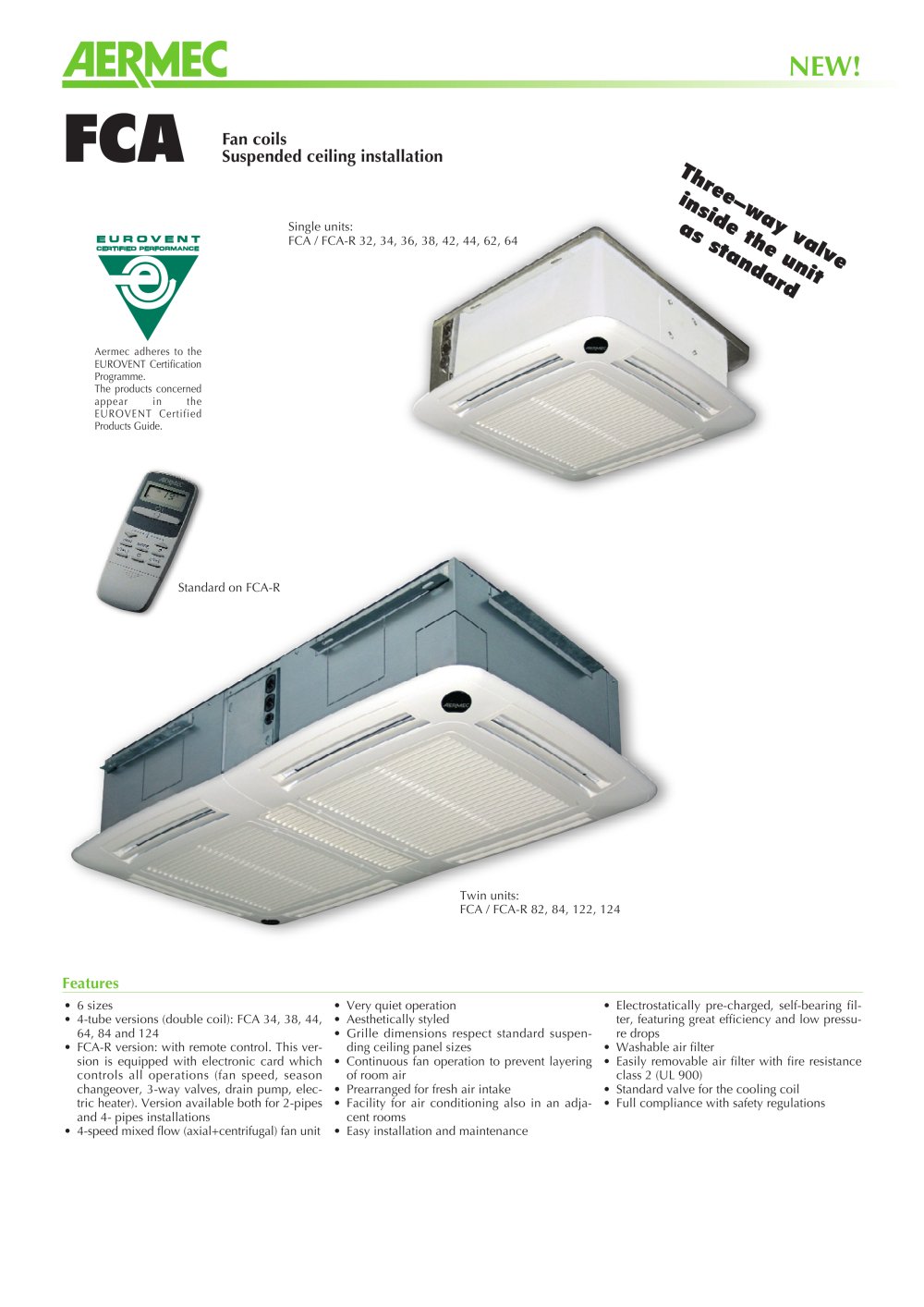

Single units: FCA / FCA-R 32, 34, 36, 38, 42, 44, 62, 64 Twin units:FCA / FCA-R 82, 84, 122, 124 > Aermec adheres to theEUROVENT CertificationProgramme. The products concernedappear in theEUROVENT Certified Products Guide. Standard on FCA-R > 6 sizesՕ4-tube versions (double coil): FCA 34, 38, 44,64, 84 and 124FCA-R version: with remote control. This ver-sion is equipped with electronic card which controls all operations (fan speed, season changeover, 3-way valves, drain pump, elec- tric heater). Version available both for 2-pipes and 4- pipes installationsՕ4-speed mixed flow (axial+centrifugal) fan unit Very quiet operationՕAesthetically styled Grille dimensions respect standard suspen-ding ceiling panel sizesՕContinuous fan operation to prevent layeringof room airPrearranged for fresh air intake ՕFacility for air conditioning also in an adja-cent roomsEasy installation and maintenance ՕElectrostatically pre-charged, self-bearing fil-ter, featuring great efficiency and low pressu- re dropsWashable air filter ՕEasily removable air filter with fire resistanceclass 2 (UL 900)Standard valve for the cooling coil ՕFull compliance with safety regulations >

Open the catalog to page 1

Mod. FCA 32 - 32R34 - 34R36 - 36R38 - 38R42 - 42R44 - 44R W (max.)Heating capacityW (med.)W (min.)Heating capacity*W (max.) 500038008375355095003850 450034507160320080003550 380030005690280064003100 (E) 290038004950355056503850 Water flow ratel/h Water pressure dropskPa W (max.) (E) 430327720305817331 Cooling capacityW (med.)W (min.) W (max.) (E) 8.016.017.014.022.016.0 Sensible cooling capacityW (med.)W (min.)Water flow ratel/h Water pressure dropskPa 190019003500350041004100 (E) 170017003170317033503350 m 150015002710271029502950 180016203040304036003600 160016002650265029502950 135013502160216024002400...

Open the catalog to page 3

FCA - FCA-R 32 - 34 - 36 - 38 - 42 - 44 - 62 - 64 Mod. FCA32 - 32R34 - 34R36 - 36R38 - 38R42 - 42R44 - 44R62 - 62R64 - 64R Weightkg1616.51717.51717.51818.5 FCA - FCA-R 82 - 84 - 122 - 124 Mod. FCA82 - 82R84 - 84R122 - 122R124 - 124R Weightkg34343636 > Aermec S.p.A. Cod.: SFCAUY.13 / 0702 Via Roma, 44 - 37040 Bevilacqua (VR) - Italy Tel. +39 04 42 63 31 11 - Telefax +39 044 29 35 66 www.aermec.com The technical data in this document are not binding.Aermec S.p.A. reserves the right to make whatever modifications it deems necessary to improve the product at any time. size="-1">
