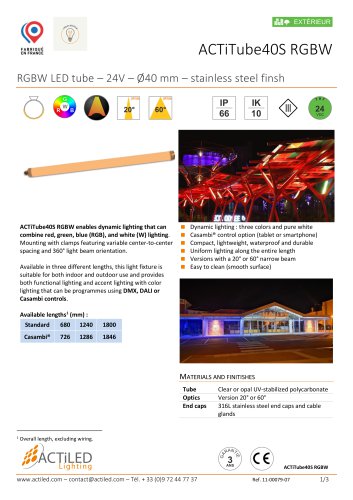

ACTiTube40S RGBW RGBW LED tube – 24V – Ø40 mm – stainless steel finsh ACTiTube40S RGBW enables dynamic lighting that can combine red, green, blue (RGB), and white (W) lighting. Mounting with clamps featuring variable center-to-center spacing and 360° light beam orientation. Available in three different lengths, this light fixture is suitable for both indoor and outdoor use and provides both functional lighting and accent lighting with color lighting that can be programmes using DMX, DALI or Casambi controls. Dynamic lighting : three colors and pure white Casambi® control option (tablet or smartphone) Compact, lightweight, waterproof and durable Uniform lighting along the entire length Versions with a 20° or 60° narrow beam Easy to clean (smooth surface) MATERIALS AND FINITISHES Tube Optics End caps Clear or opal UV-stabilized polycarbonate Version 20° or 60° 316L stainless steel end caps and cable glands Overall length, excluding wiring.

Electrical specifications Other specifications Electrical power 19 W/m Glow-wire resistance 850°C Power supply 24V DC (constant voltage) Fire rating Ml Electrical class Class III Compliance EN 60598 Photometric specifications Photometric distributions Luminous flux (white 780 lm/m CRI (white) >80 Color temperature white) 3000K, 4000K LDT files are available for each product versions. Calculation of luminous flux ■ Luminous flux (lm) = Efficiency (lm/W) x Power (W) Luminous flux for the white component = 105 lm/W (opal tube without optics) Example of calculation for ACTiTube40S1200-RGB830-21-PCO...

References1253003000 Description 316L stainless steel collar with screw. width 20 mm. Stainless steel hex socket head srew with washer. Mounting hole 4,5 mm 316L stainless steel collar with vandal-resistant screw. width 20mm. Tamper-resistant stainless steel screw with washer. Mounting hole 4,5mm Adjustable stainless steel arme. Wall mounted plate with 3 mounting points. Adjustable reach from 190mm to 250mm. 1253009000 Adjustable stainless steel arm with support leg. Wall mounted plate with 3 upper mounting points and 1 lower mounting point. Adjustable reach from 190mm to 300mm. See control offers...
