ACTiTube40S outdoor

Product catalog summary

Product Overview:
The ACTiTube40S is a versatile LED tube light designed for outdoor accent, pathway, and architectural lighting. It features a stainless steel finish and is available in four lengths (461 mm, 680 mm, 1240 mm, 1800 mm) with direct 230V connection, eliminating the need for an external driver. The light offers a 360° beam adjustment and is available in a 20° spot beam version.

Materials and Finishes:
The tube is made from UV-stabilized polycarbonate, available in clear or opal finishes. Optional colored gel filters can be used. End caps are made from 316L stainless steel.

Photometric Characteristics:
The luminous flux is 3570 lm/m with a CRI greater than 84 and color temperatures of 2700K, 3000K, and 4000K. The lifespan is 50,000 hours (L90B10), and it poses no photobiological risk (Group 0).

Electrical Specifications:
Power consumption ranges from 13 W/m to 33 W/m, with a power supply of 230V +/-10%, 50/60 Hz. The product is classified as Electrical Class II with no inrush current and supports phase cut-off dimming.

Mechanical Specifications:
The product is available in non-linkable and linkable versions, with weights ranging from 0.36 Kg to 1.33 Kg depending on the model. Chain connections should not exceed 1000W or 150 meters in length.

Installation and Mounting:
The ACTiTube40S connects directly to a 230 VAC power source. Stainless steel clamps and brackets are available for mounting. Surge arresters are recommended for outdoor installations.

Options and Accessories:
Custom-length wiring, colored filters, and various mounting accessories are available. Surge arresters and dimming options (Push to Dim or DALI protocol) are also offered.

Order References:
Products can be customized with different color temperatures, diffusers, and power options. Example reference: ACTiTube40S1200C-830-32.5-PCO indicates a linkable, 1255 mm length, 3000K, 32W, Opal polycarbonate tube.

Catalog excerpts

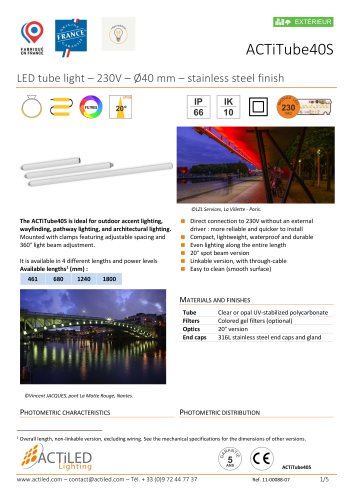

The ACTiTube40S is ideal for outdoor accent lighting, wayfinding, pathway lighting, and architectural lighting. Mounted with clamps featuring adjustable spacing and 360° light beam adjustment. It is available in 4 different lengths and power levels ■ Direct connection to 230V without an external driver : more reliable and quicker to install ■ Compact, lightweight, waterproof and durable ■ Even lighting along the entire length ■ 20° spot beam version ■ Linkable version, with through-cable ■ Easy to clean (smooth surface) Tube Clear or opal UV-stabilized polycarbonate Filters Colored gel filters (optional) End caps 316L stainless steel end caps and gland Photometric distribution Photometric characteristics 1 Overall length, non-linkable version, excluding wiring. See the mechanical specifications for the dimensions of other versions.

Open the catalog to page 1

Photobiogical risk Group 0 (no risk) Electrical specifications Power consumption Opal polycarbonate tube Clear polycarbonate tube Clear polycarbonate tube with 20° beam angle ©TMC Innovation,©Agence ON,Port Haliguen 2 Typical luminous flux at full power, 4000K, opal tube. 3 Maximum temperature for full-power versions. Higher for lower power ratings : please contact us. 4 FWHM (Full Width at Half Maximum).

Open the catalog to page 2

Mechanical specifications Non-linkable tubular 1 cable gland internal cable entry, 2 cable glands CHAIN CONNECTIONThe total power of a chain-connected tubular lighting system must not exceed 1000W.The maximum length of the chain connection, including the cable, must not exceed 150 m. Wiring Non-linkable tubular lights Supplied unwired. See wiring options. Linkable tubular lights Supplied unwired. See wiring options. 2X 1,5 mm2 cable runs through the interior of the tube. With the factory wiring option, cable exit is available at the rear of the tubular housing, either centered or offset (see...

Open the catalog to page 3

INSTALLATION AND MOUNTING ACTiTube40S tubular lights connect directly to a 230 VAC power source via a cable that must be connected after opening the end cap. We recommend using a 2x1,5mm² cable with a jacket diameter between 6 and 10 mm to ensure a proper seal at the cable gland. The tubular components are secured using stainless steel clamps, which are available as accesories. The overall height when mounted with a clamp is 54 mm. Brackets are also available as accessories. See the document « Guide d’installation du tubulaire ACTiTube40S ». When installed outdoors, the light fixture must be...

Open the catalog to page 4

Order references Opal polycarbonate Clear polycarbonate Clear polycarbonate, 20° beam angle 5 Dark blue filter Light blue filter Green filter Linkable, length 1255 mm, 3000K, power 32W, Opal polycarbonate tube 5 The PC20 option (20° lens) is available only for the lower-power versions (value highlighted in red in the table) of the 600mm, 1200mm, and 1800mm tubular models.
