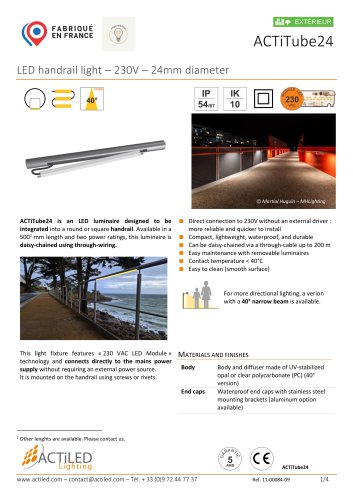

ACTiTube24 LED handrail light – 230V – 24mm diameter ACTiTube24 is an LED luminaire designed to be  Direct connection to 230V without an external driver : integrated into a round or square handrail. Available in a more reliable and quicker to install 5001 mm length and two power ratings, this luminaire is  Compact, lightweight, waterproof, and durable daisy-chained using through-wiring.  Can be daisy-chained via a through-cable up to 200 m  Easy maintenance with removable luminaires  Contact temperature < 40°C  Easy to clean (smooth surface) For more directional lighting, a verion with a 40° narrow beam is available. This light fixture features « 230 VAC LED Module » technology and connects directly to the mains power supply without requiring an external power source. It is mounted on the handrail using screws or rivets. MATERIALS AND FINISHES Body Body and diffuser made of UV-stabilized opal or clear polycarbonate (PC) (40° version) Waterproof end caps with stainless steel mounting brackets (aluminum option available) Other lenghts are available. Please contact us.

Electrical characteristics Other characteristics These efficiencies apply to the luminaire installed in the handrail. Calculation example for ACTiTube24A500C-840-6.5-PCO-LR42-EP2.5 : 89 (lm/W) X 6,5 (W) = 578 lm Mechanical characteristics Other lengths available : Please contact us 2 Maximum temperature for full-power versions. Higher for lower power ratings : please contact us. 3 Typical luminous flux at 4000K , for the two available power levels with tubular lighting in the handrail. 4 FWHM (Full Width at Half Maximum) - width at half-height

MECHANICAL INSTALLATION The ACTiTube24 features mounting brackets that allow it to be secured to round, square, or channel-shaped rails using blind rivets (available as an accessory) or screws. Recommended channel section : 26 x 26 mm Cutout in the rail for each light fixture : approximately 25 mm x L+2 mm (Cutting and drilling template provided based on rail size and thickness). Covers to conceal wiring areas (to be determined on a case-by-case basis) Fastened with blind rivets. Fastened with screws at the bottom of the groove. WIRING Non-linkable tubular lights Cable : 2X 0,75mm² Length = 2,5m...

Waterproof connectors : 230V/16A - 2 Poles - IP68 - Male and Female -Dimensions : 20 x 65mm and 20 x 71mm - Quick-release 1/4 -turn locking mechanism - Supplied unassembled Straight connector with dual inputs : 230V/16A - 2 Poles - IP54 - Screw terminals 2x0,5/2,5mm2 - Dimensions : 80 x 25mm - Cable conduit 09mm -supplied unwired Straight connector with dual inputs : 230V/16A - 2 Poles - IP54 - Screw terminals 2x0,5/2,5mm2 - Dimensions : 80 x 25mm - Cable conduit 06mm -Supplied unwired Waterproof junction box : Pre-filled with neutral insulating gel - IP66 -Connectors not inclued - Dimensions...
