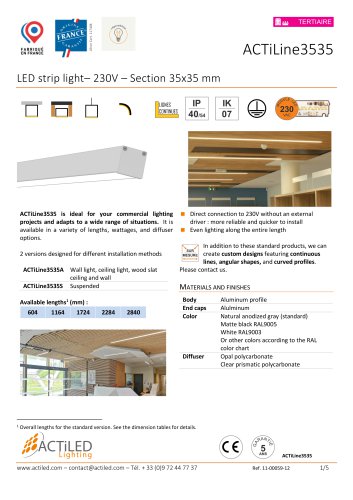

Miii TERTIAIRE ACTiLine3535 is ideal for your commercial lighting projects and adapts to a wide range of situations. It is available in a variety of lengths, wattages, and diffuser options. 2 versions designed for different installation methods ACTiLine3535A Wall light, ceiling light, wood slat ceiling and wall ACTiLine3535S Suspended ■ Direct connection to 230V without an external driver : more reliable and quicker to install ■ Even lighting along the entire length ^ 71 In addition to these standard products, we can mesure create custom designs featuring continuous lines, angular shapes, and curved profiles. Body Aluminum profile Color Natural anodized gray (standard) Matte black RAL9005 White RAL9003 Or other colors according to the RAL color chart Diffuser Opal polycarbonate Clear prismatic polycarbonate 1 Overall lengths for the standard version. See the dimension tables for details.

Other specifications Electrical specifications References Width Height Length Weight Continuous lines or angular shapes are possible : see the section at the end of this document. 2 Maximum temperature for full-power versions. Higher for lower power ratings : please contact us. 3 Typical luminous flux at full power, 4000K, opal diffuser, anodized gray profile.

Wall mounted and ceiling light Ceiling mount with wooden slat Suspension mount Flat-head screws only Flush installation with the wood slats using a hanger suited to your project (accessory) ® Please contact us with the technical specifications of your project. Suspension mounting with cables References Description 1255007010 Hanging cord with adjustable rope (single unit) Black or white hanging cords : please contact us. Various models to suit your Ceiling and wall-mounted brackets with wooden slats Dual Lock® 3M 35x25x5mm - Press-fit fastener - High-1251002xxx performance acrylic adhesive 1255048021...

Custom cable : specify length x in meters Cable outlet on one end Natural anodized gray profile, surface mounted, length 1164 mm, 4000K, power 32W, opal polycarbonate diffuser, 1 meter cable with rear outlet, IP40 Custom project - continuous lines and angular shapes Long ramps Available lengths start at 3400 mm and increase in 560 mm4 Each ramp can consist of : • A starting element (with a 230V connection) • None, one, or more intermediate sections (with or without connections) • A end section (with or without a connection) • The sections are connected using mechanical connectors • The light...

230 VAC 230 VAC Mechanical r:innr--:tor Cosing cap Connec!1r\g wlrgs 23GVAC power cable Schematic diagram of a long ramp (side view) showing its various components to be assembled. Angular light fixtures © This information provides an overview of the available options ; however, for an accurate quote, please be sure to contact us and provide us with the technical requirements of your project.
