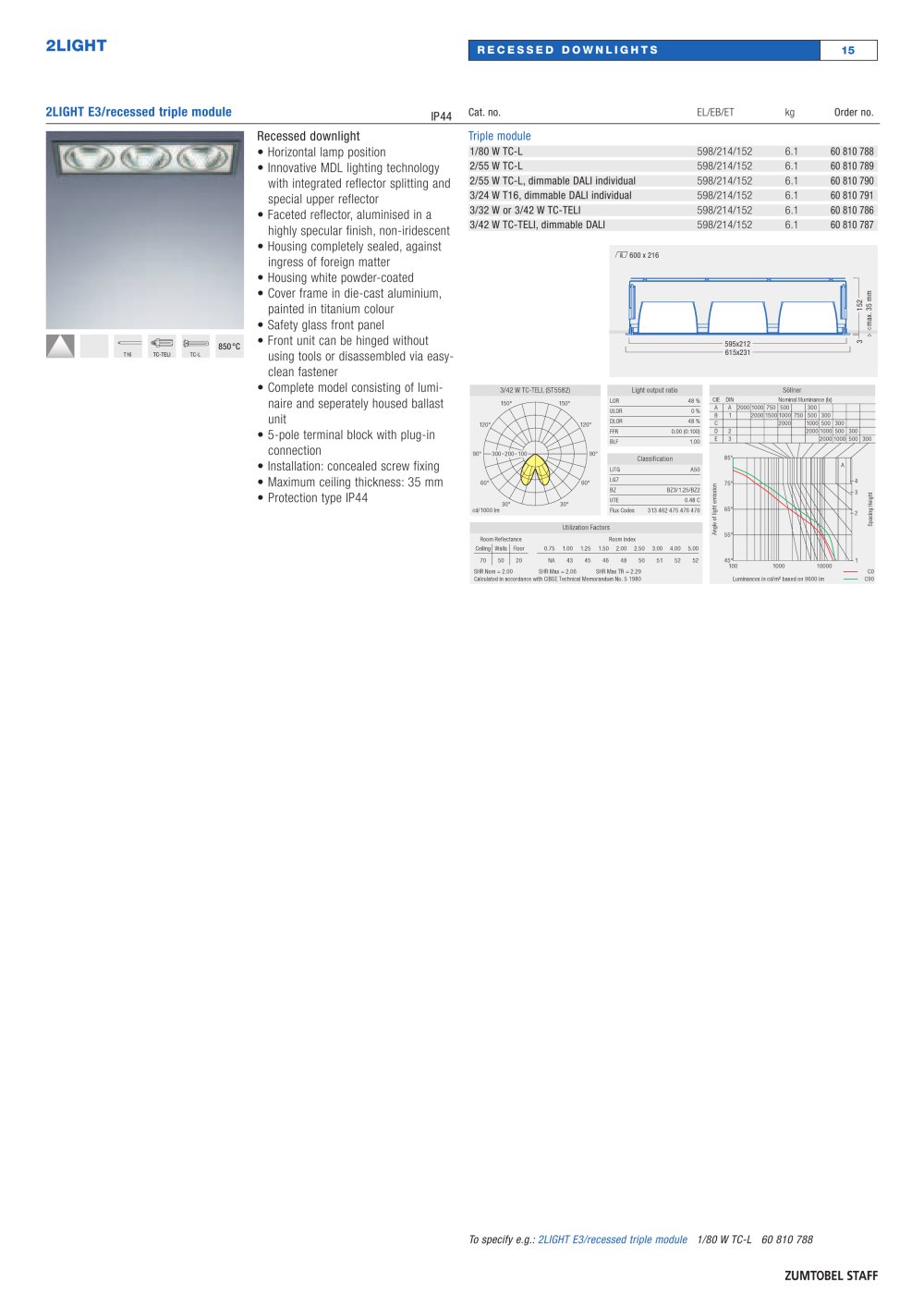

2LIGHT

RECESSED DOWNLIGHTS 15

2LIGHT E3/recessed triple module

i

Cat.no. EL/EB/ETkg Order no.

Recessed downlight

Triple module

• Horizontal lamp position • Innovative MDL lighting technologywith integrated reflector splitting and special upper reflector• Faceted reflector,aluminised in a highly specular finish,non-iridescent• Housing completely sealed,againstingress of foreign matter• Housing white powder-coated • Cover frame in die-cast aluminium,painted in titanium colour• Safety glass front panel • Front unit can be hinged withoutusing tools or disassembled via easy- clean fastener• Complete model consisting of lumi-naire and seperately housed ballastunit• 5-pole terminal block with plug-inconnection• Installation:concealed screw fixing• Maximum ceiling thickness:35 mm•Protection type IP44

1/80 W TC-L 598/214/1526.1 60 810 788 2/55 W TC-L 598/214/1526.1 60 810 789 2/55 W TC-L,dimmable DALI individual 598/214/1526.1 60 810 790 3/24 W T16,dimmable DALI individual 598/214/1526.1 60 810 791 3/32 W or 3/42 W TC-TELI 598/214/1526.1 60 810 786 3/42 W TC-TELI,dimmable DALI 598/214/1526.1 60 810 787
600 x 216 615x231 152 max.35 mm 850°C 595x212 3 T16 TC-TELI TC-L

To specify e.g.:2LIGHT E3/recessed triple module 1/80 W TC-L 60 810 788
