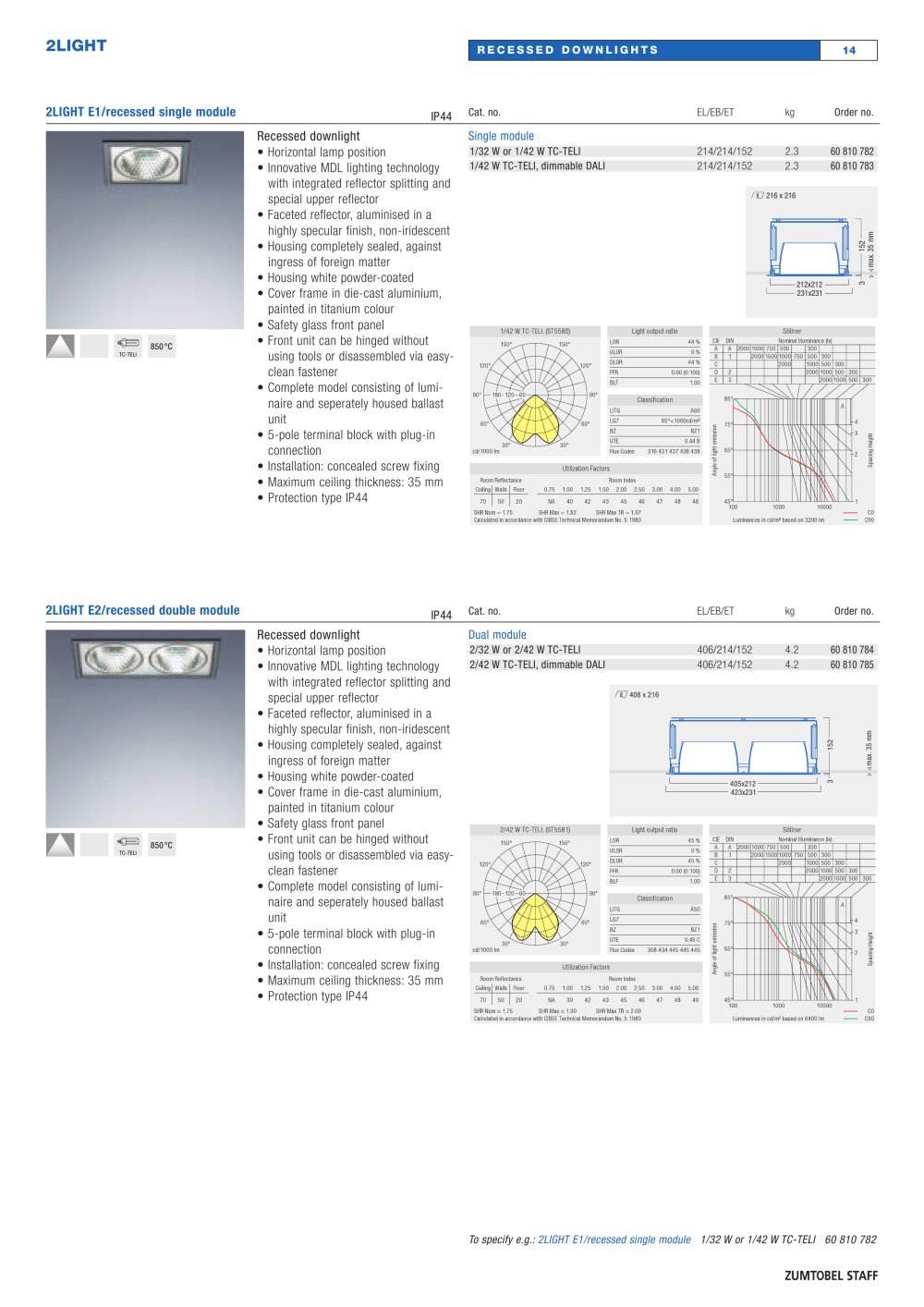

2LIGHT

RECESSED DOWNLIGHTS 14

2LIGHT E1/recessed single module

i

Cat.no. EL/EB/ETkg Order no.

Recessed downlight

Single module

• Horizontal lamp position • Innovative MDL lighting technologywith integrated reflector splitting and special upper reflector• Faceted reflector,aluminised in a highly specular finish,non-iridescent• Housing completely sealed,againstingress of foreign matter• Housing white powder-coated • Cover frame in die-cast aluminium,painted in titanium colour• Safety glass front panel • Front unit can be hinged withoutusing tools or disassembled via easy- clean fastener• Complete model consisting of lumi-naire and seperately housed ballastunit• 5-pole terminal block with plug-inconnection• Installation:concealed screw fixing• Maximum ceiling thickness:35 mm•Protection type IP44

1/32 W or 1/42 W TC-TELI 214/214/1522.3 60 810 782 1/42 W TC-TELI,dimmable DALI 214/214/1522.3 60 810 783
216 x 216 max.35 mm 212x212231x231 3152 850°C TC-TELI

2LIGHT E2/recessed double module

i

Cat.no. EL/EB/ETkg Order no.

Recessed downlight

Dual module

• Horizontal lamp position• Innovative MDL lighting technologywith integrated reflector splitting and special upper reflector• Faceted reflector,aluminised in a highly specular finish,non-iridescent• Housing completely sealed,againstingress of foreign matter• Housing white powder-coated • Cover frame in die-cast aluminium,painted in titanium colour• Safety glass front panel• Front unit can be hinged withoutusing tools or disassembled via easy- clean fastener• Complete model consisting of lumi-naire and seperately housed ballast unit• 5-pole terminal block with plug-inconnection• Installation:concealed screw fixing• Maximum ceiling thickness:35 mm•Protection type IP44

2/32 W or 2/42 W TC-TELI 406/214/1524.2 60 810 784 2/42 W TC-TELI,dimmable DALI 406/214/1524.2 60 810 785
408 x 216 423x231 152 max.35 mm 405x212 3 850°C TC-TELI

To specify e.g.:2LIGHT E1/recessed single module 1/32 W or 1/42 W TC-TELI 60 810 782
