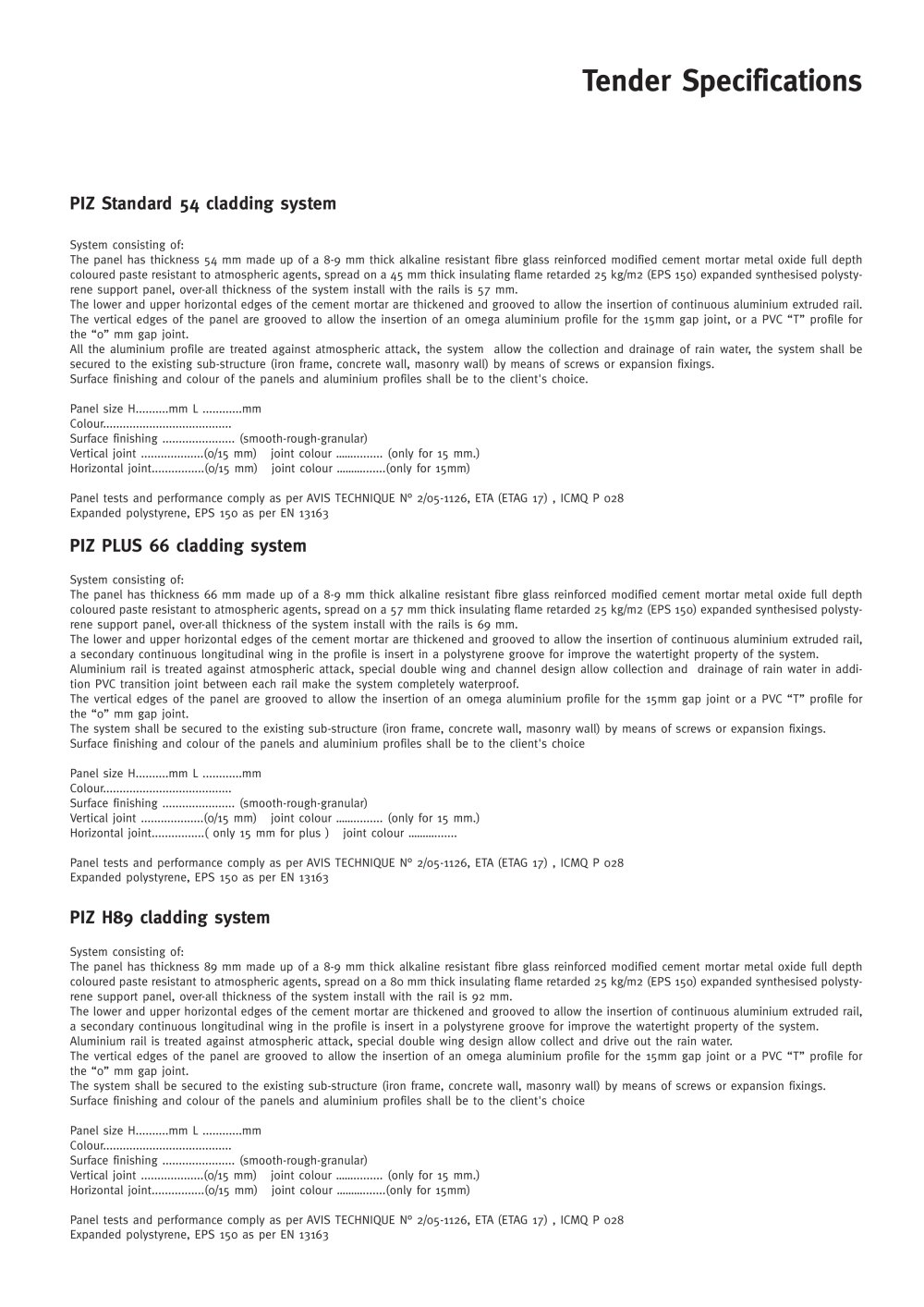

| System consisting of: The panel has thickness 54 mm made up of a 8-9 mm thick alkaline resistant fibre glass reinforced modified cement mortar metal oxide full depth coloured paste resistant to atmospheric agents, spread on a 45 mm thick insulating flame retarded 25 kg/m2 (EPS 150) expanded synthesised polystyrene support panel, over-all thickness of the system install with the rails is 57 mm. The lower and upper horizontal edges of the cement mortar are thickened and grooved to allow the insertion of continuous aluminium extruded rail. The vertical edges of the panel are grooved to allow the insertion of an omega aluminium profile for the 15mm gap joint, or a PVC "T" profile for the "0" mm gap joint. All the aluminium profile are treated against atmospheric attack, the system allow the collection and drainage of rain water, the system shall be secured to the existing sub-structure (iron frame, concrete wall, masonry wall) by means of screws or expansion fixings. Surface finishing and colour of the design panels and aluminium profiles shall be to the client's choice. Panel size H..........mm L............mm Colour....................................... Surface finishing ......................(smooth-rough-granular) Vertical joint...................(0/15 mm) joint colour............... (only for 15 mm.) Horizontal joint................(0/15 mm) joint colour................(only for 15mm) Panel tests and performance comply as per AVIS TECHNIQUE N° 2/05-1126, ETA (ETAG 17) , ICMQ P 028 Expanded polystyrene, EPS 150 as per EN 13163 PIZ PLUS 66 cladding system System consisting of: The panel has thickness 66 mm made up of a 8-9 mm thick alkaline resistant fibre glass reinforced modified cement mortar metal oxide full depth coloured paste resistant to atmospheric agents, spread on a 57 mm thick insulating flame retarded 25 kg/m2 (EPS 150) expanded synthesised polystyrene support panel, over-all thickness of the system install with the rails is 69 mm. The lower and upper horizontal edges of the cement mortar are thickened and grooved to allow the insertion of continuous aluminium extruded rail, a secondary continuous longitudinal wing in the profile is insert in a polystyrene groove for improve the watertight property of the system. Aluminium rail is treated against atmospheric attack, special double wing and channel design design allow collection and drainage of rain water in addition PVC transition joint between each rail make the system completely waterproof. The vertical edges of the panel are grooved to allow the insertion of an omega aluminium profile for the 15mm gap joint or a PVC "T" profile for the "0" mm gap joint. The system shall be secured to the existing sub-structure (iron frame, concrete wall, masonry wall) by means of screws or expansion fixings. Surface finishing and colour of the panels and aluminium profiles shall be to the client's choice Panel size H..........mm L ............mm Colour....................................... Surface finishing ......................(smooth-rough-granular) Vertical joint...................(0/15 mm) joint colour............... (only for 15 mm.) Horizontal joint................( only 15 mm for plus ) joint colour................ Panel tests and performance comply as per AVIS TECHNIQUE N° 2/05-1126, ETA (ETAG 17) , ICMQ P 028 Expanded polystyrene, EPS 150 as per EN 13163 |
