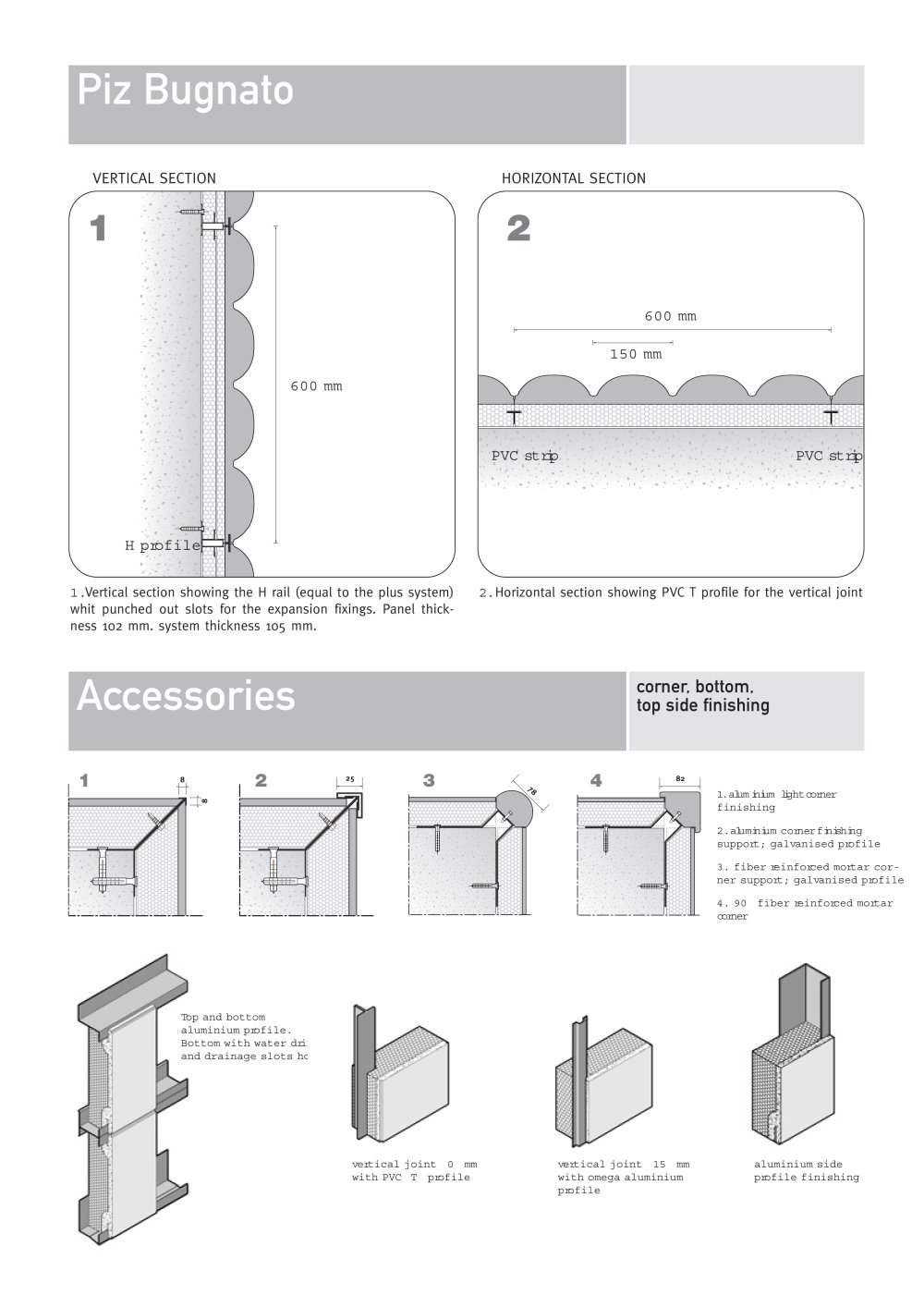

Piz Bugnato

VERTICAL SECTION

HORIZONTAL SECTION

X l

6 00 mm

150 mm

6 00 mm

PVC strpPVC strip

H profile

1.Vertical section showing the H rail (equal to the plus system) whit punched out slots for the expansion fixings. Panel furniture thickness 102 mm. system thickness 105 mm.

2. Horizontal section showing PVC T profile for the vertical joint

Accessories

corner, bottom, top side finishing

1. alum iniim light coiner finishing

2. aluminium comerfiijshiig support; galvanisedprofile

3. fiber reinforced mortar corner support; galvanised profile

4. 90 fiber reinforced mortar corner
