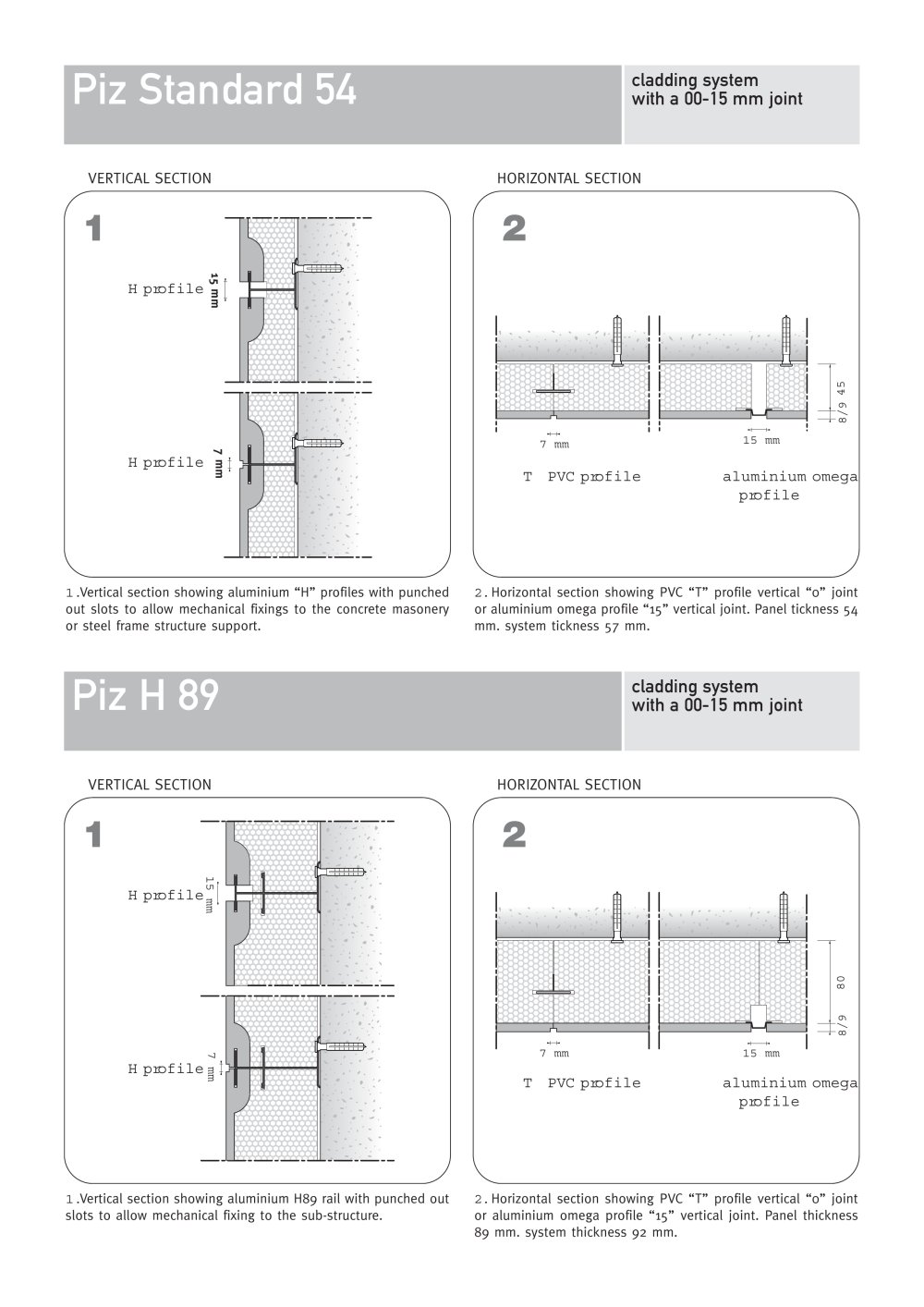

Piz Standard 54

cladding system with a 00-15 mm joint

VERTICAL SECTION HORIZONTAL SECTION

1.Vertical section showing aluminium "H" profiles with punched 2. Horizontal section showing PVC "T" profile vertical "0" joint out slots to allow mechanical fixings to the concrete masonery or aluminium omega profile "15" vertical joint. Design panel tickness 54 or steel frame building structure support. mm. system tickness 57 mm.

Piz H 89

cladding system with a 00-15 mm joint

VERTICAL SECTION HORIZONTAL SECTION

1.Vertical section showing aluminium H89 rail with punched out 2. Horizontal section showing PVC "T" profile vertical "0" joint slots to allow mechanical fixing to the sub-structure. or aluminium omega profile "15" vertical joint. Panel thickness

89 mm. system thickness 92 mm.
