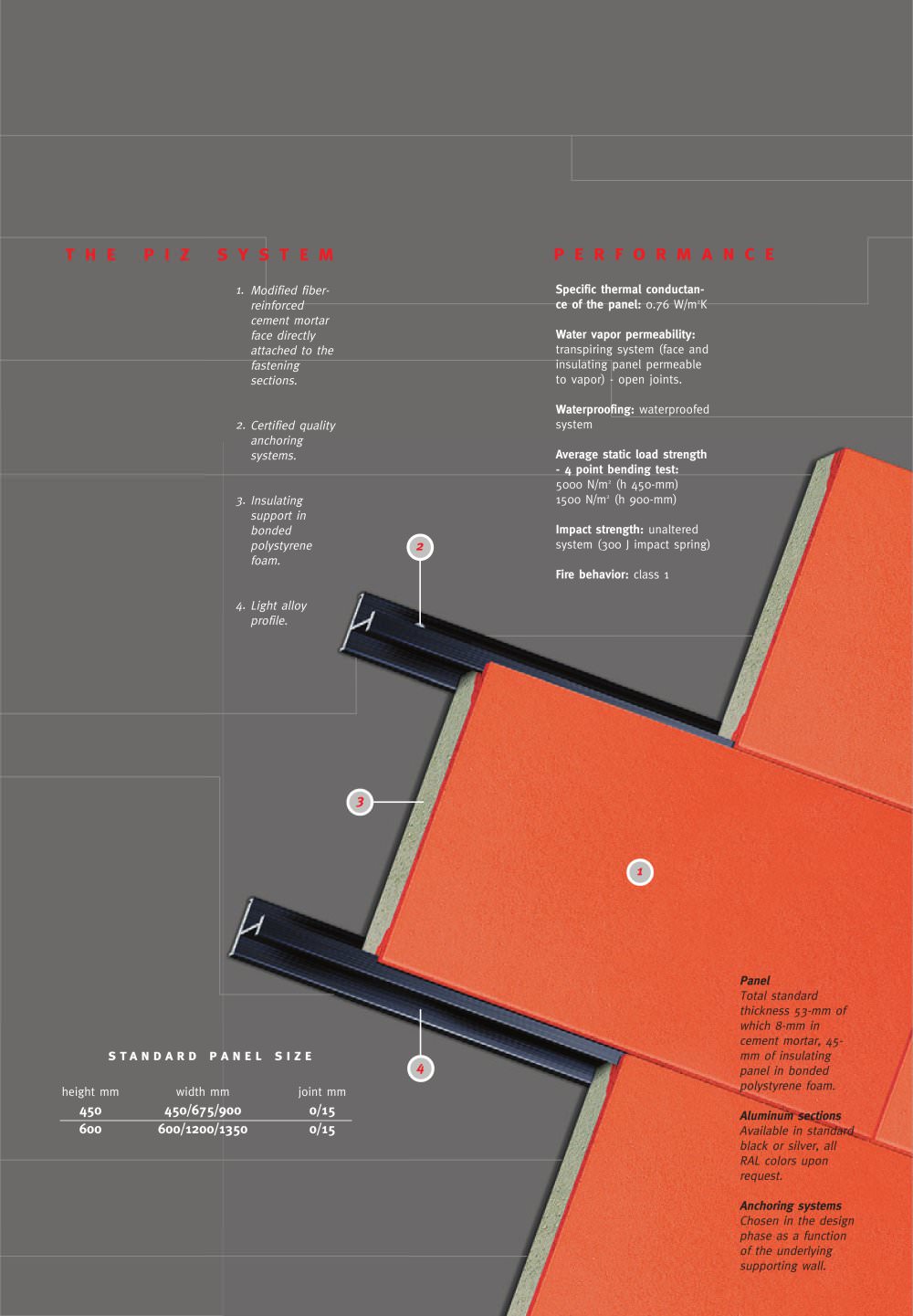

| | | Specific thermal conductance of the garden panel: 0.76 W/m2K | | |
| | | 1. Modified fiber-reinforced cement mortar face directly attached to the fastening sections. | | |
| | | |
| | | Water vapor permeability: transpiring system (face and insulating panel permeable to vapor) - open joints. | | |
| | | |
| | | |
| | | Waterproofing: waterproofed system | | |
| | | 2. Certified quality anchoring systems. | | |
| | | |
| | | Average static load strength - 4 point bending test: 5000 N/m2 (h 450-mm) 1500 N/m2 (h 900-mm) | | |
| | | |
| | | 3- Insulating support in bonded polystyrene foam- | | |
| | | J | | |
| | | |
| | | Impact strength: unaltered system (300 J impact spring) | | |
| | | |
| | | |
| | | |
| | | i | | |
| | | 4. Light alloy profile. | | |
| | | |
| | | |
| | | Panel Total standard thickness 53-mm of which 8-mm in cement mortar, 45mm of insulating panel in bonded polystyrene foam. Aluminum sections Available in standard black or silver, all RAL colors upon request. Anchoring systems phase as a function of the underlying supporting wall. | | |
| | | standard panel size | | |
| | | |
| | | width mm 450/675/900 | | |
| | | height mm 450 | | |
| | | |
| | | 600/1200/1350 | | |
| | | 600 | | |
| | | |
| | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
