Xpelair XID Centrifugal metal inline fans - 84 Pages

®Xpelair

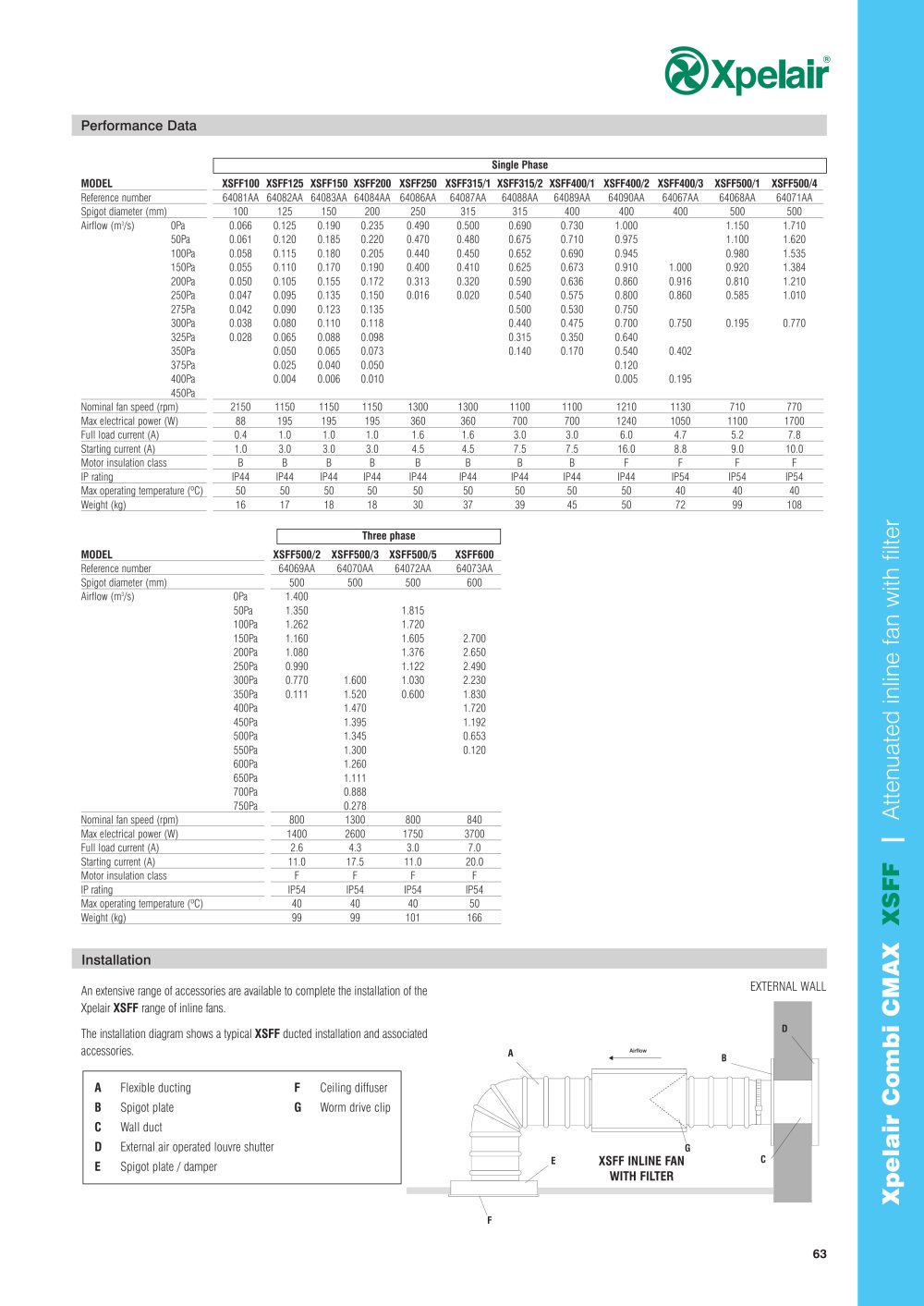

Performance Data

Single Phase

MODEL XSFF100 XSFF125 XSFF150 XSFF200 XSFF250 XSFF315/1 XSFF315/2 XSFF400/1 XSFF400/2 XSFF400/3 XSFF500/1 XSFF500/4 Reference number 64081AA 64082AA 64083AA 64084AA 64086AA 64087AA 64088AA 64089AA 64090AA 64067AA 64068AA 64071AA Spigot diameter (mm) 100 125 150 200 250 315 315 400 400 400 500 500 Airflow (m3/s) 0Pa 0.066 0.125 0.190 0.235 0.490 0.500 0.690 0.730 1.000 1.150 1.710 50Pa 0.061 0.120 0.185 0.220 0.470 0.480 0.675 0.710 0.975 1.100 1.620 100Pa 0.058 0.115 0.180 0.205 0.440 0.450 0.652 0.690 0.945 0.980 1.535 150Pa 0.055 0.110 0.170 0.190 0.400 0.410 0.625 0.673 0.910 1.000 0.920 1.384 200Pa 0.050 0.105 0.155 0.172 0.313 0.320 0.590 0.636 0.860 0.916 0.810 1.210 250Pa 0.047 0.095 0.135 0.150 0.016 0.020 0.540 0.575 0.800 0.860 0.585 1.010 275Pa 0.042 0.090 0.123 0.135 0.500 0.530 0.750 300Pa 0.038 0.080 0.110 0.118 0.440 0.475 0.700 0.750 0.195 0.770 325Pa 0.028 0.065 0.088 0.098 0.315 0.350 0.640 350Pa 0.050 0.065 0.073 0.140 0.170 0.540 0.402 375Pa 0.025 0.040 0.050 0.120 400Pa 0.004 0.006 0.010 0.005 0.195 450Pa Nominal fan speed (rpm) 2150 1150 1150 1150 1300 1300 1100 1100 1210 1130 710 770 Max electrical power (W) 88 195 195 195 360 360 700 700 1240 1050 1100 1700 Full load current (A) 0.4 1.0 1.0 1.0 1.6 1.6 3.0 3.0 6.0 4.7 5.2 7.8 Starting current (A) 1.0 3.0 3.0 3.0 4.5 4.5 7.5 7.5 16.0 8.8 9.0 10.0 Motor insulation class B B B B B B B B F F F F IP rating IP44 IP44 IP44 IP44 IP44 IP44 IP44 IP44 IP44 IP54 IP54 IP54 Max operating temperature (°C) 50 50 50 50 50 50 50 50 50 40 40 40 Weight (kg) 16 17 18 18 30 37 39 45 50 72 99 108 1 Three phase ] MODEL XSFF500/2 XSFF500/3 XSFF500/5 XSFF600 Reference number 64069AA 64070AA 64072AA 64073AA Spigot diameter (mm) 500 500 500 600 Airflow (m3/s) 0Pa 1.400 50Pa 1.350 1.815 100Pa 1.262 1.720 150Pa 1.160 1.605 2.700 200Pa 1.080 1.376 2.650 250Pa 0.990 1.122 2.490 300Pa 0.770 1.600 1.030 2.230 350Pa 0.111 1.520 0.600 1.830 400Pa 1.470 1.720 450Pa 1.395 1.192 500Pa 1.345 0.653 550Pa 1.300 0.120 600Pa 1.260 650Pa 1.111 700Pa 0.888 750Pa 0.278 Nominal fan speed (rpm) 800 1300 800 840 Max electrical power (W) 1400 2600 1750 3700 Full load current (A) 2.6 4.3 3.0 7.0 Starting current (A) 11.0 17.5 11.0 20.0 Motor insulation class F F F F IP rating IP54 IP54 IP54 IP54 Max operating temperature (°C) 40 40 40 50 Weight (kg) 99 99 101 166

CD -I—» -C -I—» CD

<3 CD -I—» CO CD -I—» 3

IL iL X

Installation An extensive range of accessories are available to complete the installation of the Xpelair XSFF range of inline fans. The installation diagram shows a typical XSFF ducted installation and associated accessories.

1

EXTERNAL WALL

D

IM E o o

A Flexible ducting F Ceiling diffuser B Spigot plate G Worm drive clip C Wall duct D External air operated louvre shutter E Spigot plate / damper

"io

a X

F

63

1. P. 1

51. P. 51
