®Xpelair

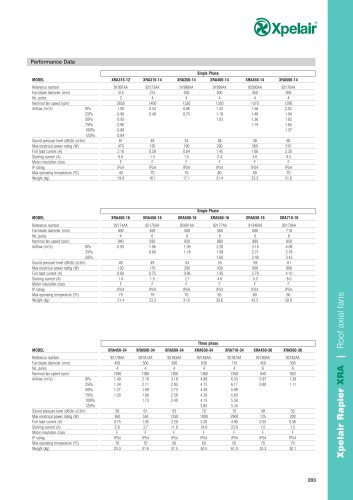

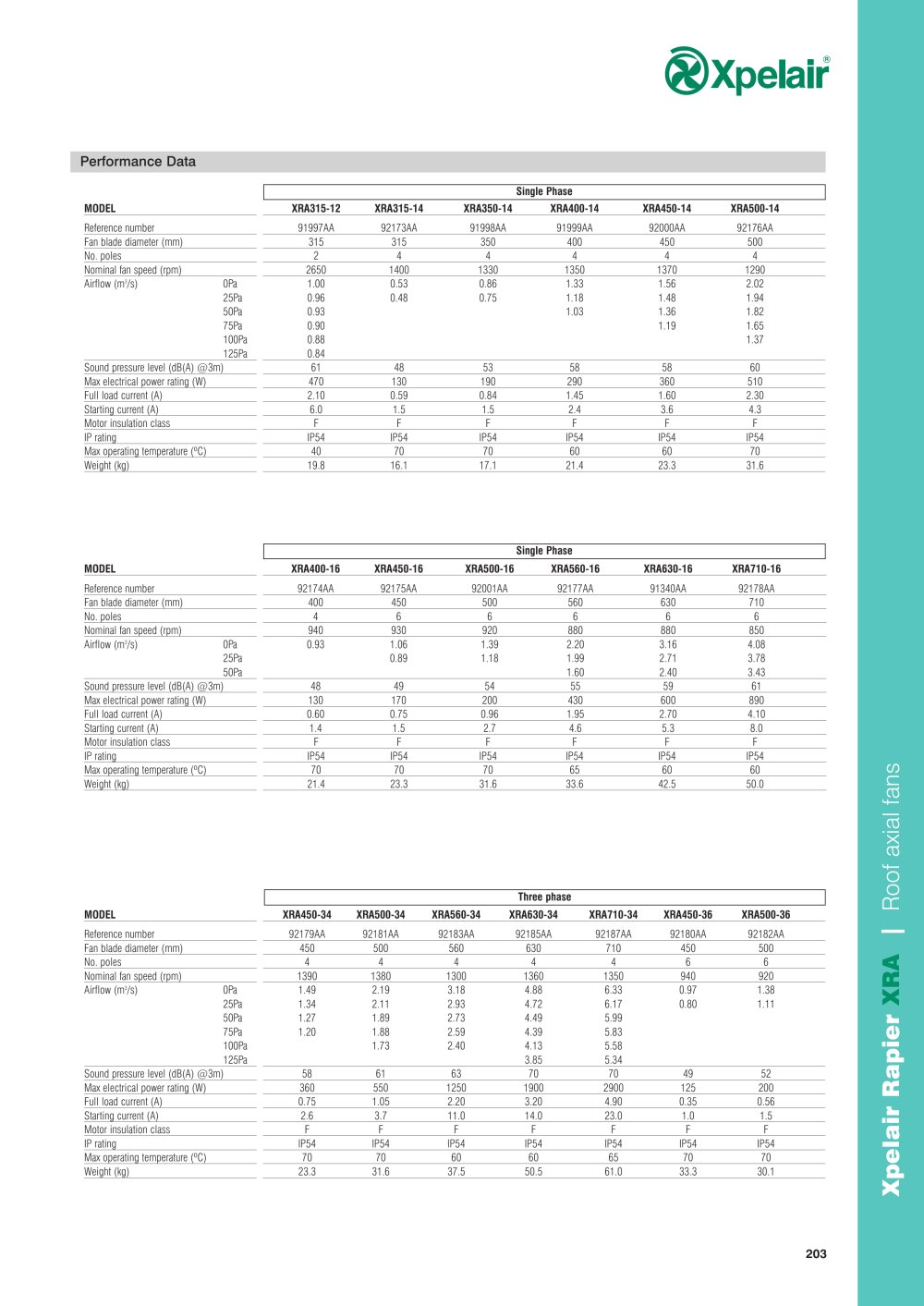

Performance Data

Single Phase

MODEL	XRA315-12	XRA315-14	XRA350-14	XRA400-14	XRA450-14	XRA500-14
Reference number	91997AA	92173AA	91998AA	91999AA	92000AA	92176AA
Fan blade diameter (mm)	315	315	350	400	450	500
No. poles	2	4	4	4	4	4
Nominal fan speed (rpm)	2650	1400	1330	1350	1370	1290
Airflow (m3/s) 0Pa	1.00	0.53	0.86	1.33	1.56	2.02
25Pa	0.96	0.48	0.75	1.18	1.48	1.94
50Pa	0.93	1.03	1.36	1.82
75Pa	0.90	1.19	1.65
100Pa	0.88	1.37
125Pa	0.84
Sound pressure level (dB(A) @3m)	61	48	53	58	58	60
Max electrical power rating (W)	470	130	190	290	360	510
Full load current (A)	2.10	0.59	0.84	1.45	1.60	2.30
Starting current (A)	6.0	1.5	1.5	2.4	3.6	4.3
Motor insulation class	F	F	F	F	F	F
IP rating	IP54	IP54	IP54	IP54	IP54	IP54
Max operating temperature (°C)	40	70	70	60	60	70
Weight (kg)	19.8	16.1	17.1	21.4	23.3	31.6

Single Phase

MODEL	XRA400-16	XRA450-16	XRA500-16	XRA560-16	XRA630-16	XRA710-16
Reference number	92174AA	92175AA	92001AA	92177AA	91340AA	92178AA
Fan blade diameter (mm)	400	450	500	560	630	710
No. poles	4	6	6	6	6	6
Nominal fan speed (rpm)	940	930	920	880	880	850
Airflow (m3/s) 0Pa	0.93	1.06	1.39	2.20	3.16	4.08
25Pa	0.89	1.18	1.99	2.71	3.78
50Pa	1.60	2.40	3.43
Sound pressure level (dB(A) @3m)	48	49	54	55	59	61
Max electrical power rating (W)	130	170	200	430	600	890
Full load current (A)	0.60	0.75	0.96	1.95	2.70	4.10
Starting current (A)	1.4	1.5	2.7	4.6	5.3	8.0
Motor insulation class	F	F	F	F	F	F
IP rating	IP54	IP54	IP54	IP54	IP54	IP54
Max operating temperature (°C)	70	70	70	65	60	60
Weight (kg)	21.4	23.3	31.6	33.6	42.5	50.0

05 5

"05

o oc

Three phase

MODEL	XRA450-34	XRA500-34	XRA560-34	XRA630-34	XRA710-34	XRA450-36	XRA500-36
Reference number	92179AA	92181AA	92183AA	92185AA	92187AA	92180AA	92182AA
Fan blade diameter (mm)	450	500	560	630	710	450	500
No. poles	4	4	4	4	4	6	6
Nominal fan speed (rpm)	1390	1380	1300	1360	1350	940	920
Airflow (m3/s) 0Pa	1.49	2.19	3.18	4.88	6.33	0.97	1.38
25Pa	1.34	2.11	2.93	4.72	6.17	0.80	1.11
50Pa	1.27	1.89	2.73	4.49	5.99
75Pa	1.20	1.88	2.59	4.39	5.83
100Pa	1.73	2.40	4.13	5.58
125Pa	3.85	5.34
Sound pressure level (dB(A) @3m)	58	61	63	70	70	49	52
Max electrical power rating (W)	360	550	1250	1900	2900	125	200
Full load current (A)	0.75	1.05	2.20	3.20	4.90	0.35	0.56
Starting current (A)	2.6	3.7	11.0	14.0	23.0	1.0	1.5
Motor insulation class	F	F	F	F	F	F	F
IP rating	IP54	IP54	IP54	IP54	IP54	IP54	IP54
Max operating temperature (°C)	70	70	60	60	65	70	70
Weight (kg)	23.3	31.6	37.5	50.5	61.0	33.3	30.1

■m

(G OC

"io

203
