Xpelair directory 2008/09
194Pages

{{requestButtons}}

Catalog excerpts

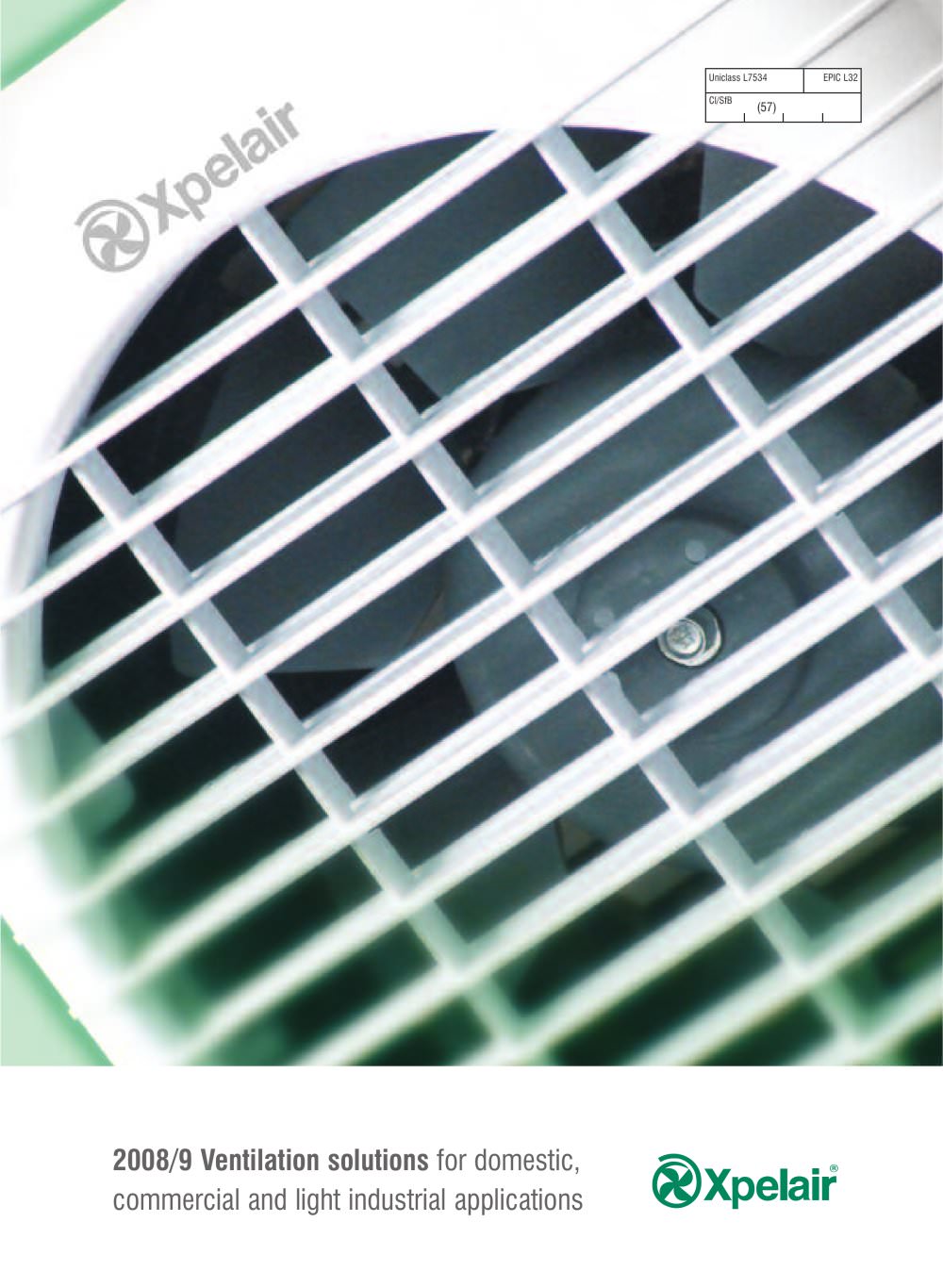

Xpelair directory 2008/09 - 1

Uniclass L7534Cl/SfBEPIC L32 (57) 2008/9 Ventilation solutions for domestic, commercial and light industrial applications >

Open the catalog to page 1
Xpelair directory 2008/09 - 2

For over fifty years, ventilationsolutions Xpelair has been designing and manufacturing for domestic,commercial and industrialapplications. > 2 size="-1">

Open the catalog to page 2
Xpelair directory 2008/09 - 5

Page Number626466-757678828486 TypeMechanical Mechanical Mechanical System ductingDucting systemPositive InputMechanical PassiveExtractExtractVentilationVentilation (PIV) VentilationAir-inputVentilation (MEV)Ventilation (MEV)and Heat and Heat Recovery (MVHR)Recovery (MVHR) > Page Number9092949698100 Fan TypeAxialAxialAxial AxialAxialKitchen CanopiesFor Commercial Sensors, Switches & Accessories see pages 100 - 103 > Page Number108110112112114116118120 TypeAir Fan heaterFan heaterPlinthOver doorCirculation Air cleanerAir cleaner conditionerheaterheaterfan > Page Number124126128130132134136...

Open the catalog to page 5
Xpelair directory 2008/09 - 6

Axial or Centrifugal? So, we know the volume of air to be extracted per hour and if it is wall, window or ceiling fitting. Axial fans such as Xpelair DX100 are most appropriate for extraction directly to the outside through a wall or window. However, if the window or wall faces a prevailing wind such as in coastal areas, exposed hills or high rise applications, a centrifugal fan which has a higher pressure performance is more suited to overcome these outside conditions. Centrifugal fans are ideal for flexible ducted applications or smooth bore ducting for longer distances. Choose an Xpelair...

Open the catalog to page 6
Xpelair directory 2008/09 - 7

SELV (Safety Extra Low Voltage) fans What does it all mean? Bathrooms and showers are areas of increased electrical hazard as defined by the IEE Wiring Regulations (16th Edition) BS 7671: 2001 When fitting ventilation products in Zones 1 and 2, a water ingress protection rating of IPX4 or higher is required for the installed product. It is essential that the electrician also maintains IPX4 integrity at the cable entry. Most Xpelair DX100 and Premier products are tested to IPX5 which exceeds this. For complete peace of mind a range ofXpelair DX100 SELV and Premier SELV fans fulfil the...

Open the catalog to page 7
Xpelair directory 2008/09 - 8

Zone 1 - is limited by: 1.The upper plane of Zone 0 and the horizontal place 2.25m above the floor,and2a.By the vertical plane(s) circumscribingthe bath tub or shower basin and includes the space below the bath tub or shower basin where that space is accessible without the use of a tool, or 2b.For a shower without a basin and with ademountable shower head able to move around in use, the vertical plane(s) at a radius of 1.2m from the water outlet at the wall, or2c.For a shower without a basin and with ashower head which is not demountable, the vertical plane(s) at a radius 0.60m from the...

Open the catalog to page 8
Xpelair directory 2008/09 - 10

Bathroom and ShowerRooms Fans for wall, windowand ceiling installations > More moisture is produced inbathrooms than anywhere else in your home. Bathrooms and shower rooms arerelatively cool areas. Moisture from hot water when showering, bathing and washing is quickly absorbed into the air, which warms rapidly increasing further its capacity to hold water vapour. The hard surfaces of the bathroom tiling, mirrors, painted surfaces and windows change temperature far more slowly and, being cooler than the air, form water droplets seen as ֑misted up mirrors and windows. This warm ёwet air...

Open the catalog to page 10
Xpelair directory 2008/09 - 18

At Zero Static Pressure* Speed SettingsExtract PerformanceNoise dB(A) @ 3mPower (W) Intermittent Ventilationl/sm > 3 /h Kitchen60l/s216m > 3 /h via integral pullcord55.831W Utility30l/s108m > 3 /h via integral pullcord39.98.4W Bathroom15l/s54m > 3 /h via integral pullcord22.74.9W Sanitary Room6l/s22m > 3 /h via remote switch (not supplied)20.84.2W Humidity Controlled intermittent Ventilation +manual over-ride Kitchen60l/s216m > 3 /h Off. Humidity. pullcord55.831W Bathroom15l/s108m > 3 /h 216m > 3 /h Off. Humidity. pullcord22.74.9W Intermittent Ventilation - Internal Rooms Kitchen60l/s216m >...

Open the catalog to page 18
Xpelair directory 2008/09 - 20

Premier DX200 & CF20 Key features > centrifugal fans. The extensive range of accessories offers the flexibility to achieve almost any ducting configuration in particularly tight spaces. Assembly is easy using push fit flatchannel connectors and the system is held to the wall or ceiling using quick- fit support clips. The ducting can be terminated in a conventional wall grille or a choice of horizontal or soldier course airbricks, and is then simply concealed behind plasterboard.Some applications call for traditionalgalvanised sheet steel ducting. For these applications The Range > Profile...

Open the catalog to page 20
Xpelair directory 2008/09 - 21

ProductProduct RefDescriptionDimensionsRef. No. ProductProduct RefDescriptionDimensionsRef. No. FMDFlat ducting 230 x 2589758AA XFDFlat channel duct 1m234 x 2991104AAFlat channel duct 1.5m234 x 2991105AA 2.4 metre lengthFMH90Horizontal 90 bend230 x 2589759AA Flat channel duct 2m234 x 2991106AAXFCFlat channel connector234 x 2991107AA FMTBTransition/air brick230 x 2589760AA XFH90Horizontal 90ں bend 234 x 2991108AA FMPPlenum box230 x 2589761AA XFH45Horizontal 45 bend 234 x 2991109AA FMV90Vertical 90ں bend230 x 2589762AA XFV90Vertical 90 bend234 x 2991110AA FMH45Horizontal 45ں bend 230 x...

Open the catalog to page 21
Xpelair directory 2008/09 - 23

DX100Ref. 90839AW Single speed axial unit ՕOperated by a remote switch or sensor(In a bathroom normally a separate pullcord or the lighting circuit)Includes universal mounting kit ՕColour: White DX100TRef. 90841AW Single speed axial unit with timer ՕTimer triggered by a remote switch - usuallythe lighting circuitAdjustable timer (2-20mins) ՕIncludes universal mounting kit Colour: White DX100HPRef. 90843AW ՕSingle speed axial unit with humidistat and pullcordTimer function adjustable (2-20mins) ՕAutomatic On/Off operation by integral humidity sensor, adjustable from 50-90% RH Pullcord On...

Open the catalog to page 23
Xpelair directory 2008/09 - 29

CT100TRef. 91237AW Centrifugal panel fanwith timer ՕConnected to the room wiring circuit. Provides a preset timed overrun (3-15mins) after the light has been switched offՕCan be installed at any angle. On indicator light. ՕSlim fascia with bellmouth and fingerguard 100mm duct spigot ՕMaintenance free motor with sealed for life bearings and safety thermal overload protectionColour: White CT100 Ref. 91236AW ՕCentrifugal panel fan Can be installed at any angle ՕOperated by remote switch or sensor.Inabathroom usually a pullcord or wired to the lighting circuit On indicator light ՕSlim fascia...

Open the catalog to page 29
