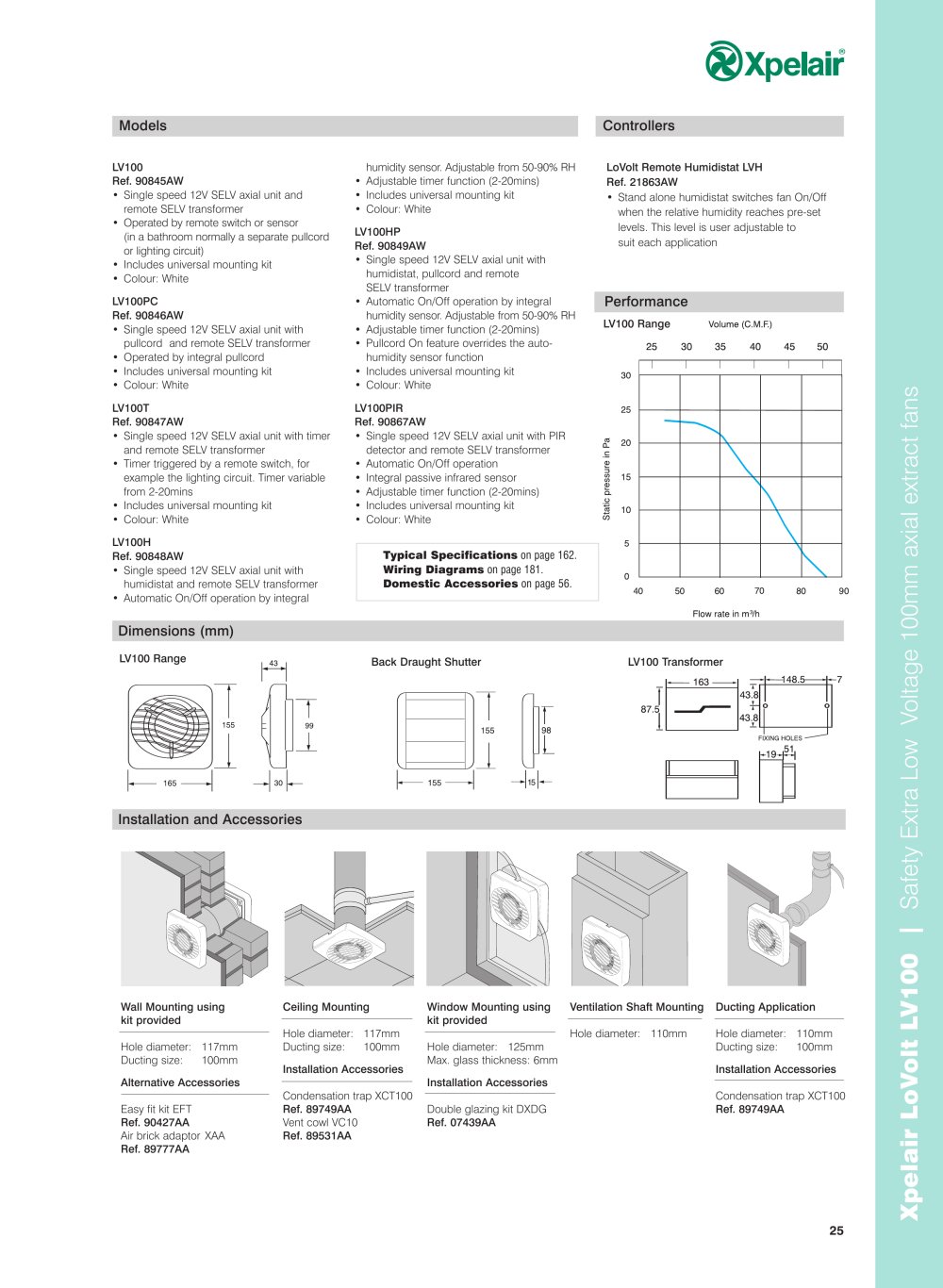

| LV100 Ref. 90845AW • Single speed 12V SELV axial unit and remote SELV transformer • Operated by remote switch or sensor (in a bathroom normally a separate pullcord or lighting circuit) • Includes universal mounting kit • Colour: White LV100PC Ref. 90846AW • Single speed 12V SELV axial unit with pullcord and remote SELV transformer • Operated by integral pullcord • Includes universal mounting kit • Colour: White LV100T Ref. 90847AW • Single speed 12V SELV axial unit with timer and remote SELV transformer • Timer triggered by a remote switch, for example the lighting circuit. Timer variable from 2-20mins • Includes universal mounting kit • Colour: White LV100H Ref. 90848AW • Single speed 12V SELV axial unit with humidistat and remote SELV transformer • Automatic On/Off operation by integral Dimensions (mm) LV100 Range | humidity sensor. Adjustable from 50-90% RH • Adjustable timer function (2-20mins) • Includes universal mounting kit • Colour: White LV100HP Ref. 90849AW • Single speed 12V SELV axial unit with humidistat, pullcord and remote SELV transformer • Automatic On/Off operation by integral humidity sensor. Adjustable from 50-90% RH • Adjustable timer function (2-20mins) • Pullcord On feature overrides the auto-humidity sensor function • Includes universal mounting kit • Colour: White LV100PIR Ref. 90867AW • Single speed 12V SELV axial unit with PIR detector and remote SELV transformer • Automatic On/Off operation • Integral passive infrared sensor • Adjustable timer function (2-20mins) • Includes universal mounting kit • Colour: White | LoVolt Remote Humidistat LVH Ref. 21863AW • Stand alone humidistat switches fan On/Off when the relative humidity reaches pre-set levels. This level is user adjustable to suit each application | ||||||||||||||||||||||||||||||
| Performance LV100 Range | ||||||||||||||||||||||||||||||||
| Volume (C.M.F.) | ||||||||||||||||||||||||||||||||
| 25 30 35 40 45 50 ~i-1-1-1-1-r | ||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||
| CO H—» X CD | ||||||||||||||||||||||||||||||||
| S 15 | ||||||||||||||||||||||||||||||||
| CO X CO | ||||||||||||||||||||||||||||||||
| Typical Specifications on page 162. Wiring Diagrams on page 181. Domestic Accessories on page 56. | ||||||||||||||||||||||||||||||||
| E E o o | ||||||||||||||||||||||||||||||||
| 50 60 70 Flow rate In m^h | ||||||||||||||||||||||||||||||||
| CD O) CO -I—» | ||||||||||||||||||||||||||||||||
| Back Draught Shutter | LV100 Transformer 163- | |||||||||||||||||||||||||||||||
| o _J CO -I—» X LU | ||||||||||||||||||||||||||||||||
| -I—» | ||||||||||||||||||||||||||||||||
| O O | ||||||||||||||||||||||||||||||||
| Hole diameter: 117mm Ducting size: 100mm Installation Accessories Condensation trap XCT100 Ref. 89749AA Vent cowl VC10 Ref. 89531AA | Hole diameter: | Hole diameter: 110mm Ducting size: 100mm Installation Accessories Condensation trap XCT100 Ref. 89749AA | ||||||||||||||||||||||||||||||
| Hole diameter: Ducting size: | Hole diameter: 125mm Max. glass thickness: 6mm Installation Accessories Double glazing kit DXDG Ref. 07439AA | |||||||||||||||||||||||||||||||
| 117mm 100mm | ||||||||||||||||||||||||||||||||
| I o | ||||||||||||||||||||||||||||||||
| Alternative Accessories Easy fit kit EFT Ref. 90427AA Air brick adaptor XAA Ref. 89777AA | ||||||||||||||||||||||||||||||||
| "(5 a X | ||||||||||||||||||||||||||||||||
| 25 | ||||||||||||||||||||||||||||||||
-
