| | | ^Xpelair | | |
| | | |

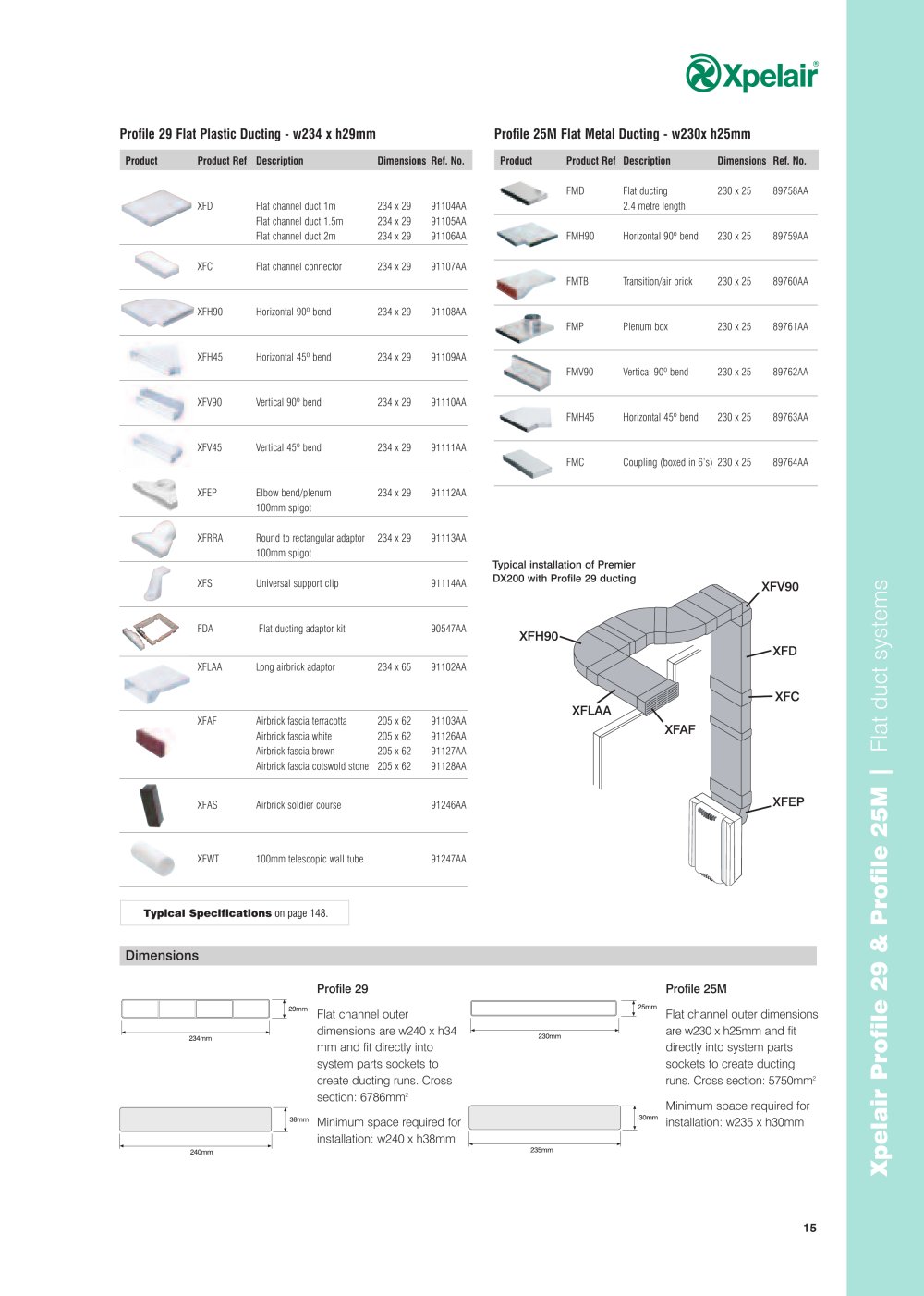

| | | Profile 29 Flat Plastic Ducting - w234 x h29mm | | Profile 25M Flat Metal Ducting - w230x h25mm | | |
| | | |
| | | | | | | | | | | | | Product | Product Ref | Description | Dimensions Ref. No. | | | | O | 1 XFD | Flat channel duct 1m Flat channel duct 1.5m Flat channel duct 2m | 234 x 29 234 x 29 234 x29 | 91104AA 91105AA 91106AA | | | | | XFC | Flat channel connector | 234 x29 | 91107AA | | | | | »XFH90 | Horizontal 90° bend | 234 x29 | 91108AA | | | | | XFH45 | Horizontal 45° bend | 234 x29 | 91109AA | | | | | XFV90 | Vertical 90° bend | 234 x29 | 91110AA | | | | | XFV45 | Vertical 45° bend | 234 x29 | 91111AA | | | | | XFEP | Elbow bend/plenum 100mm spigot | 234 x29 | 91112AA | | | | | XFRRA | Round to rectangular adaptor 100mm spigot | 234 x29 | 91113AA | | | | | XFS | Universal support clip | | 91114AA | | | | | FDA | Flat ducting adaptor kit | | 90547AA | | | | | XFLAA | Long airbrick adaptor | 234 x 65 | 91102AA | | | | > | XFAF | Airbrick fascia terracotta Airbrick fascia white Airbrick fascia brown Airbrick fascia cotswold stone | 205 x 62 205 x 62 205 x62 205 x62 | 91103AA 91126AA 91127AA 91128AA | | | | t | XFAS | Airbrick soldier course | | 91246AA | | | | | XFWT | 100mm telescopic wall tube | | 91247AA | | | | | | | | | | | | | | | | | | | | | | Product | Product Ref | Description | Dimensions | Ref. No. | | | | | FMD | Flat ducting 2.4 metre length | 230 x25 | 89758AA | | | | | » FMH90 | Horizontal 90° bend | 230 x25 | 89759AA | | | | s. | ' FMTB | Transition/air brick | 230 x25 | 89760AA | | | | ■ id | FMP | Plenum box | 230 x25 | 89761AA | | | | | FMV90 | Vertical 90° bend | 230 x25 | 89762AA | | | | v. | FMH45 | Horizontal 45° bend | 230 x25 | 89763AA | | | | | FMC | Coupling (boxed in 6's) 230 x25 | 89764AA | | | | | | | | | | | | |
| | | |
| | | Typical installation of Premier DX200 with Profile 29 ducting | | |
| | | XFV90 | | |
| | | |
| | | |
| | | E CD -i—» s >y s | | |
| | | XFH90 | | |
| | | |
| | | XFD | | |
| | | |
| | | |
| | | Ü Z3 ~o -I—» LL | | |
| | | XFC | | |
| | | |
| | | |
| | | 2 10 CM | | |
| | | XFEP | | |
| | | |
| | | |
| | | 0) IBM o a. | | |
| | | |
| | | Typical Specifications on page 148. | | |
| | | |
| | | |
| | | Dimensions | | |
| | | |
| | | O) CM | | |
| | | Profile 29 Flat channel outer I— dimensions are w240 x h34 l«-mm and fit directly into system parts sockets to create ducting runs. Cross section: 6786mm2 | | Profile 25M Flat channel outer dimensions -J are w230 x h25mm and fit directly into system parts sockets to create ducting runs. Cross section: 5750mm2 r Minimum space required for 30mm installation: w235xh30mm | | |
| | | |
| | | IBM o | | |
| | | |
| | | "(5 | | |
| | | |
| | | 381,11,1 Minimum space required for |_ installation: w240 x h38mm L_ | | |
| | | |
| | | |
| | | a X | | |
| | | |
| | | |
| | | 15 | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
