IKOTHERM - 6 Pages

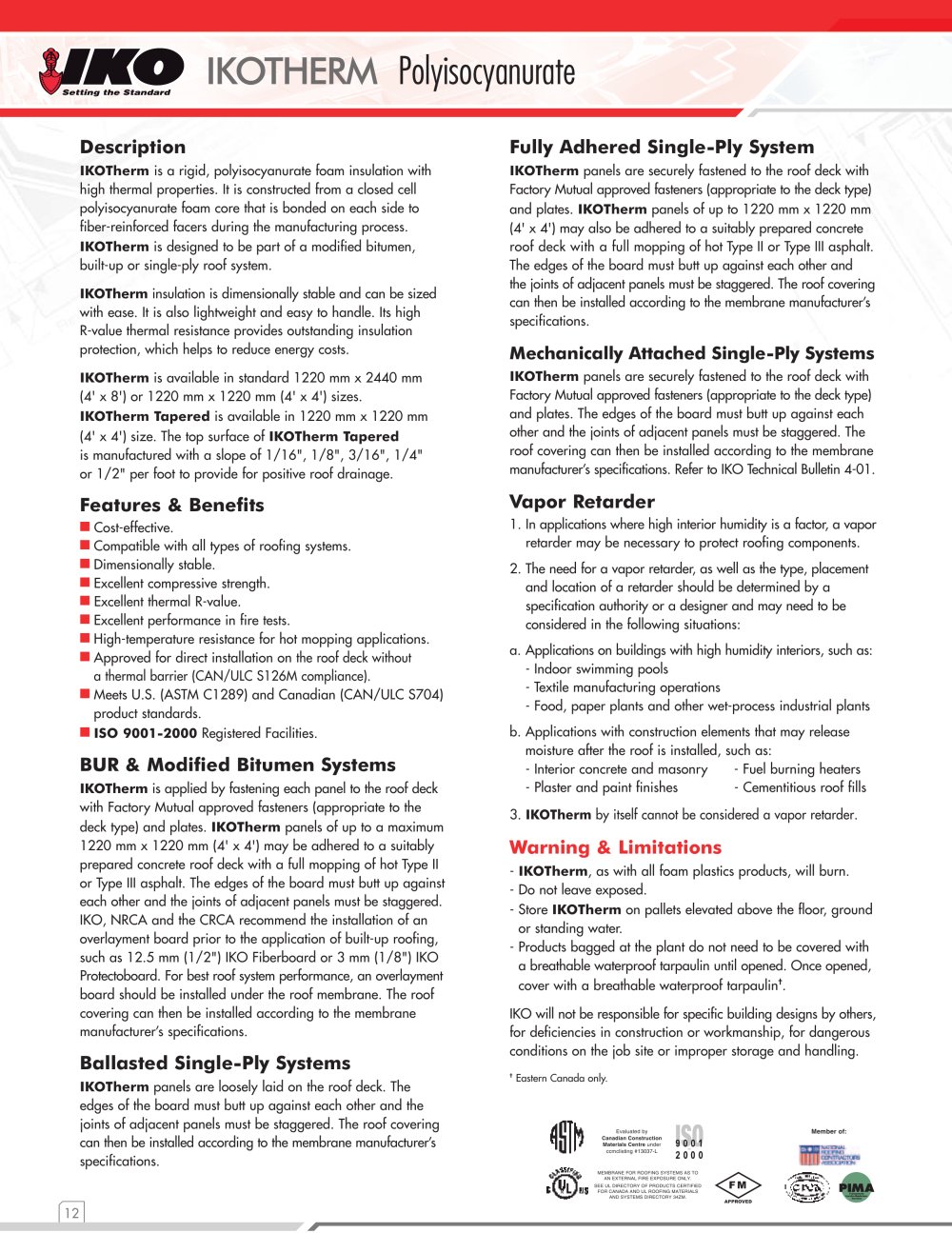

| Description IKOTherrn is a rigid, polyisocyanurate foam insulation with high thermal properties. It is constructed from a closed cell polyisocyanurate foam core that is bonded on each side to fiber-reinforced facers during the manufacturing process. IKOTherm is designed to be part of a modified bitumen, built-up or single-ply roof system. IKOTherm insulation is dimensionally stable and can be sized with ease. It is also lightweight and easy to handle. Its high R-value thermal resistance provides outstanding insulation protection, which helps to reduce energy costs. IKOTherm is available in standard 1220 mm x 2440 mm (4' x 8') or 1220 mm x 1220 mm (4' x 4') sizes. IKOTherm Tapered is available in 1220 mm x 1220 mm (4' x 4') size. The top surface of IKOTherm Tapered is manufactured with a slope of 1/16", 1/8", 3/16", 1/4" or 1/2" per foot to provide for positive roof drainage. Features & Benefits ■ Cost-effective. ■ Compatible with all types of roofing systems. ■ Dimensionally stable. ■ Excellent compressive strength. ■ Excellent thermal R-value. ■ Excellent performance in fire tests. ■ High-temperature resistance for hot mopping applications. ■ Approved for direct installation on the roof deck without a thermal barrier (CAN/ULC S126M compliance). ■ Meets U.S. (ASTM C1289) and Canadian (CAN/ULC S704) product standards. ■ ISO 9001-2000 Registered Facilities. BUR & Modified Bitumen Systems IKOTherm is applied by fastening each panel to the roof deck with Factory Mutual approved fasteners (appropriate to the deck type) and plates. IKOTherm panels of up to a maximum 1220 mm x 1220 mm (4' x 4') may be adhered to a suitably prepared concrete roof deck with a full mopping of hot Type II or Type III asphalt. The edges of the board must butt up against each other and the joints of adjacent panels must be staggered. IKO, NRCA and the CRCA recommend the installation of an overlayment board prior to the application of built-up roofing, such as 12.5 mm (1/2") IKO Fiberboard or 3 mm (1/8") IKO Protectoboard. For best roof system performance, an overlayment board should be installed under the roof membrane. The roof covering can then be installed according to the membrane manufacturer's specifications. Ballasted Single-Ply Systems IKOTherm panels are loosely laid on the roof deck. The edges of the board must butt up against each other and the joints of adjacent panels must be staggered. The roof covering can then be installed according to the membrane manufacturer's specifications. | Fully Adhered Single-Ply System IKOTherm panels are securely fastened to the roof deck with Factory Mutual approved fasteners (appropriate to the deck type) and plates. IKOTherm panels of up to 1220 mm x 1220 mm (4' x 4') may also be adhered to a suitably prepared concrete roof deck with a full mopping of hot Type II or Type III asphalt. The edges of the board must butt up against each other and the joints of adjacent panels must be staggered. The roof covering can then be installed according to the membrane manufacturer's specifications. Mechanically Attached Single-Ply Systems IKOTherm panels are securely fastened to the roof deck with Factory Mutual approved fasteners (appropriate to the deck type) and plates. The edges of the board must butt up against each other and the joints of adjacent panels must be staggered. The roof covering can then be installed according to the membrane manufacturer's specifications. Refer to IKO Technical Bulletin 4-01. Vapor Retarder 1. In applications where high interior humidity is a factor, a vapor retarder may be necessary to protect roofing components. 2. The need for a vapor retarder, as well as the type, placement and location of a retarder should be determined by a specification authority or a designer and may need to be considered in the following situations: a. Applications on buildings with high humidity interiors, such as: - Indoor swimming pools - Textile manufacturing operations - Food, paper plants and other wet-process industrial plants b. Applications with construction elements that may release moisture after the roof is installed, such as: - Interior concrete and masonry - Fuel burning heaters - Plaster and paint finishes - Cementitious roof fills 3. IKOTherm by itself cannot be considered a vapor retarder. Warning & Limitations - IKOTherm, as with all foam plastics products, will burn. - Do not leave exposed. - Store IKOTherm on pallets elevated above the floor, ground or standing water. - Products bagged at the plant do not need to be covered with a breathable waterproof tarpaulin until opened. Once opened, cover with a breathable waterproof tarpaulin*. IKO will not be responsible for specific building designs by others, for deficiencies in construction or workmanship, for dangerous conditions on the job site or improper storage and handling. * Eastern Canada only. | ||
| Evaluated by Canadian Construction n n n A Materials Centre under 9 0 0 1 | Member of; | ||
| ccmclisting #13037-L | 2 0 0 0 | ||
| MEMBRANE FOR ROOFING SYSIEMS AS IO AN EXTERNAL FIRE EXPOSURE ONLY | |||
| SEE UL DIRECTORY OF PRODUCTS CERTIFIED Ui) FOR CANADA AND UL ROOFING MATERIALS AND SYSTEMS DIRECTORY 34ZM | IMA | ||
-
P. 1
-
P. 2
IKOCommCat-010 8.qxd 1/24/08 11:02 AM Page 13 _c ^_ J IKOTHERM Polyisocyanurate AVHCFC-free IKOTherm... -
P. 3
IKOCommCat-010 8.qxd 1/24/08 11:02 AM Page 24 Thank you for considering IKO Premium Roofing products. For additional information on IKO's... -
P. 4
Description IKOTherm est un panneau isolant rigide fait de mousse de poly-isocyanurate de grande valeur thermique. Lors de la fabrication, chaque face... -
P. 5
IKOCommCatFR-010 8.qxd 1/24/08 10:54 AM Page 13 f ^_ IKOTHERM Polyisocyanurate Amerns HCFC... -
P. 6
IKOCommCatFR-010 8.qxd 1/24/08 10:54 AM Page 24 Merci d'envisager d'utiliser les revtements de toiture IKO. Pour plus de renseignements...
