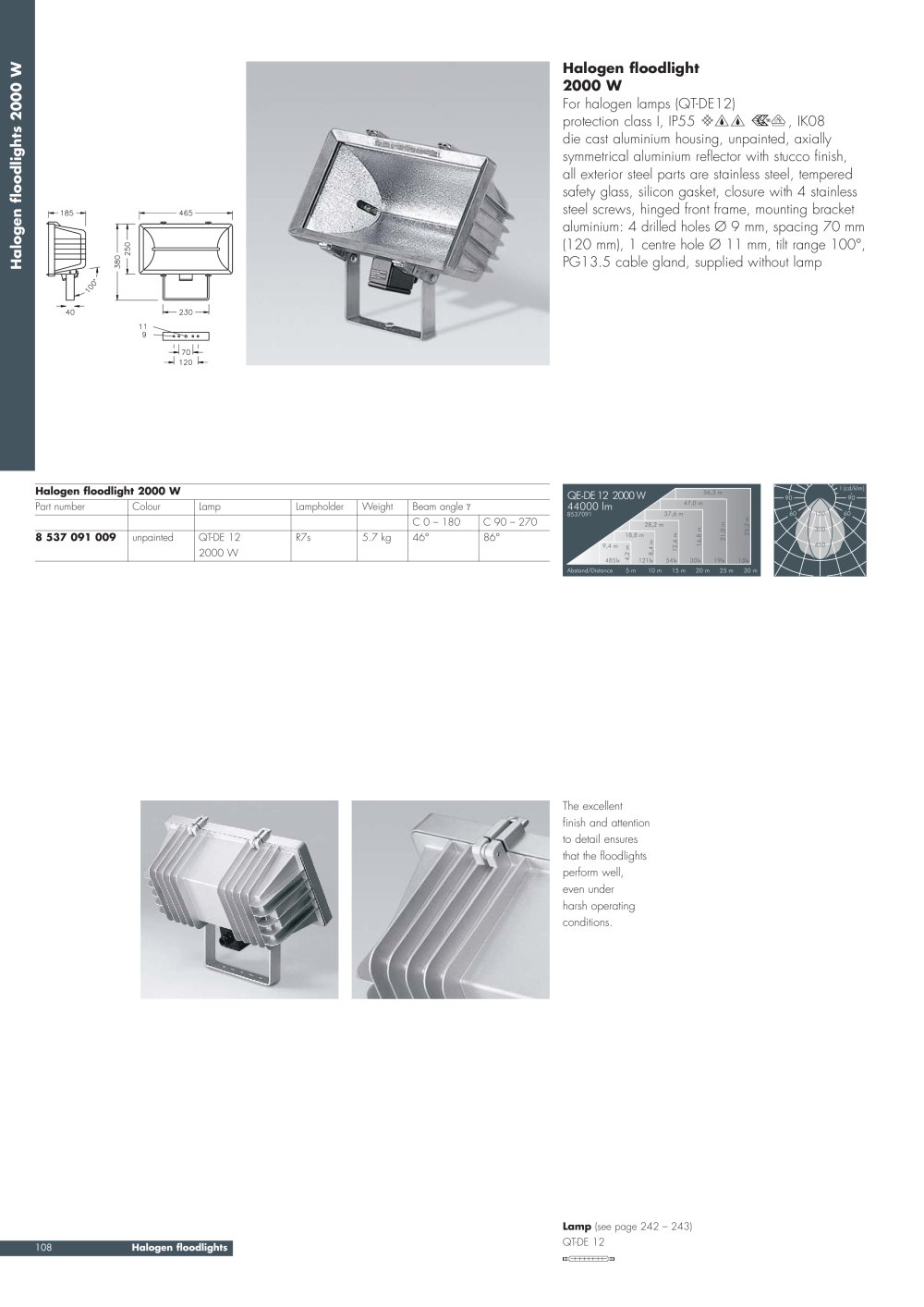

108 Halogen floodlights
Halogen floodlight
2000 W
For halogen lamps (QT-DE12)
protection class I, IP55 , IK08
die cast aluminium housing, unpainted, axially
symmetrical aluminium reflector with stucco finish,
all exterior steel parts are stainless steel, tempered
safety glass, silicon gasket, closure with 4 stainless
steel screws, hinged front frame, mounting bracket
aluminium: 4 drilled holes Ø 9 mm, spacing 70 mm
(120 mm), 1 centre hole Ø 11 mm, tilt range 100°,
PG13.5 cable gland, supplied without lamp
Lamp (see page 242 – 243)
QT-DE 12
QE-DE 12 2000 W
44000 lm
8537091
9,4 m
4,2 m
485lx
5 m
18,8 m
8,4 m
121lx
10 m
28,2 m
12,6 m
54lx
15 m
37,6 m
16,8 m
30lx
20 m
47,0 m
21,0 m
19lx
25 m
56,3 m
25,2 m 13lx
Abstand/Distance 30 m
150
300
450
60 60
90 90
I (cd/klm)
The excellent
finish and attention
to detail ensures
that the floodlights
perform well,
even under
harsh operating
conditions.
Halogen floodlight 2000 W
Part number Colour Lamp Lampholder Weight Beam angle ã
C 0 – 180 C 90 – 270
8 537 091 009 unpainted QT-DE 12
2000 W
R7s 5.7 kg 46° 86°
