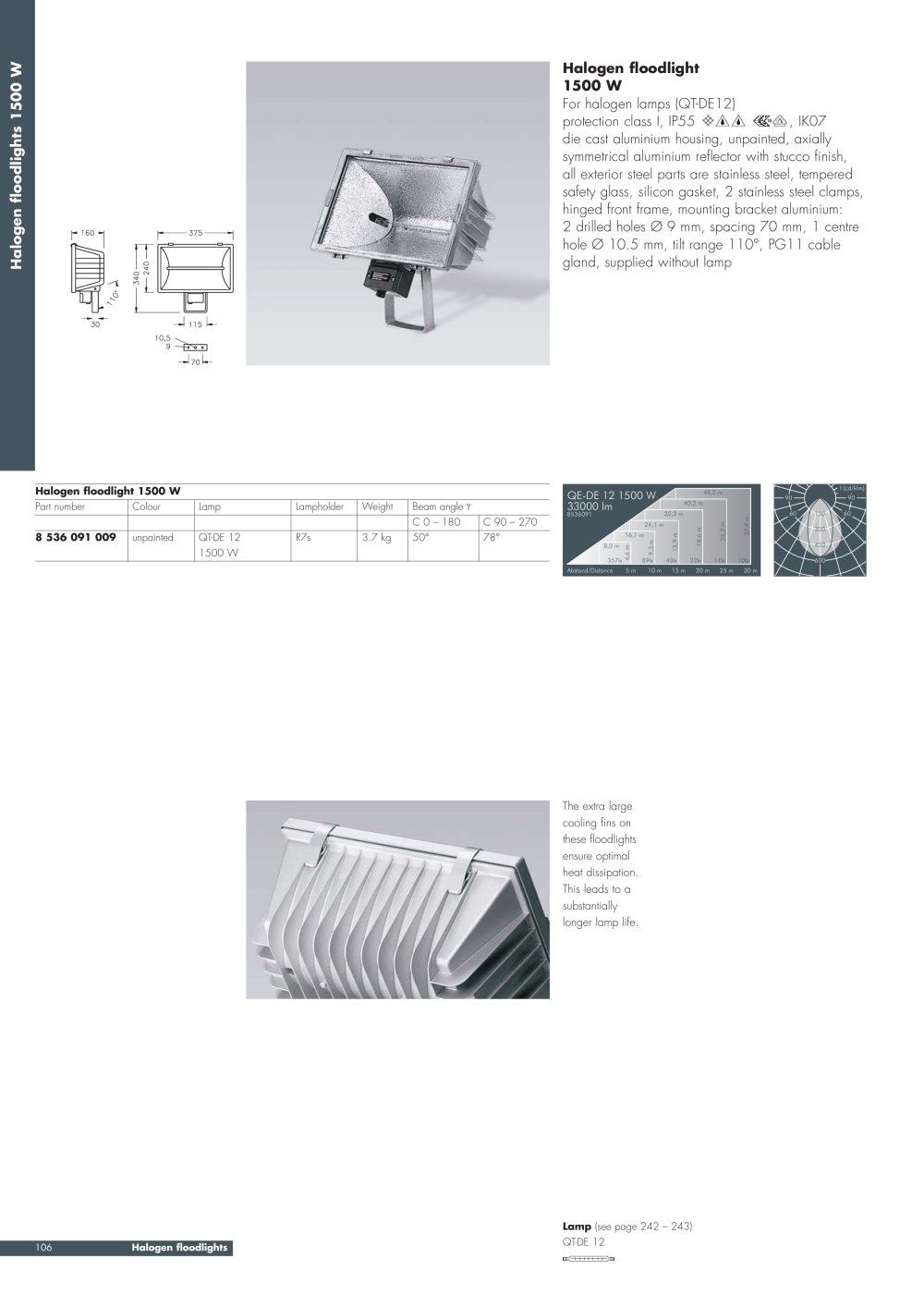

106 Halogen floodlights
Halogen floodlight
1500 W
For halogen lamps (QT-DE12)
protection class I, IP55 , IK07
die cast aluminium housing, unpainted, axially
symmetrical aluminium reflector with stucco finish,
all exterior steel parts are stainless steel, tempered
safety glass, silicon gasket, 2 stainless steel clamps,
hinged front frame, mounting bracket aluminium:
2 drilled holes Ø 9 mm, spacing 70 mm, 1 centre
hole Ø 10.5 mm, tilt range 110°, PG11 cable
gland, supplied without lamp
Lamp (see page 242 – 243)
QT-DE 12
The extra large
cooling fins on
these floodlights
ensure optimal
heat dissipation.
This leads to a
substantially
longer lamp life.
Halogen floodlight 1500 W
Part number Colour Lamp Lampholder Weight Beam angle ã
C 0 – 180 C 90 – 270
8 536 091 009 unpainted QT-DE 12
1500 W
R7s 3.7 kg 50° 78°
QE-DE 12 1500 W
33000 lm
8536091
8,0 m
4,6 m
357lx
5 m
16,1 m
9,3 m
89lx
10 m
24,1 m
13,9 m
40lx
15 m
32,2 m
18,6 m
22lx
20 m
40,2 m
23,2 m
14lx
25 m
48,2 m
27,9 m 10lx
Abstand/Distance 30 m
150
300
450
600
60 60
90 90
I (cd/klm)
