Stand
|
Halogen floodlights - 13 Pages
350
90
70
40
8M
Part number Colour Description
125 0 197 940 black Corner fixing bracket A, aluminium,
polyester powder coated,
for mounting floodlights on 90° corners
125 0 197 960 white
125 0 197 950 silver grey

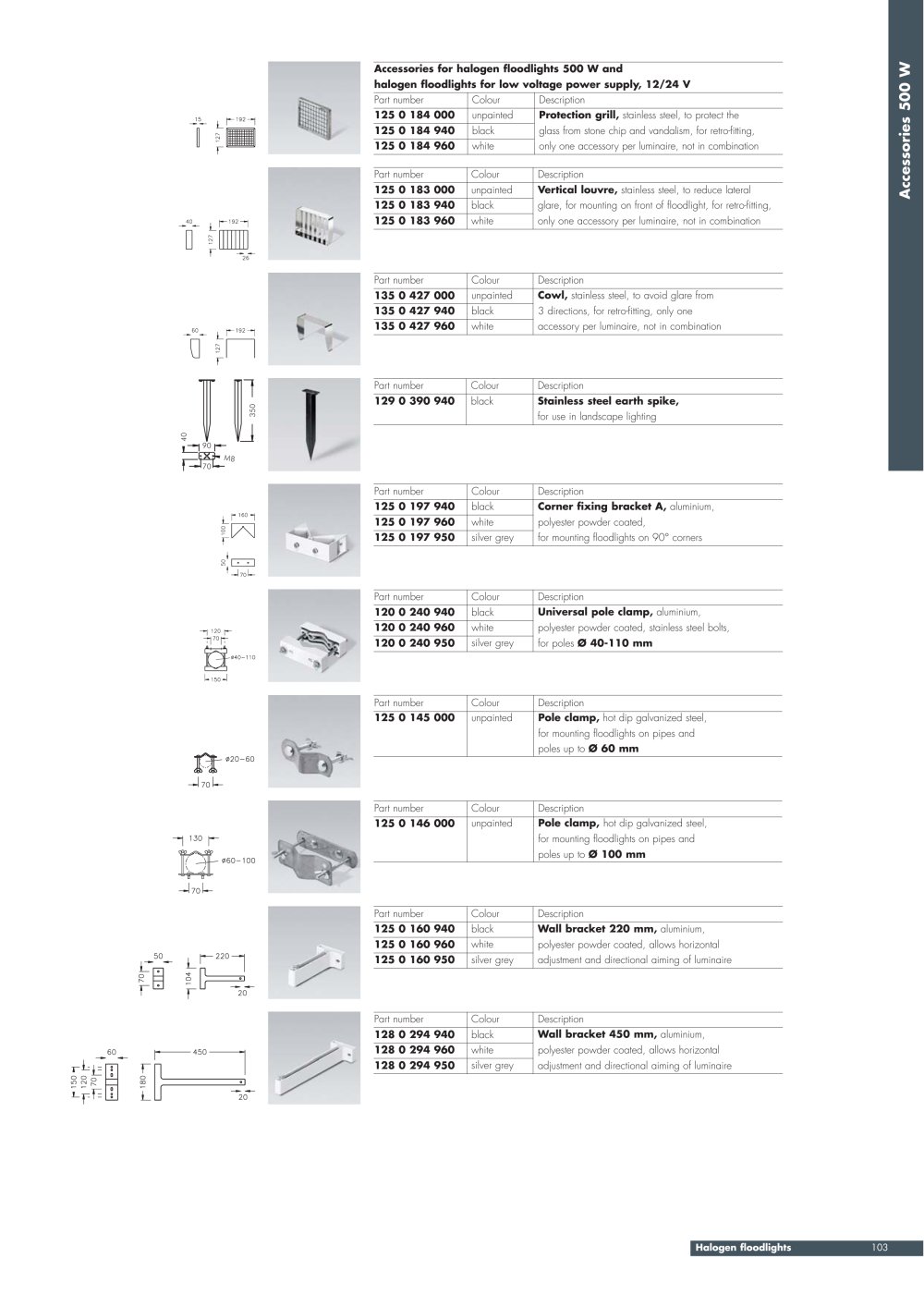

Accessories for halogen floodlights 500 W and
halogen floodlights for low voltage power supply, 12/24 V
Part number Colour Description
125 0 184 000 unpainted Protection grill, stainless steel, to protect the
glass from stone chip and vandalism, for retro-fitting,
only one accessory per luminaire, not in combination
125 0 184 940 black
125 0 184 960 white
Part number Colour Description
125 0 183 000 unpainted Vertical louvre, stainless steel, to reduce lateral
glare, for mounting on front of floodlight, for retro-fitting,
only one accessory per luminaire, not in combination
125 0 183 940 black
125 0 183 960 white
Part number Colour Description
135 0 427 000 unpainted Cowl, stainless steel, to avoid glare from
3 directions, for retro-fitting, only one
accessory per luminaire, not in combination
135 0 427 940 black
135 0 427 960 white
Part number Colour Description
129 0 390 940 black Stainless steel earth spike,
for use in landscape lighting
Part number Colour Description
120 0 240 940 black Universal pole clamp, aluminium,
polyester powder coated, stainless steel bolts,
for poles Ø 40-110 mm
120 0 240 960 white
120 0 240 950 silver grey
Part number Colour Description
125 0 145 000 unpainted Pole clamp, hot dip galvanized steel,
for mounting floodlights on pipes and
poles up to Ø 60 mm
Part number Colour Description
125 0 146 000 unpainted Pole clamp, hot dip galvanized steel,
for mounting floodlights on pipes and
poles up to Ø 100 mm
Part number Colour Description
125 0 160 940 black Wall bracket 220 mm, aluminium,
polyester powder coated, allows horizontal
adjustment and directional aiming of luminaire
125 0 160 960 white
125 0 160 950 silver grey
Part number Colour Description
128 0 294 940 black Wall bracket 450 mm, aluminium,
polyester powder coated, allows horizontal
adjustment and directional aiming of luminaire
128 0 294 960 white
128 0 294 950 silver grey
Accessories 500 W
Halogen floodlights 103
-
