Halogen floodlights - 13 Pages

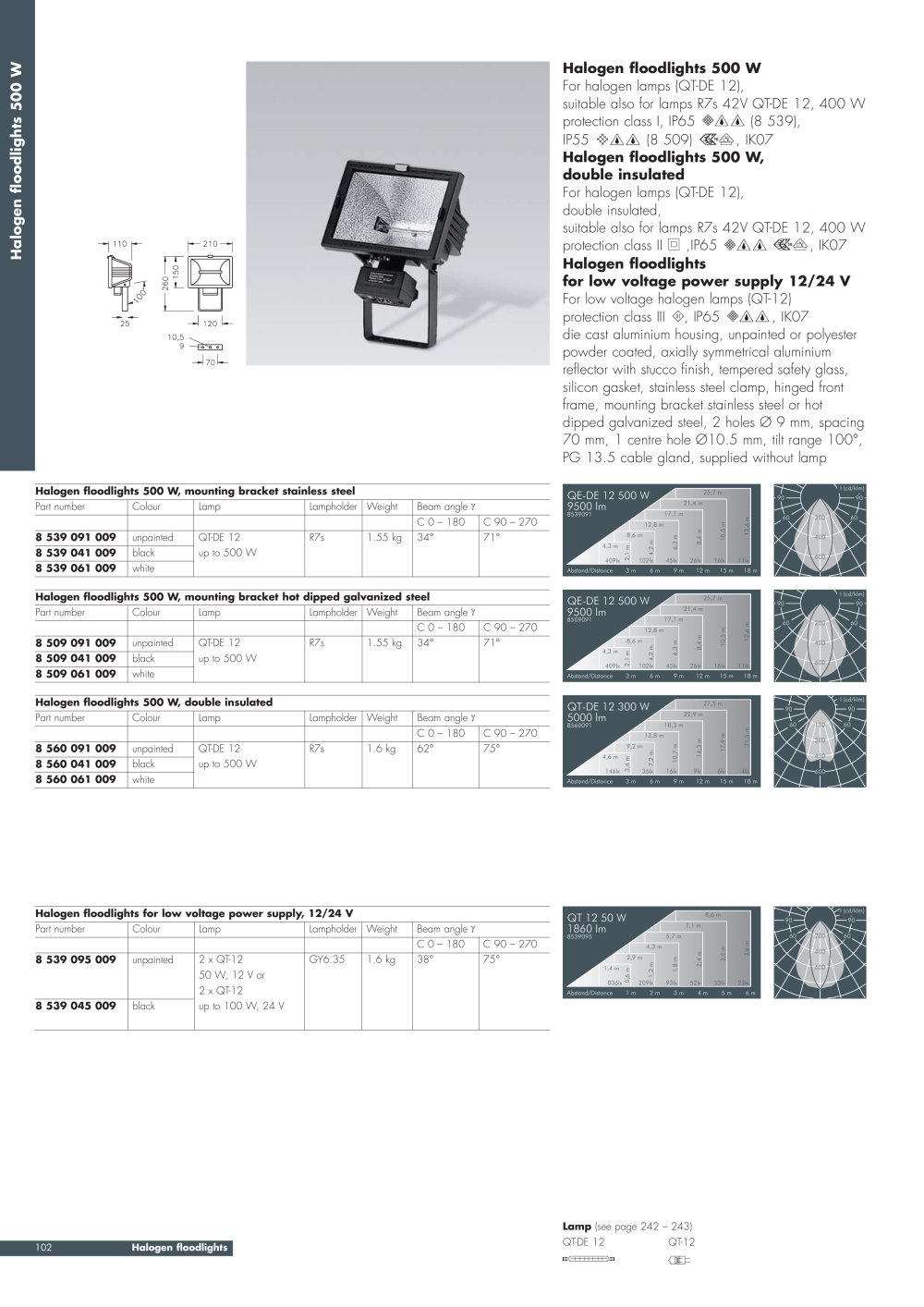

Halogen floodlights 500 W
For halogen lamps (QT-DE 12),
suitable also for lamps R7s 42V QT-DE 12, 400 W
protection class I, IP65 (8 539),
IP55 (8 509) , IK07
Halogen floodlights 500 W,
double insulated
For halogen lamps (QT-DE 12),
double insulated,
suitable also for lamps R7s 42V QT-DE 12, 400 W
protection class II ,IP65 , IK07
Halogen floodlights
for low voltage power supply 12/24 V
For low voltage halogen lamps (QT-12)
protection class III , IP65 , IK07
die cast aluminium housing, unpainted or polyester
powder coated, axially symmetrical aluminium
reflector with stucco finish, tempered safety glass,
silicon gasket, stainless steel clamp, hinged front
frame, mounting bracket stainless steel or hot
dipped galvanized steel, 2 holes Ø 9 mm, spacing
70 mm, 1 centre hole Ø10.5 mm, tilt range 100°,
PG 13.5 cable gland, supplied without lamp
102 Halogen floodlights
Lamp (see page 242 – 243)
QT-DE 12 QT-12
Halogen floodlights 500 W, mounting bracket stainless steel
Part number Colour Lamp Lampholder Weight Beam angle ã
C 0 – 180 C 90 – 270
8 539 091 009 unpainted QT-DE 12
up to 500 W
R7s 1.55 kg 34° 71°
8 539 041 009 black
8 539 061 009 white
Halogen floodlights 500 W, mounting bracket hot dipped galvanized steel
Part number Colour Lamp Lampholder Weight Beam angle ã
C 0 – 180 C 90 – 270
8 509 091 009 unpainted QT-DE 12
up to 500 W
R7s 1.55 kg 34° 71°
8 509 041 009 black
8 509 061 009 white
Halogen floodlights 500 W, double insulated
Part number Colour Lamp Lampholder Weight Beam angle ã
C 0 – 180 C 90 – 270
8 560 091 009 unpainted QT-DE 12
up to 500 W
R7s 1.6 kg 62° 75°
8 560 041 009 black
8 560 061 009 white
QE-DE 12 500 W
9500 lm
8509091
4,3 m
2,1 m
409lx
3 m
8,6 m
4,2 m
102lx
6 m
12,8 m 6,3 m
45lx
9 m
17,1 m
8,4 m
26lx
12 m
21,4 m
10,5 m
16lx
15 m
25,7 m
12,6 m
11lx
Abstand/Distance 18 m
200
400
600
60 60
90 90
I (cd/klm)
QT-DE 12 300 W
5000 lm
8560091
4,6 m
3,6 m
146lx
3 m
9,2 m
7,2 m
36lx
6 m
13,8 m
10,7 m
16lx
9 m
18,3 m
14,3 m
9lx
12 m
22,9 m
17,9 m
6lx
15 m
27,5 m
21,5 m
4lx
Abstand/Distance 18 m
150
300
450
600
60 60
90 90
I (cd/klm)
QT 12 50 W
1860 lm
8539095
1,4 m
0,6 m
836lx
1 m
2,9 m
1,2 m
209lx
2 m
4,3 m
1,8 m
93lx
3 m
5,7 m
2,4 m
52lx
4 m
7,1 m
3,0 m
33lx
5 m
8,6 m
3,6 m
23lx
Abstand/Distance 6 m
200
400
600
60 60
90 90
Halogen floodlights for low voltage power supply, 12/24 V I (cd/klm)
Part number Colour Lamp Lampholder Weight Beam angle ã
C 0 – 180 C 90 – 270
8 539 095 009 unpainted 2 x QT-12
50 W, 12 V or
2 x QT-12
up to 100 W, 24 V
GY6.35 1.6 kg 38° 75°
8 539 045 009 black
QE-DE 12 500 W
9500 lm
8539091
4,3 m
2,1 m
409lx
3 m
8,6 m
4,2 m
102lx
6 m
12,8 m
6,3 m
45lx
9 m
17,1 m
8,4 m
26lx
12 m
21,4 m
10,5 m
16lx
15 m
25,7 m
12,6 m 11lx
Abstand/Distance 18 m
200
400
600
60 60
90 90
I (cd/klm)
Halogen floodlights 500 W
-
