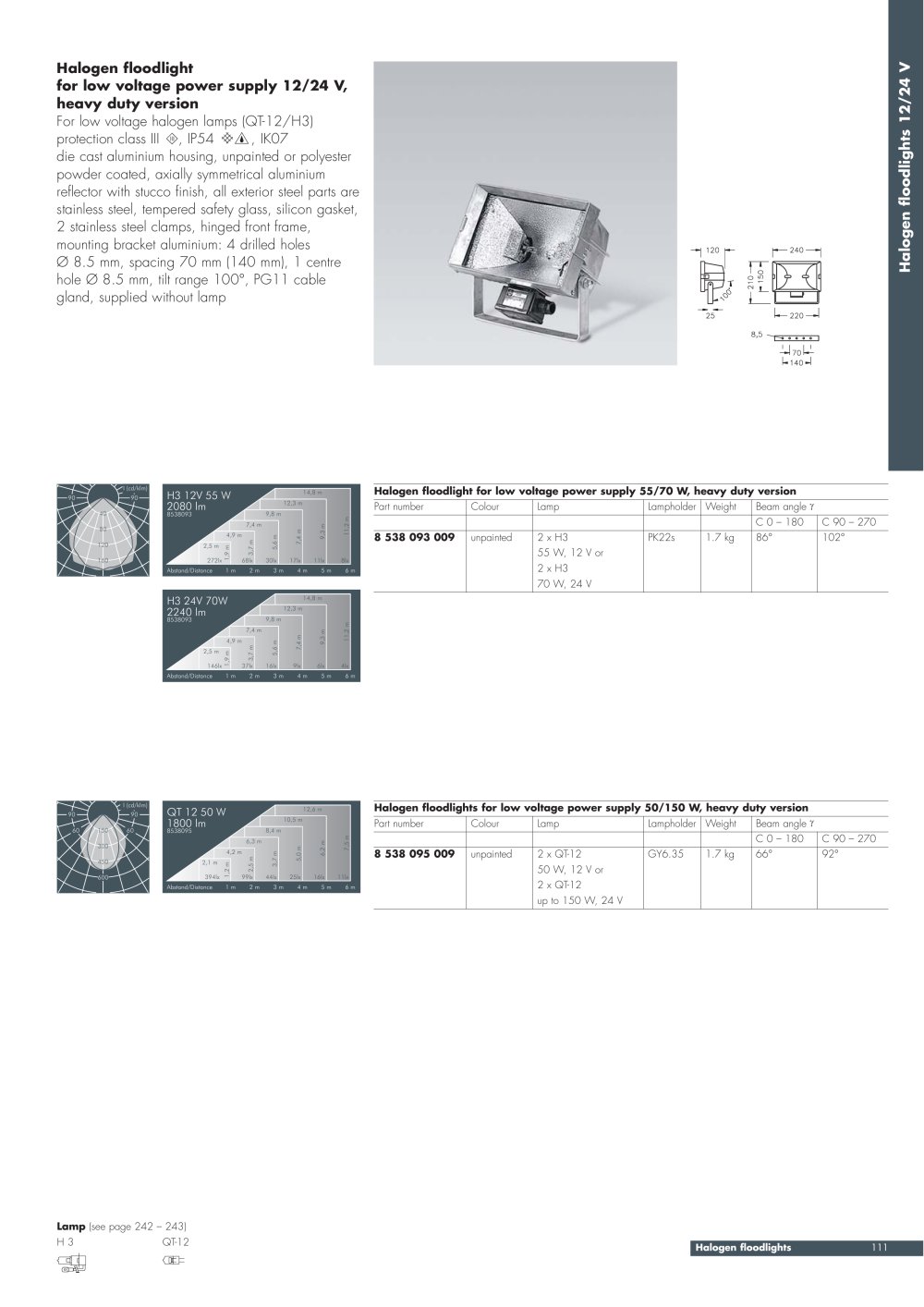

Halogen floodlights 111
Halogen floodlight
for low voltage power supply 12/24 V,
heavy duty version
For low voltage halogen lamps (QT-12/H3)
protection class III , IP54 , IK07
die cast aluminium housing, unpainted or polyester
powder coated, axially symmetrical aluminium
reflector with stucco finish, all exterior steel parts are
stainless steel, tempered safety glass, silicon gasket,
2 stainless steel clamps, hinged front frame,
mounting bracket aluminium: 4 drilled holes
Ø 8.5 mm, spacing 70 mm (140 mm), 1 centre
hole Ø 8.5 mm, tilt range 100°, PG11 cable
gland, supplied without lamp
Lamp (see page 242 – 243)
H 3 QT-12
H3 12V 55 W
2080 lm
8538093
2,5 m
1,9 m
272lx
1 m
4,9 m
3,7 m
68lx
2 m
7,4 m
5,6 m
30lx
3 m
9,8 m
7,4 m
17lx
4 m
12,3 m
9,3 m
11lx
5 m
14,8 m
11,2 m
8lx
Abstand/Distance 6 m
40
80
120
160
90 90
I (cd/klm) Halogen floodlight for low voltage power supply 55/70 W, heavy duty version
Part number Colour Lamp Lampholder Weight Beam angle ã
C 0 – 180 C 90 – 270
8 538 093 009 unpainted 2 x H3
55 W, 12 V or
2 x H3
70 W, 24 V
PK22s 1.7 kg 86° 102°
H3 24V 70W
2240 lm
8538093
2,5 m
1,9 m
146lx
1 m
4,9 m
3,7 m
37lx
2 m
7,4 m
5,6 m
16lx
3 m
9,8 m
7,4 m
9lx
4 m
12,3 m
9,3 m
6lx
5 m
14,8 m
11,2 m
4lx
Abstand/Distance 6 m
QT 12 50 W
1800 lm
8538095
2,1 m
1,2 m
394lx
1 m
4,2 m
2,5 m
99lx
2 m
6,3 m
3,7 m
44lx
3 m
8,4 m
5,0 m
25lx
4 m
10,5 m
6,2 m
16lx
5 m
12,6 m
7,5 m
11lx
Abstand/Distance 6 m
150
300
450
600
60 60
90 90
I (cd/klm) Halogen floodlights for low voltage power supply 50/150 W, heavy duty version
Part number Colour Lamp Lampholder Weight Beam angle ã
C 0 – 180 C 90 – 270
8 538 095 009 unpainted 2 x QT-12
50 W, 12 V or
2 x QT-12
up to 150 W, 24 V
GY6.35 1.7 kg 66° 92°
