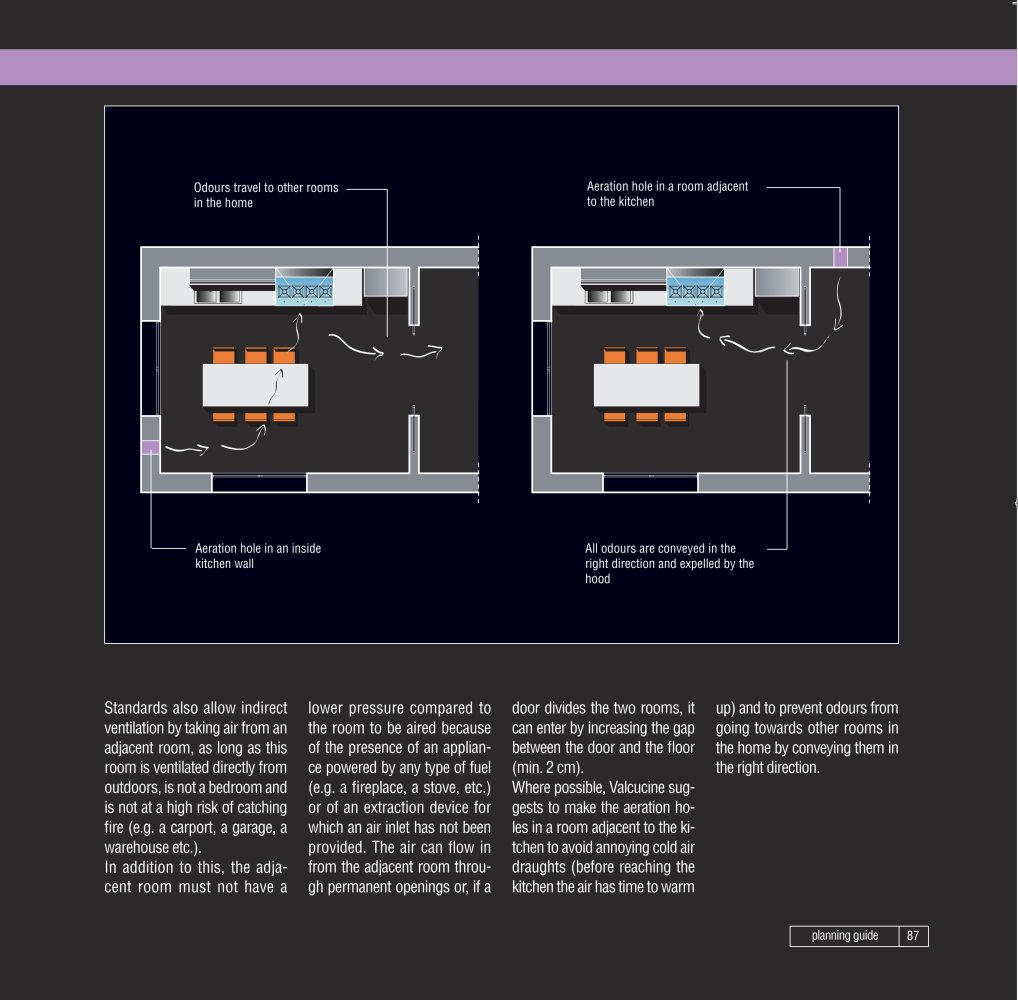

Aeration hole in a room adjacent to the kitchen
Odours travel to other rooms in the home
Aeration hole in an inside kitchen wall
All odours are conveyed in the right direction and expelled by the hood
Standards also allow indirect ventilation by taking air from an adjacent room, as long as this room is ventilated directly from outdoors, is not a bedroom and is not at a high risk of catching fire (e.g. a carport, a garage, a warehouse etc.). In addition to this, the adja­cent room must not have a
lower pressure compared to the room to be aired because
of the presence of an applian­ce powered by any type of fuel (e.g. a fireplace, a stove, etc.) or of an extraction device for which an air inlet has not been provided. The air can flow in from the adjacent room throu­gh permanent openings or, if a
door divides the two rooms, it can enter by increasing the gap
up) and to prevent odours from going towards other rooms in
between the door and the floor the home by conveying them in (min. 2 cm). the right direction.
Where possible, Valcucine sug­gests to make the aeration ho­les in a room adjacent to the ki­tchen to avoid annoying cold air draughts (before reaching the kitchen the air has time to warm
planning guide
87
