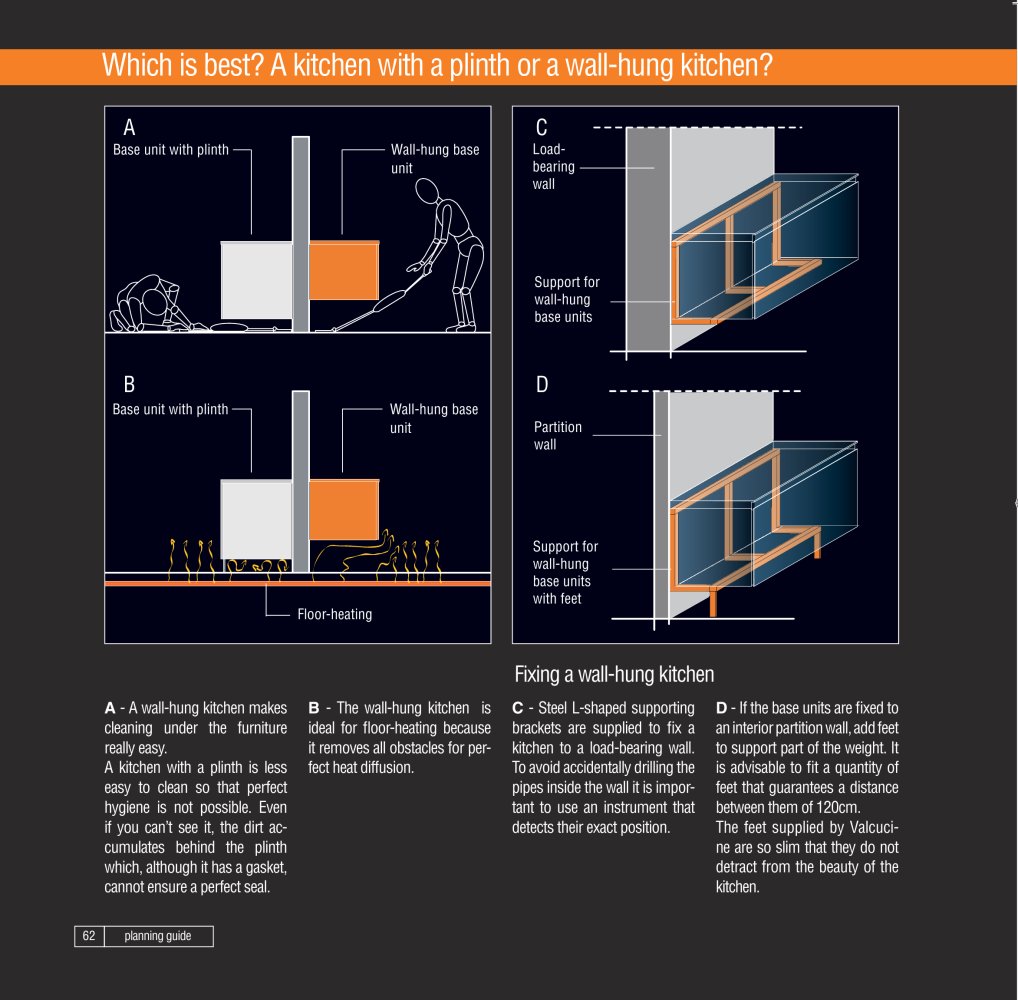

Support for wall-hung base units
Support for wall-hung base units with feet
Floor-heating
MAMig a vvairnuiig kitchen
C - Steel L-shaped supporting brackets are supplied to fix a kitchen to a load-bearing wall. To avoid accidentally drilling the pipes inside the wall it is impor­tant to use an instrument that detects their exact position.
A - A wall-hung kitchen makes cleaning under the furniture really easy.
A kitchen with a plinth is less easy to clean so that perfect hygiene is not possible. Even if you can't see it, the dirt ac­cumulates behind the plinth which, although it has a gasket, cannot ensure a perfect seal.
B - The wall-hung kitchen is ideal for floor-heating because it removes all obstacles for per­fect heat diffusion.
D - If the base units are fixed to an interior partition wall, add feet to support part of the weight. It is advisable to fit a quantity of feet that guarantees a distance between them of 120cm. The feet supplied by Valcuci-ne are so slim that they do not detract from the beauty of the kitchen.
62
planning guide
