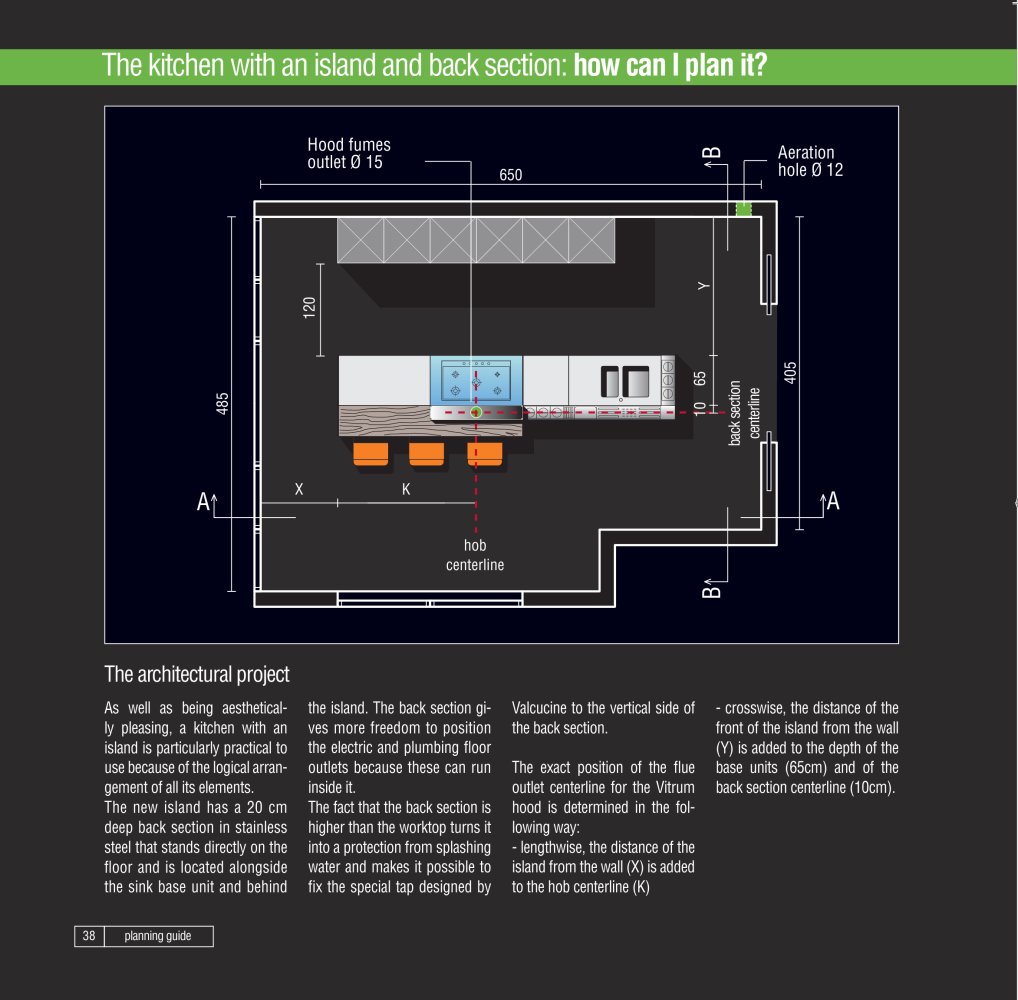

The architectural project

As well as being aesthetically pleasing, a kitchen with an island is particularly practical to use because of the logical arrangement of all its elements. The new island has a 20 cm deep back section in stainless steel that stands directly on the floor and is located alongside the sink base unit and behind

the island. The back section gives more freedom to position the electric and plumbing floor outlets because these can run inside it.

The fact that the back section is higher than the worktop turns it into a protection from splashing water and makes it possible to fix the special tap designed by

Valcucine to the vertical side of - crosswise, the distance of the

the back section.

front of the island from the wall

(Y) is added to the depth of the The exact position of the flue base units (65cm) and of the

outlet centerline for the Vitrum hood is determined in the following way:

- lengthwise, the distance of the island from the wall (X) is added to the hob centerline (K)

back section centerline (10cm).

planning guide
