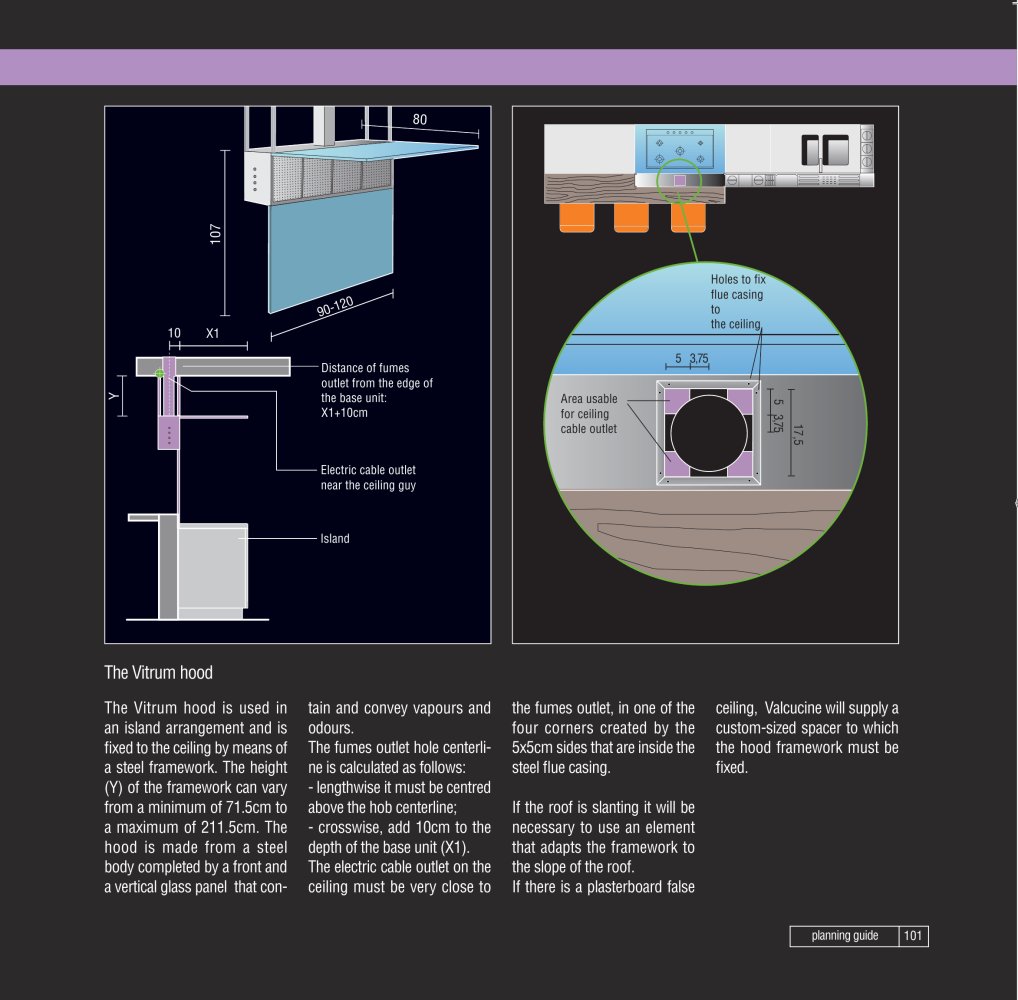

| | | The Vitrum hood is used in an island arrangement and is fixed to the ceiling by means of a steel framework. The height (Y) of the framework can vary from a minimum of 71.5cm to a maximum of 211.5cm. The hood is made from a steel body completed by a front and a vertical glass panel that con- | | tain and convey vapours and odours. The fumes outlet hole centerline is calculated as follows: - lengthwise it must be centred above the hob centerline; - crosswise, add 10cm to the depth of the base unit (X1). The electric cable outlet on the ceiling must be very close to | | the fumes outlet, in one of the four corners created by the 5x5cm sides that are inside the steel flue casing. If the roof is slanting it will be necessary to use an element that adapts the framework to the slope of the roof. If there is a plasterboard false | | ceiling, Valcucine will supply a custom-sized spacer to which the hood framework must be fixed. | | |
