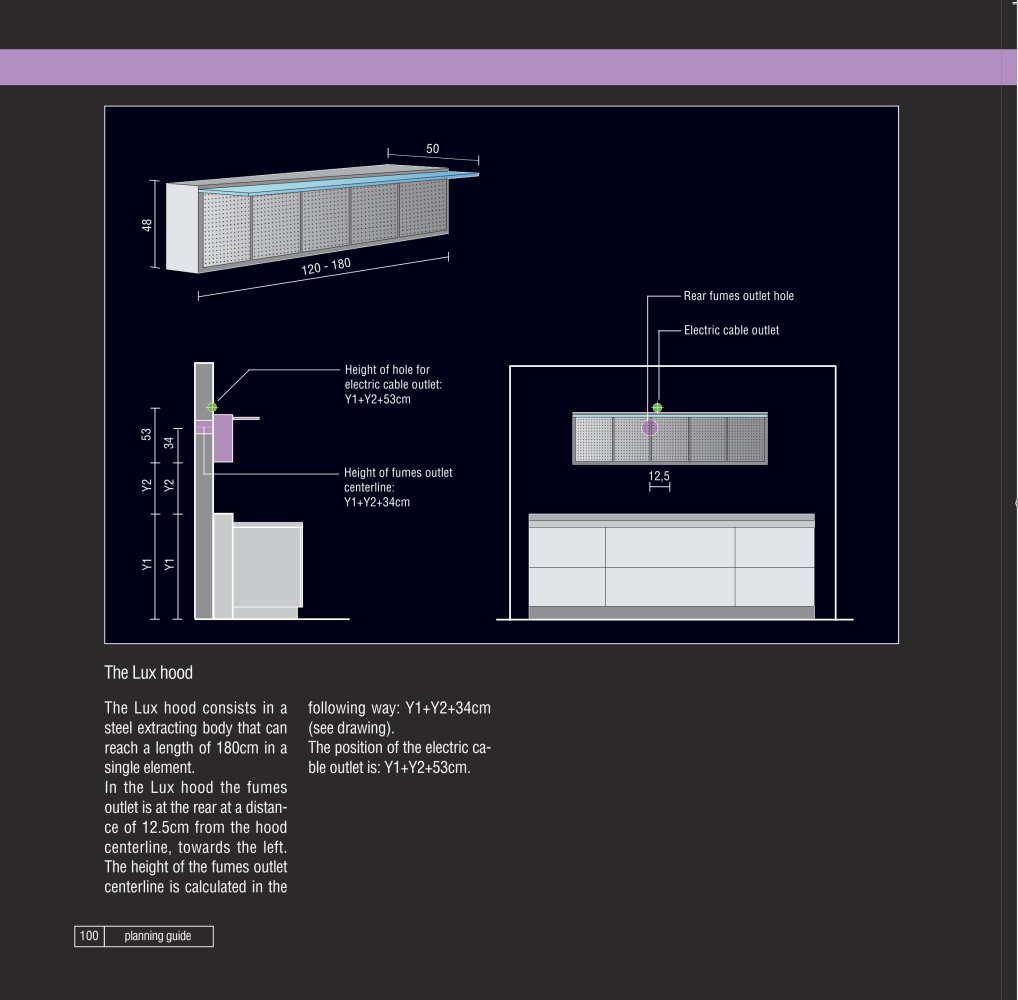

| | | The Lux hood consists in a steel extracting body that can reach a length of 180cm in a single element. In the Lux hood the fumes outlet is at the rear at a distance of 12.5cm from the hood centerline, towards the left. The height of the fumes outlet centerline is calculated in the | | following way: Y1+Y2+34cm (see drawing). The position of the electric cable outlet is: Y1+Y2+53cm. | | |
