USG Acoustical Assemblies Brochure - 40 Pages

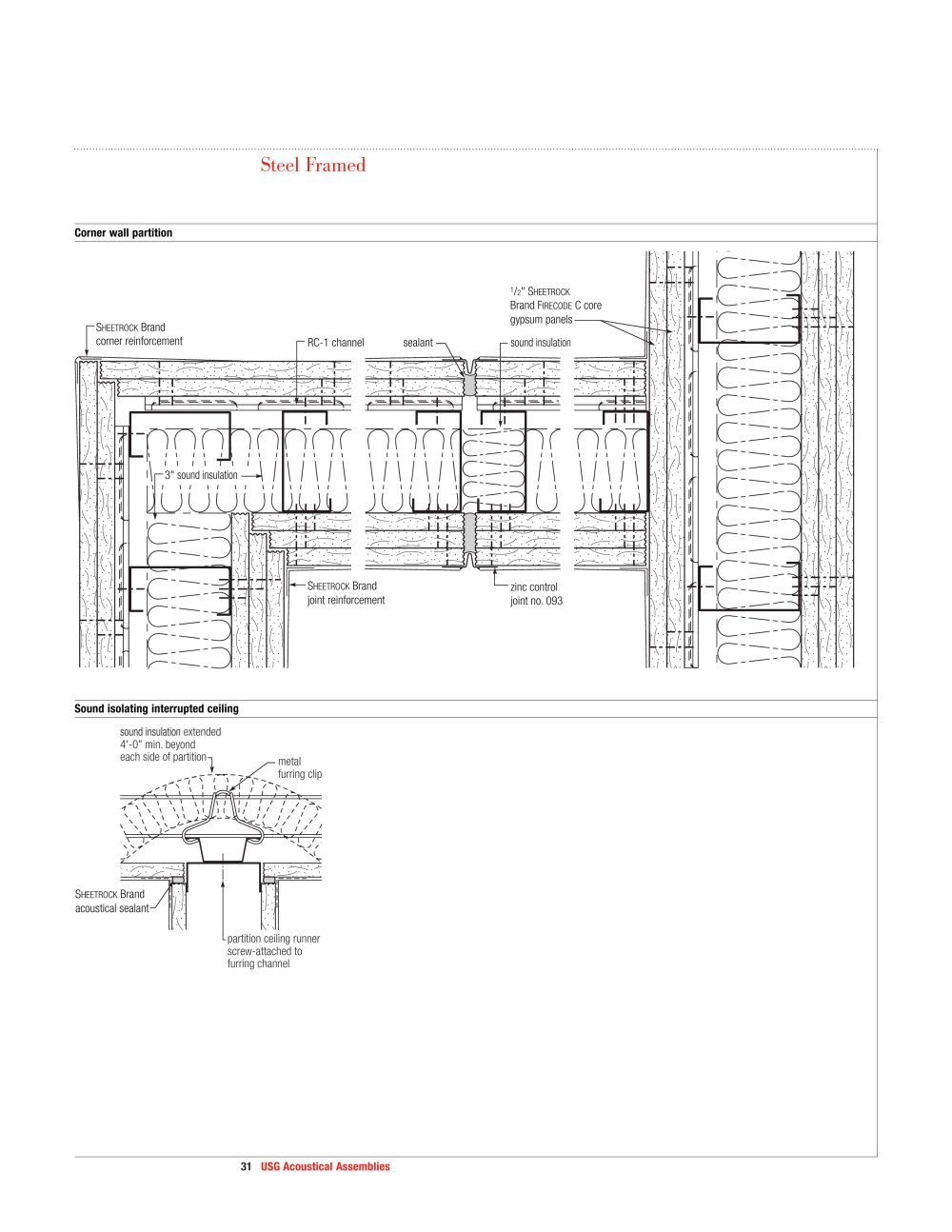

31 USG Acoustical Assemblies
Steel Framed
RC-1 channel sealant sound insulation
zinc control
joint no. 093
SHEETROCK Brand
corner reinforcement
SHEETROCK Brand
joint reinforcement
1/2" SHEETROCK
Brand FIRECODE C core
gypsum panels
3" sound insulation
metal
furring clip
sound insulation extended
4'-0" min. beyond
each side of partition
SHEETROCK Brand
acoustical sealant
partition ceiling runner
screw-attached to
furring channel
Corner wall partition
Sound isolating interrupted ceiling
-
