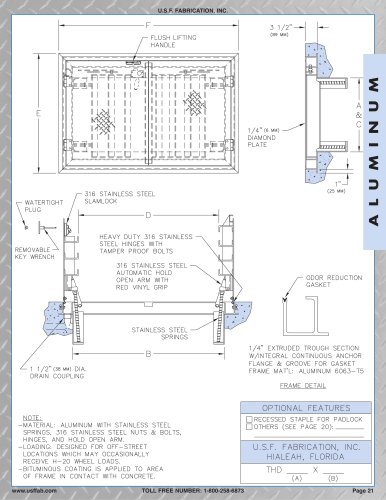

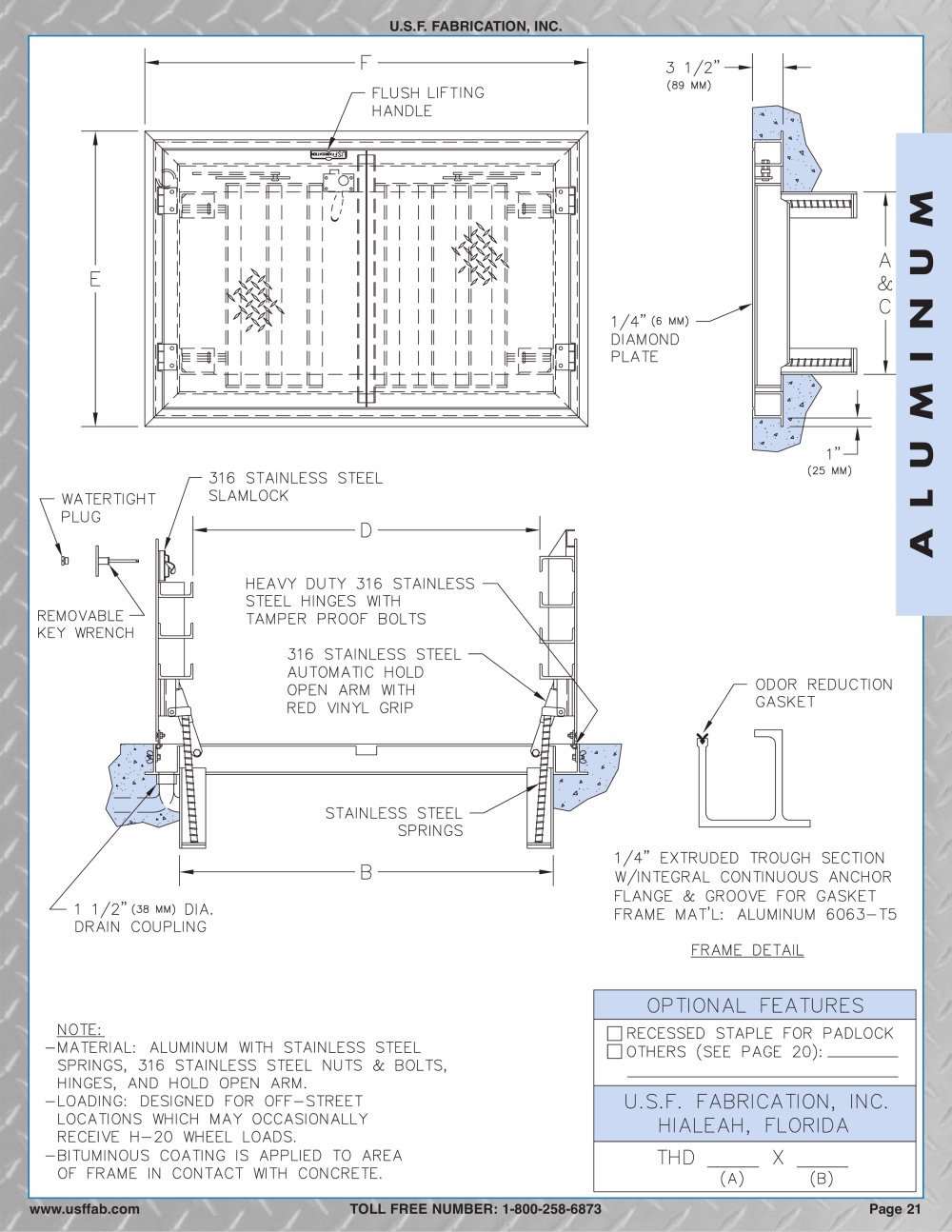

U.S.F. FABRICATION, INC. F 3 1/2"- (89 MM) A & C Iח'JSl FLUSH LIFTING HANDLE -m- FlFI I II I IF#5||4II il 1 /4" (6 MM) DIAMOND PLATE m WATERTIGHT PLUG 316 STAINLESS STEEL SLAMLOCK -D- (25 MM) HEAVY DUTY 316 STAINLESS STEEL HINGES WITH TAMPER PROOF BOLTS 316 STAINLESS STEEL AUTOMATIC HOLD OPEN ARM WITH RED VINYL GRIP REMOVABLE KEY WRENCH ODOR REDUCTION GASKET 1 1/2" (38 MM) DIA. DRAIN COUPLING STAINLESS STEEL SPRINGS -B- 1/4" EXTRUDED TROUGH SECTION W/INTEGRAL CONTINUOUS ANCHOR FLANGE & GROOVE FOR GASKET FRAME MAT'L: ALUMINUM 6063-T5 FRAME DETAIL OPTIONAL FEATURES NOTE: -MATERIAL: ALUMINUM WITH STAINLESS STEEL SPRINGS, 316 STAINLESS STEEL NUTS SeBOLTS, HINGES, AND HOLD OPEN ARM. -LOADING: DESIGNED FOR OFF-STREET LOCATIONS WHICH MAY OCCASIONALLY RECEIVE H-20 WHEEL LOADS. -BITUMINOUS COATING IS APPLIED TO AREA OF FRAME IN CONTACT WITH CONCRETE. □ RECESSED STAPLE FOR PADLOCK □ OTHERS (SEE PAGE 20):_ U.S.F. FABRICATION, INC. HIALEAH, FLORIDA THD X (B) (A) www.usffab.com TOLL FREE NUMBER: 1-800-258-6873 Page 21
