Swirl Diffusers - 17 Pages

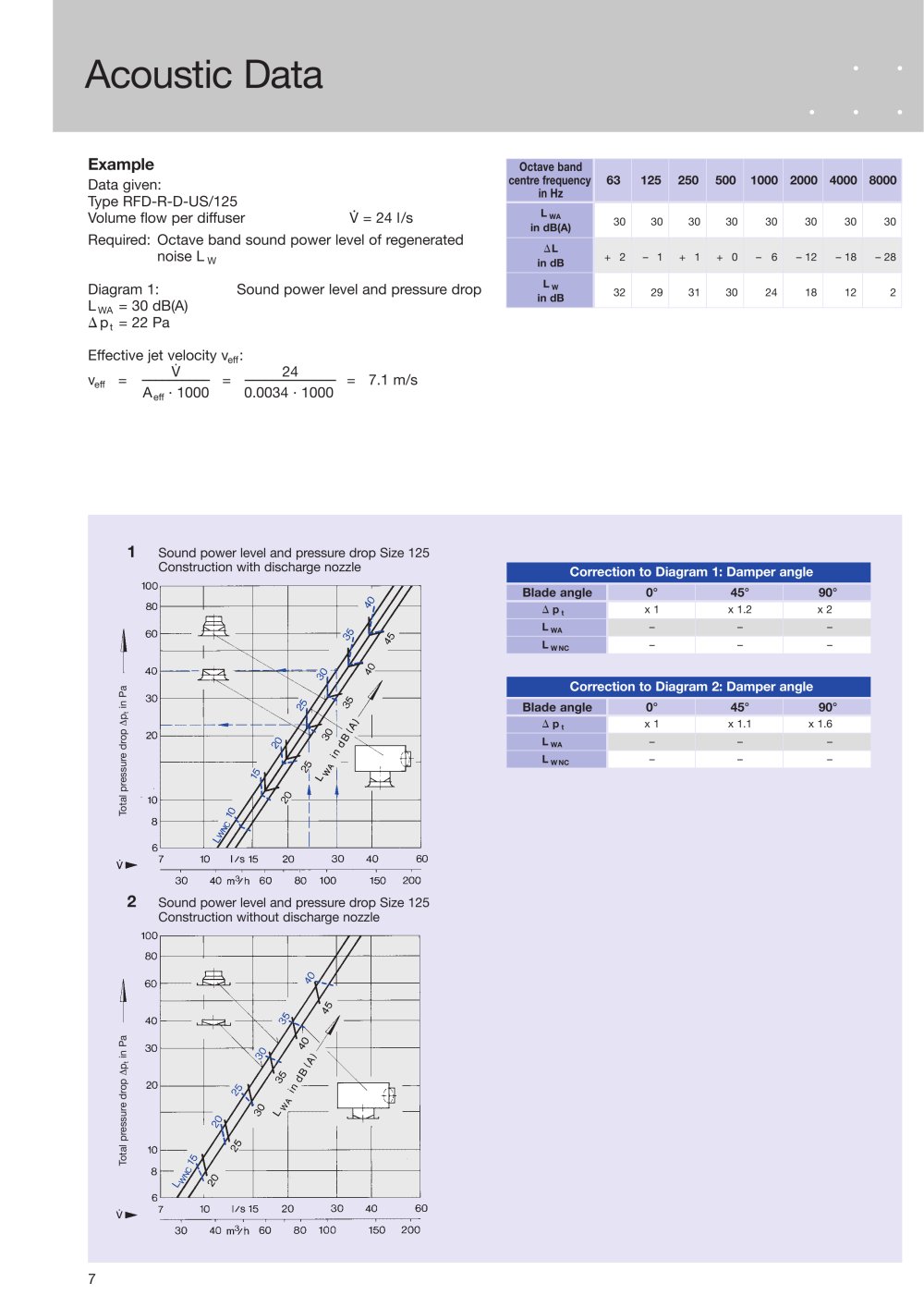

Example
Data given:
Type RFD-R-D-US/125
Volume flow per diffuser V = 24 l/s
Required: Octave band sound power level of regenerated
noise Lw
Diagram 1: Sound power level and pressure drop
LWA = 30 dB(A)
Apt = 22 Pa
Effective jet velocity veff:
V 24
veff = --- = -—- = 7.1 m/s
Aeff-1000 0.0034-1000
Octave band centre frequency in Hz | 63 | 125 | 250 | 500 | 1000 | 2000 | 4000 | 8000 |
in dB(A) | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
AL in dB | + 2 | - 1 | + 1 | + 0 | - 6 | - 12 | - 18 | -28 |
Lw in dB | 32 | 29 | 31 | 30 | 24 | 18 | 12 | 2 |
Correction to Diagram 1: Damper angle
1 Sound power level and pressure drop Size 125
Construction with discharge nozzle
7 10 l/s 15 20 30 40 60
30 40 m3/h 60 80 100 150 200
2 Sound power level and pressure drop Size 125
Construction without discharge nozzle
7 10 l/s 15 20 30 40 60
30 40 m3/h 60 80 100 150 200
Blade angle 0° 45° 90°
Ap, x1 x1.2 x2
Correction to Diagram 2: Damper angle | |
Blade angle | 0° 45° 90° |
A p, | x1 x1.1 x1.6 |
LWNC | |
7
-
