Swirl Diffusers - 17 Pages
Contents • Description
Construction • Dimensions_ 3
Installation • Fixing_ 5
Quick Selection_ 6
Spectral Data_ 6
Acoustic Data_ 7

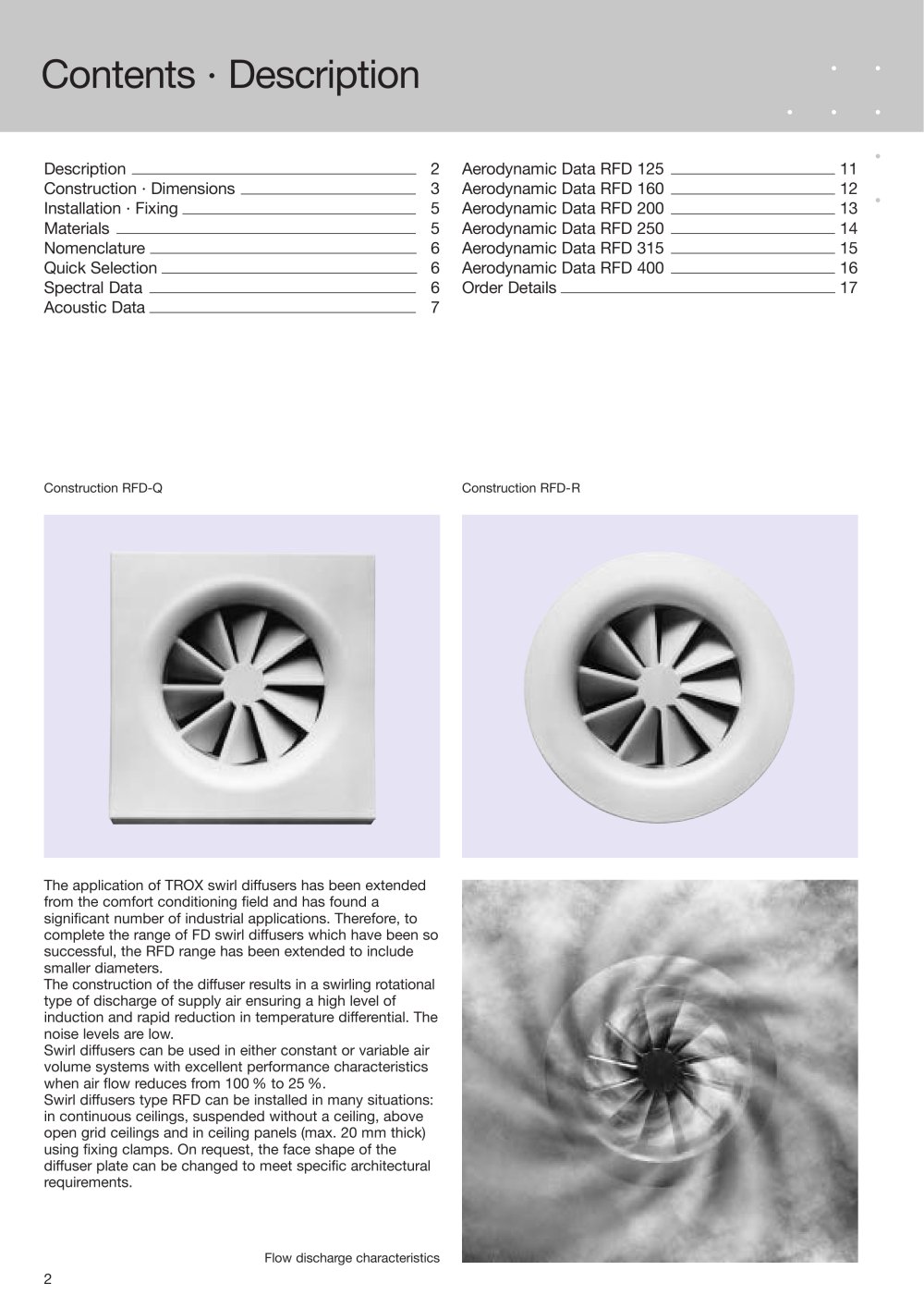

The application of TROX swirl diffusers has been extended
from the comfort conditioning field and has found a
significant number of industrial applications. Therefore, to
complete the range of FD swirl diffusers which have been so
successful, the RFD range has been extended to include
The construction of the diffuser results in a swirling rotational
type of discharge of supply air ensuring a high level of
induction and rapid reduction in temperature differential. The
noise levels are low.
Swirl diffusers can be used in either constant or variable air
volume systems with excellent performance characteristics
when air flow reduces from 100 % to 25 %.
Swirl diffusers type RFD can be installed in many situations:
in continuous ceilings, suspended without a ceiling, above
open grid ceilings and in ceiling panels (max. 20 mm thick)
using fixing clamps. On request, the face shape of the
diffuser plate can be changed to meet specific architectural
Flow discharge characteristics
Aerodynamic Data RFD 125_11
Aerodynamic Data RFD 160_12
Aerodynamic Data RFD 200 _13
Aerodynamic Data RFD 250 _14
Aerodynamic Data RFD 315_15
Aerodynamic Data RFD 400 _16
P. 12/4/EN/8Swirl DiffusersType RFDrecommended for use in rooms withceiling heights of approx. 2.60 . . . 4.00 mTROX GmbHHeinrich-Trox-PlatzD-47504 Neukirchen-VluynTelephone...
P. 3Dependant on requirements of maximum volumetric flow, noise level and installation situation, swirl diffusers are available with or without discharge...
P. 4Construction • Dimensions The face section of the diffuser or side entry plenum box is demountable, held in position by a central fixing...
P. 5Installation • Fixing Because of their excellent performance, type RFD swirl diffusers can be installed flush with a continuous ceiling or freely...
P. 6Nomenclature · Quick Selection · Spectral Data·V·VA, BXH1vH1Nomenclaturein l/s:in m3/h:in m:in m:in m:in m/s:Lin m:vLͬ tZin m/s:in...
P. 7Example Data given: Type RFD-R-D-US/125 Volume flow per diffuser V = 24 l/s Required: Octave band sound power level of regenerated noise...
