BUILT-IN OVENS

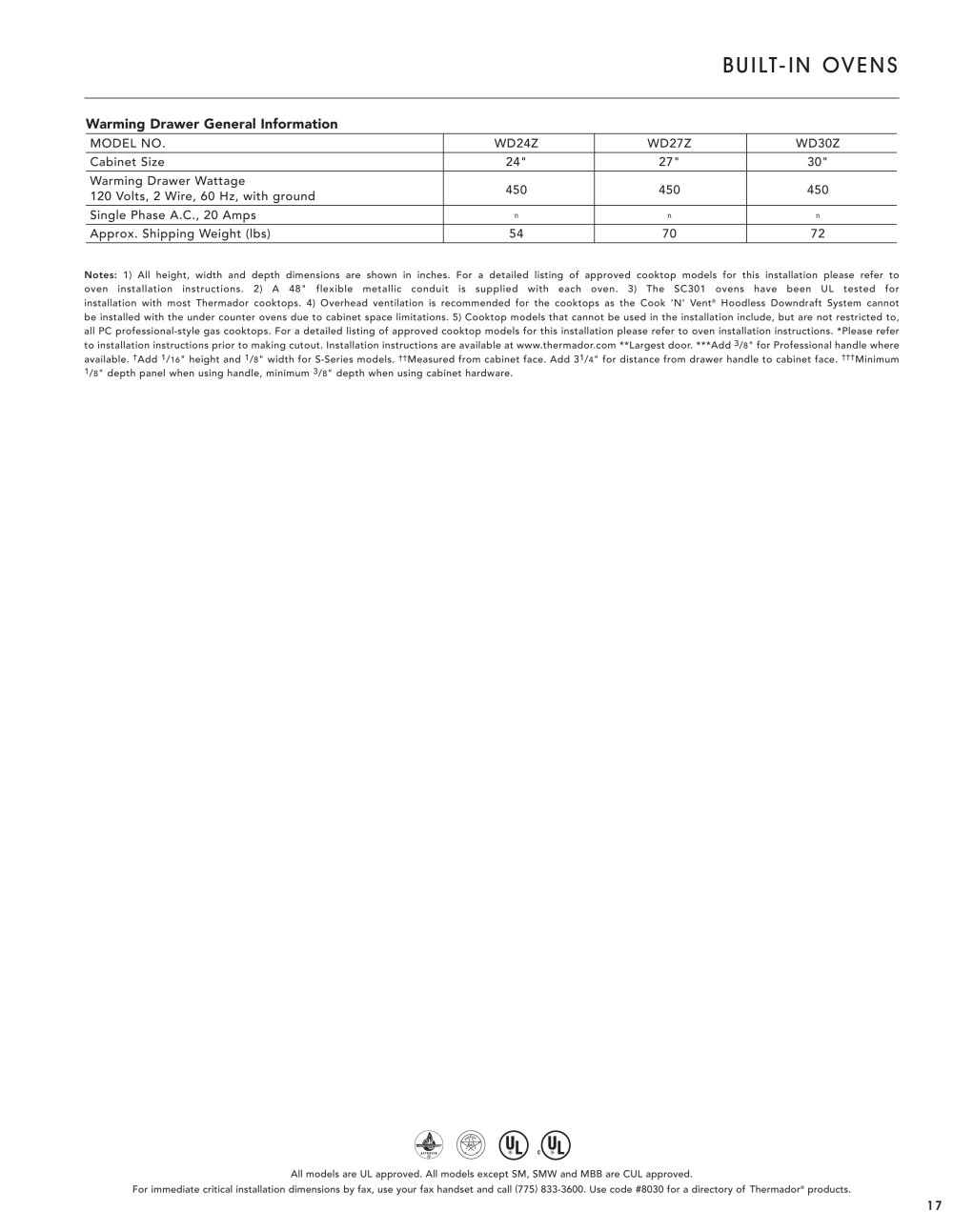

MODEL NO.WD24ZWD27ZWD30Z Cabinet furniture Size24"27"30"Warming Drawer Wattage450450450 120 Volts, 2 Wire, 60 Hz, with ground Single Phase A.C., 20 Amps
nnn Approx. Shipping Weight (lbs)547072
Notes: 1) All height, width and depth dimensions are shown in inches. For a detailed listing of approved cooktop models for this installation please refer to
oven furniture installation instructions. 2) A 48" flexible metallic conduit is supplied with each oven. 3) The SC301 ovens have been UL tested for installation with most Thermador cooktops. 4) Overhead ventilation is recommended for the cooktops as the Cook ’N’ Vent
® Hoodless Downdraft System cannot be installed with the under counter ovens due to cabinet space limitations. 5) Cooktop models that cannot be used in the installation include, but are not restricted to,all PC professional-style gas cooktops. For a detailed listing of approved cooktop models for this installation please refer to oven installation instructions. *Please referto installation instructions prior to making cutout. Installation instructions are available at www.thermador.com **Largest
professional door. ***Add
3 /
8 " for Professional handle whereavailable.
† Add
1 /
16 " height and
1 /
8 " width for S-Series models.
†† Measured from cabinet face. Add 3
1 /
4 " for distance from drawer handle to cabinet face.
††† Minimum
1 /
8 " depth panel when using handle, minimum
3 /
8 " depth when using cabinet hardware. All models are UL approved. All models except SM, SMW and MBB are CUL approved.For immediate critical installation dimensions by fax, use your fax handset and call (775)833-3600. Use code #8030 for a directory ofThermador
