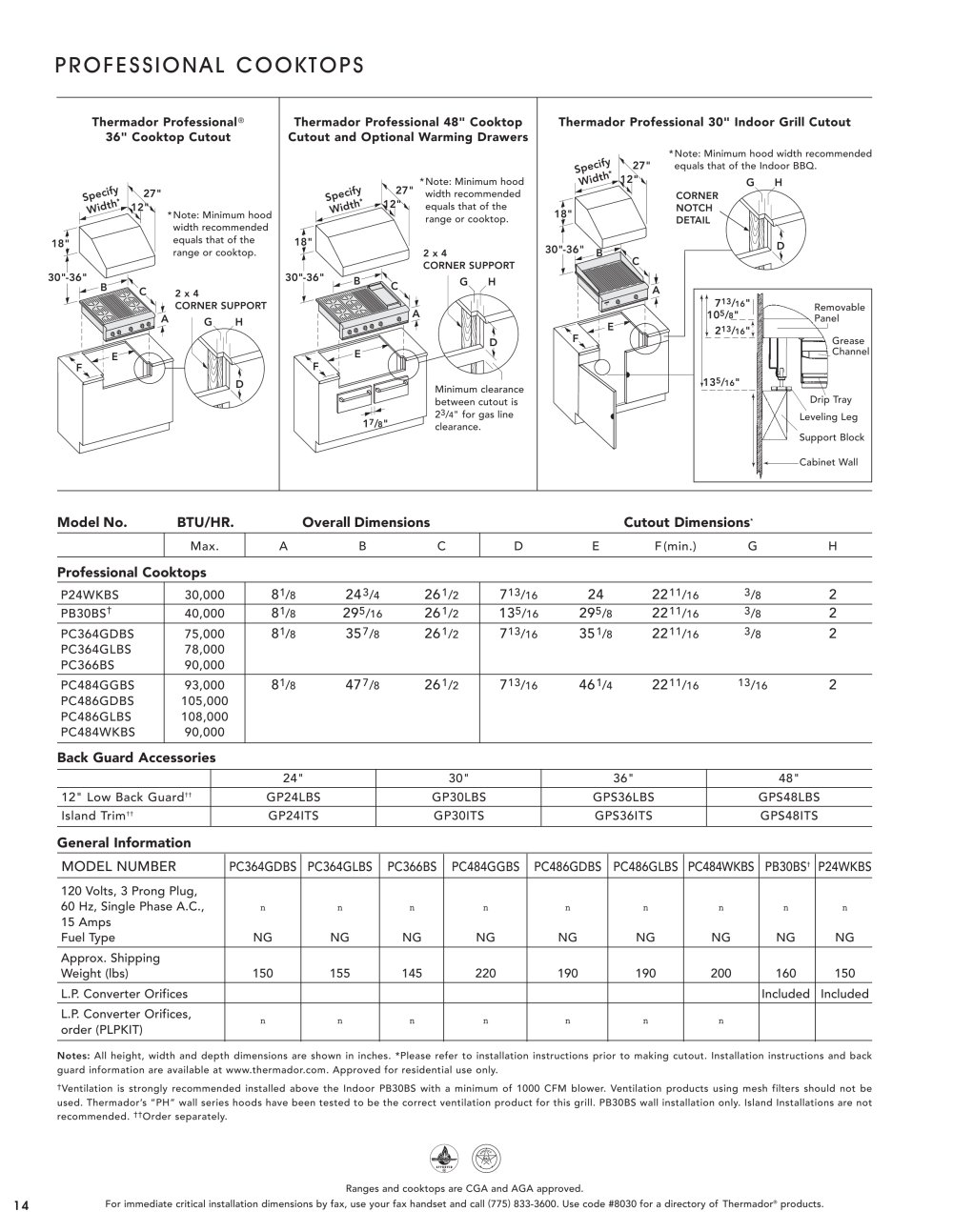

| | | PROFESSIONAL COOKTOPS | | |
| | | |
| | | Thermador Professional® 36" Cooktop Cutout | | | | | | |
| | | |
| | | |
| | | |
| | | *Note: Minimum hood width recommended | | |
| | | |
| | | equals that of the Indoor BBQ. GH | | |
| | | *Note: Minimum hood 27 width recommended equals that of the range or cooktop. | | |
| | | spectfV IK 27" | | |
| | | |
| | | r 18" | | |
| | | |
| | | *Note: Minimum hood width recommended equals that of the range or cooktop. | | |
| | | |
| | | |
| | | r 18" | | |
| | | r 18" | | |
| | | 30"-36" | | |
| | | |
| | | 2 x 4 CORNER SUPPORT G ,H | | |
| | | |
| | | |
| | | 30"-36" | | |
| | | |
| | | |
| | | « 2 x 4 ^J^]_Ì CORNER SUPPORT A | | |
| | | |
| | | Minimum clearance between cutout is 23/4" for gas line clearance. | | |
| | | 17/8". | | |
| | | |
| | | |
| | | Model No. BTU/HR. Overall Dimensions Cutout Dimensions* | | |
| | | |
| | | | | | | | | | | | | | | | | | | Max. | A | B | C | D | E | F(min.) | G | H | | | | Professional Cooktops | | | | P24WKBS | 30,000 | 81/8 | 243/4 | 261/2 | 713/16 | 24 | 2211/16 | 3/8 | 2 | | | | PB30BS1" | 40,000 | 81/8 | 295/16 | 261/2 | 135/16 | 295/8 | 2211/16 | 3/8 | 2 | | | | PC364GDBS PC364GLBS PC366BS | 75,000 78,000 90,000 | 81/8 | 357/8 | 261/2 | 713/16 | 351/8 | 2211/16 | 3/8 | 2 | | | | PC484GGBS PC486GDBS PC486GLBS PC484WKBS | 93,000 105,000 108,000 90,000 | 81/8 | 477/8 | 261/2 | 713/16 | 461/4 | 2211/16 | 13/16 | 2 | | | | | | | | | | | | | | | | | |
| | | |
| | | Back Guard Accessories | | |
| | | |
| | | | | | | | | | | | | | 24" | 30" | 36" | 48" | | | | 12" Low Back Guard11 | GP24LBS | GP30LBS | GPS36LBS | GPS48LBS | | | | Island Trim11 | GP24ITS | GP30ITS | GPS36ITS | GPS48ITS | | | | | | | | | | | | |
| | | |
| | | General Information | | |
| | | |
| | | | | | | | | | | | | | | | | | MODEL NUMBER | PC364GDBS | PC364GLBS | PC366BS | PC484GGBS | PC486GDBS | PC486GLBS | PC484WKBS | PB30BS1 | P24WKBS | | | | 120 Volts, 3 Prong Plug, 60 Hz, Single Phase A.C., 15 Amps Fuel Type | n NG | n NG | n NG | n NG | n NG | n NG | n NG | n NG | n NG | | | | Approx. Shipping Weight (lbs) | 150 | 155 | 145 | 220 | 190 | 190 | 200 | 160 | 150 | | | | L.P. Converter Orifices | | | | | | | | Included | Included | | | | L.P. Converter Orifices, order (PLPKIT) | n | n | n | n | n | n | n | | | | | | | | | | | | | | | | | | | |
| | | |
| | | Notes: All height, width and depth dimensions are shown in inches. *Please refer to installation instructions prior to making cutout. Installation instructions and back guard information are available at www.thermador.com. Approved for residential use only. tVentilation is strongly recommended installed above the Indoor PB30BS with a minimum of 1000 CFM blower. Ventilation products using mesh filters should not be used. Thermador's "PH" wall series hoods have been tested to be the correct ventilation product for this grill. PB30BS wall installation only. Island Installations are not recommended. ttOrder separately. | | |
| | | |
| | | Ranges and cooktops are CGA and AGA approved. For immediate critical installation dimensions by fax, use your fax handset and call (775) 833-3600. Use code #8030 for a directory of Thermador® products. | | |
| | | 14 | | |
| | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
