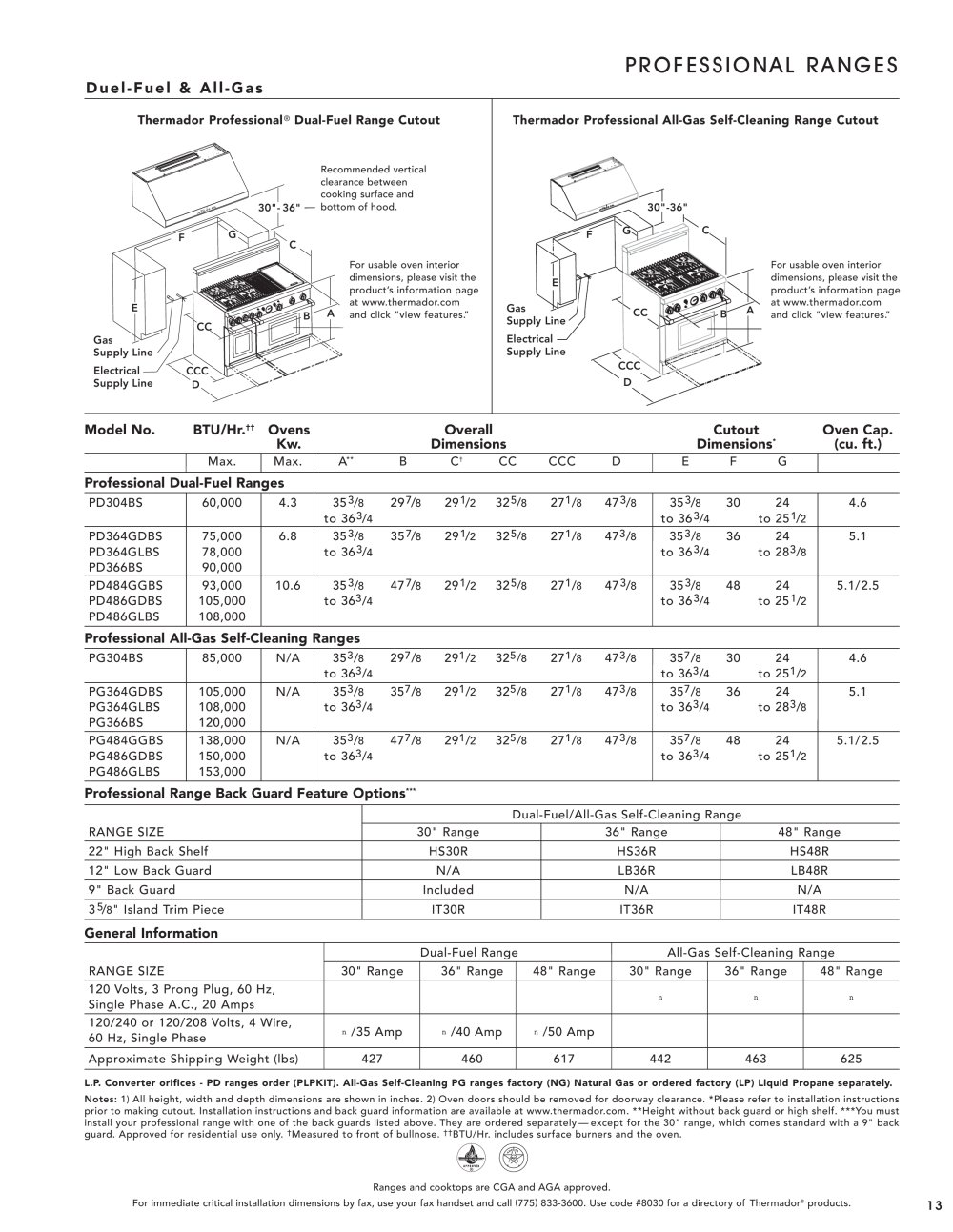

PROFESSIONAL RANGES
Duel-Fuel & All-Gas
Thermador Professional® Dual-Fuel Range Cutout
Thermador Professional All-Gas Self-Cleaning Range Cutout
Recommended vertical clearance between cooking surface and 30"-36" — bottom of hood.
30"-36"
J- K
For usable oven interior dimensions, please visit the product's information page at www.thermador.com and click "view features."
For usable oven interior dimensions, please visit the product's information page at www.thermador.com and click "view features."
Gas H Supply Line
Electrical Supply Line
Gas
Supply Line
Electrical Supply Line
Model No.
BTU/Hr.++ Home ovens Kw.
Overall Dimensions
Cutout Dimensions*
Oven Cap. (cu. ft.)
A**
Max.
Max.
CC
CCC
D
F
G
E
Professional Dual-Fuel Ranges
PD304BS
60,000
4.3
353/8 297/8 291/2 325/8 271/8 473/8 to 363/4
353/8 30 24 to 363/4 to 251/2
4.6
PD364GDBS PD364GLBS PD366BS
75,000 78,000 90,000
6.8
353/8 357/8 291/2 325/8 271/8 473/8 to 363/4
353/8 36 24
to 363/4 to 283/8
5.1
PD484GGBS PD486GDBS PD486GLBS
93,000 105,000 108,000
10.6
353/8 477/8 291/2 325/8 271/8 473/8
to 363/4
353/8 48 24 to 363/4 to 251/2
5.1/2.5
Professional All-Gas Self-Cleaning Ranges
PG304BS
85,000
N/A
353/8 297/8 291/2 325/8 271/8 473/8 to 363/4
357/8 30 24 to 363/4 to 251/2
4.6
PG364GDBS PG364GLBS PG366BS
105,000
108,000 120,000
N/A
353/8 357/8 291/2 325/8 271/8 473/8 to 363/4
357/8 36 24
to 363/4 to 283/8
5.1
PG484GGBS
PG486GDBS PG486GLBS
138,000 150,000 153,000
N/A
353/8 477/8 291/2 325/8 271/8 473/8
to 363/4
357/8 48 24
to 363/4 to 251/2
5.1/2.5
Professional Range Back Guard Feature Options***
Dual-Fuel/All-Gas Self-Cleaning Range
RANGE SIZE
30" Range
36" Range
48" Range
22" High Back Garden shelf
HS30R
HS36R
HS48R
12" Low Back Guard
N/A
LB36R
LB48R
9" Back Guard
Included
N/A
N/A
35/8" Island Trim Piece
IT30R
IT36R
IT48R
General Information
RANGE SIZE
Dual-Fuel Range
All-Gas Self-Cleaning Range
30" Range
36" Range
48" Range
30" Range
36" Range
48" Range
120 Volts, 3 Prong Plug, 60 Hz, Single Phase A.C., 20 Amps
n
n
n
120/240 or 120/208 Volts, 4 Wire, 60 Hz, Single Phase
n /35 Amp
n /40 Amp
n /50 Amp
Approximate Shipping Weight (lbs)
427
460
617
442
463
625
L.P. Converter orifices - PD ranges order (PLPKIT). All-Gas Self-Cleaning PG ranges factory (NG) Natural Gas or ordered factory (LP) Liquid Propane separately.
Notes: 1) All height, width and depth dimensions are shown in inches. 2) Oven design doors should be removed for doorway clearance. *Please refer to installation instructions prior to making cutout. Installation instructions and back guard information are available at www.thermador.com. **Height without back guard or high shelf. ***You must install your professional range with one of the back guards listed above. They are ordered separately — except for the 30" range, which comes standard with a 9" back guard. Approved for residential use only. tMeasured to front of bullnose. ttBTU/Hr. includes surface burners and the oven.
Ranges and cooktops are CGA and AGA approved. For immediate critical installation dimensions by fax, use your fax handset and call (775) 833-3600. Use code #8030 for a directory of Thermador® products.
