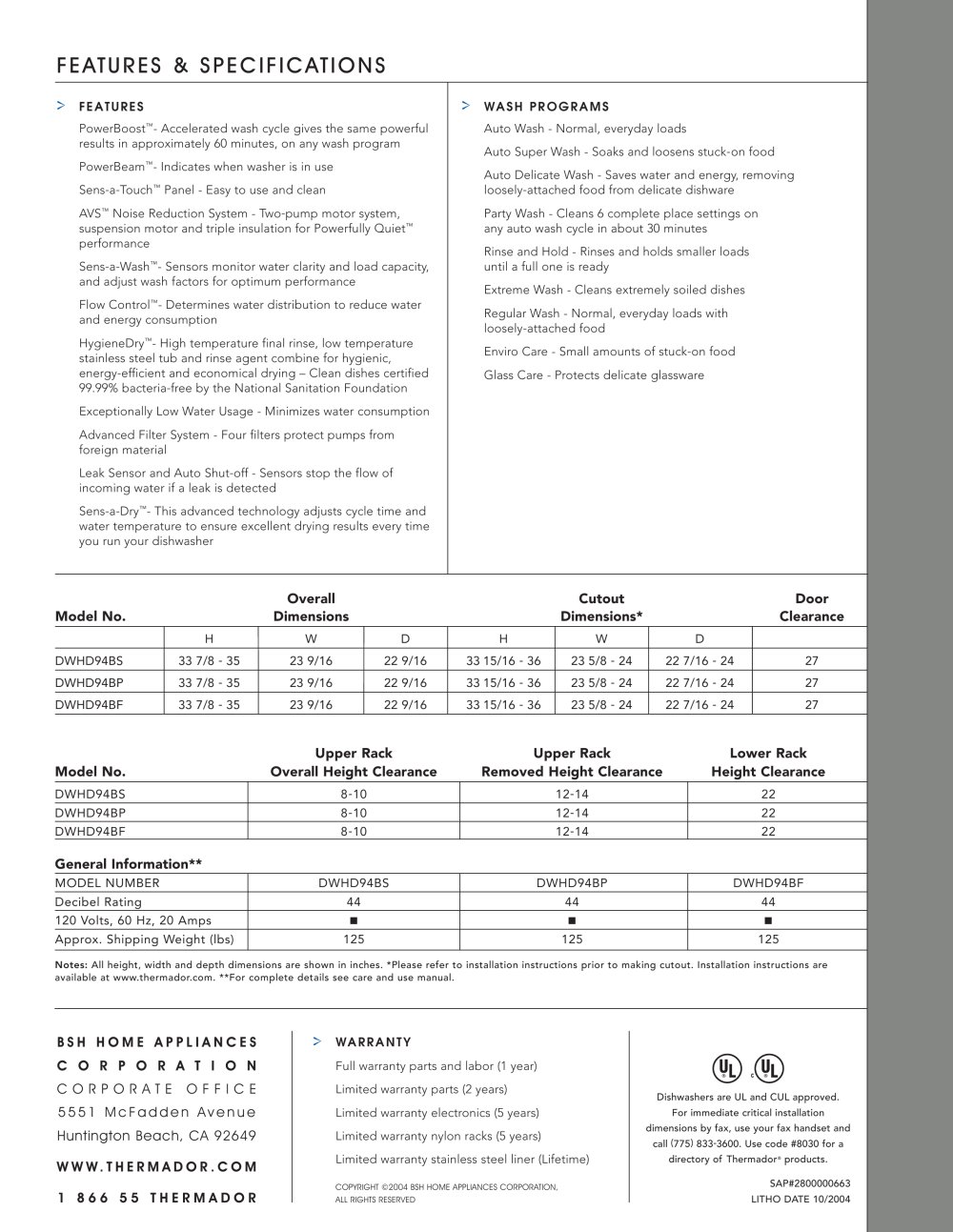

FEATURES & SPECIFICATIONS
FEATURES
PowerBoost™- Accelerated wash cycle gives the same powerful results in approximately 60 minutes, on any wash program
PowerBeam™- Indicates when washer is in use
Sens-a-Touch™ Modern panel - Easy to use and clean
AVS™ Noise Reduction System - Two-pump motor system, suspension motor and triple home insulation for Powerfully Quiet™ performance
Sens-a-Wash™- Sensors monitor water clarity and load capacity, and adjust wash factors for optimum performance
Flow Control™- Determines water distribution to reduce water and energy consumption
HygieneDry™- High temperature final rinse, low temperature stainless steel tub and rinse agent combine for hygienic, energy-efficient and economical drying - Clean dishes certified 99.99% bacteria-free by the National Sanitation Foundation
Exceptionally Low Water Usage - Minimizes water consumption
Advanced Filter System - Four filters protect pumps from foreign material
Leak Sensor and Auto Shut-off - Sensors stop the flow of incoming water if a leak is detected
Sens-a-Dry- This advanced technology adjusts cycle time and water temperature to ensure excellent drying results every time you run your dishwasher
> WASH PROGRAMS
Auto Wash - Normal, everyday loads
Auto Super Wash - Soaks and loosens stuck-on food
Auto Delicate Wash - Saves water and energy, removing loosely-attached food from delicate dishware
Party Wash - Cleans 6 complete place settings on any auto wash cycle in about 30 minutes
Rinse and Hold - Rinses and holds smaller loads until a full one is ready
Extreme Wash - Cleans extremely soiled dishes
Regular Wash - Normal, everyday loads with loosely-attached food
Enviro Care - Small amounts of stuck-on food Glass Care - Protects delicate glassware
Model No.
Overall Dimensions
Cutout Dimensions*
Modern door Clearance
H
W
D
H
W
D
DWHD94BS
33 7/8 - 35
23 9/16
22 9/16
33 15/16 - 36
23 5/8 - 24
22 7/16 - 24
27
DWHD94BP
33 7/8 - 35
23 9/16
22 9/16
33 15/16 - 36
23 5/8 - 24
22 7/16 - 24
27
DWHD94BF
33 7/8 - 35
23 9/16
22 9/16
33 15/16 - 36
23 5/8 - 24
22 7/16 - 24
27
Upper Rack
Upper Rack
Lower Rack
Model No.
Overall Height Clearance
Removed Height Clearance
Height Clearance
DWHD94BS
8-10
12-14
22
DWHD94BP
8-10
12-14
22
DWHD94BF
8-10
12-14
22
General Information**
MODEL NUMBER
DWHD94BS
DWHD94BP
DWHD94BF
Decibel Rating
44
44
44
120 Volts, 60 Hz, 20 Amps
Approx. Shipping Weight (lbs)
125
125
125
Notes: All height, width and depth dimensions are shown in inches. *Please refer to installation instructions prior to making cutout. Installation instructions are available at www.thermador.com. **For complete details see care and use manual.
BSH HOME APPLIANCES CORPORATION
CORPORATE OFFICE 5551 McFadden Avenue Huntington Beach, CA 92649
WWW.THERMADOR.COM
1 866 55 THERMADOR
WARRANTY
Full warranty parts and labor (1 year) Limited warranty parts (2 years) Limited warranty electronics (5 years) Limited warranty nylon racks (5 years) Limited warranty stainless steel home liner (Lifetime)
COPYRIGHT ©2004 BSH HOME APPLANCES CORPORATION,
ALL RIGHTS RESERVED
Garden dishwashers are UL and CUL approved. For immediate critical installation dimensions by fax, use your fax handset and call (775) 833-3600. Use code #8030 for a directory of Thermador® products.
SAP#2800000663 LITHO DATE 10/2004
