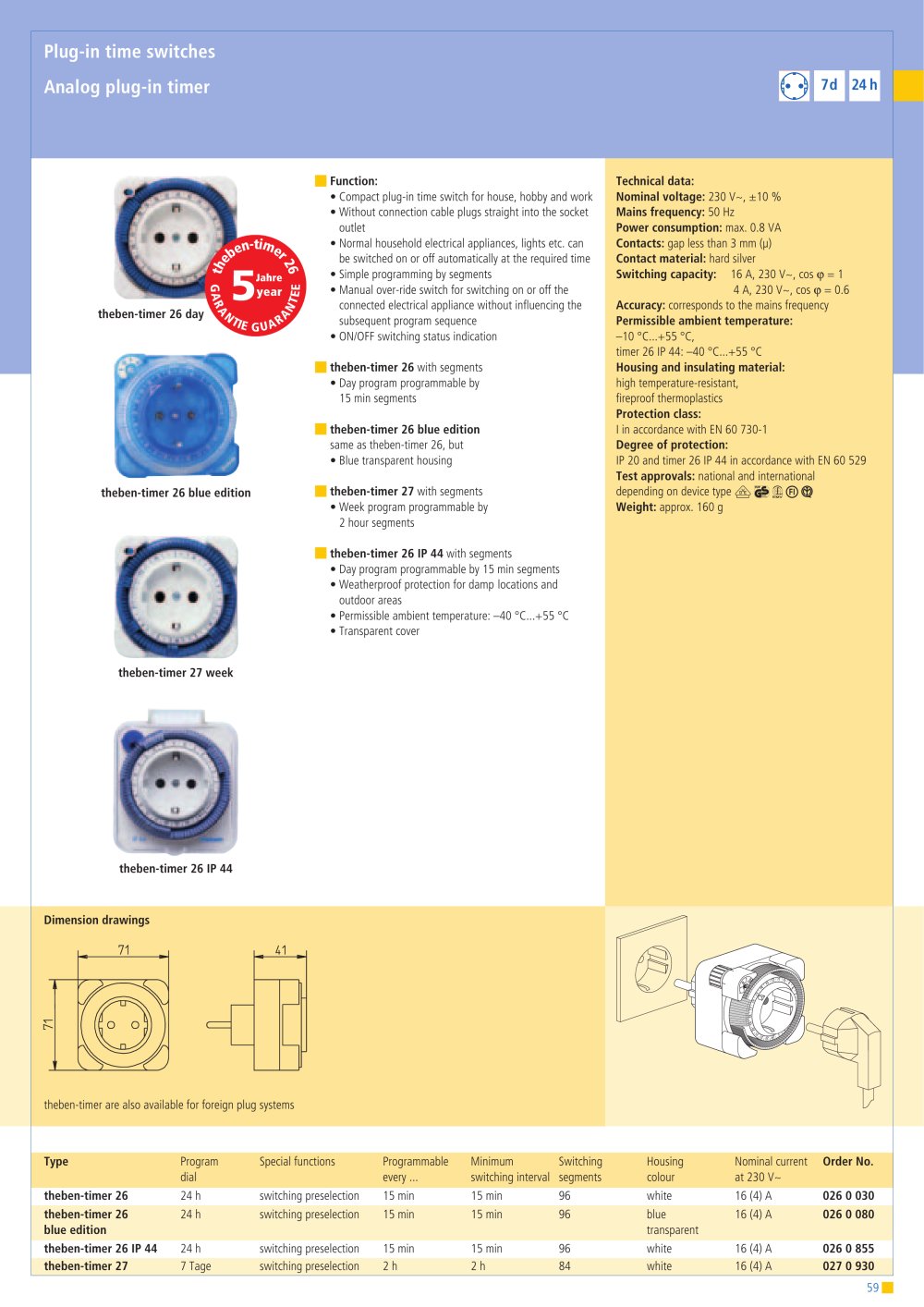

lug-in time switches nalog plug-in timer
G
7d 24 h
I Function:
• Compact plug-in time switch for house, hobby and work
• Without connection cable plugs straight into the socket outlet
• Normal household electrical appliances, lights etc. can be switched on or off automatically at the required time
• Simple programming by segments
• Manual over-ride switch for switching on or off the connected electrical appliance without influencing the subsequent program sequence
• ON/OFF switching status indication
I theben-timer 26 with segments
• Day program programmable by 15 min segments
theben-timer 26 blue edition
same as theben-timer 26, but
• Blue transparent housing
I theben-timer 27 with segments
• Week program programmable by 2 hour segments
I theben-timer 26 IP 44 with segments
• Day program programmable by 15 min segments
• Weatherproof protection for damp locations and outdoor areas
• Permissible ambient temperature: -40 °C...+55 °C
• Transparent cover
Technical data:
Nominal voltage: 230 V~, ±10 %
Mains frequency: 50 Hz
Power consumption: max. 0.8 VA
Contacts: gap less than 3 mm (u)
Contact material: hard silver
Switching capacity: 16 A, 230 V~, cos cp = 1
4 A, 230 V~, cos cp = 0.6 Accuracy: corresponds to the mains frequency Permissible ambient temperature: -10 °C...+55 °C, timer 26 IP 44: -40 °C...+55 °C Housing and insulating material: high temperature-resistant, fireproof thermoplastics
Protection class:
I in accordance with EN 60 730-1
Degree of protection:
IP 20 and timer 26 IP 44 in accordance with EN 60 529 Test approvals: national and international depending on device type VTI©A Weight: approx. 160 g
theben-timer 26 day
theben-timer 26 blue edition
theben-timer 27 week
theben-timer 26 IP 44
Dimension drawings
71
41
theben-timer are also available for foreign plug systems
Type
Program
Special functions
Programmable
Minimum
Switching
Housing
Nominal current
Order No.
dial
every ...
switching interval
segments
colour
at 230 V~
theben-timer 26
24 h
switching preselection
15 min
15 min
96
white
16 (4) A
026 0 030
theben-timer 26
24 h
switching preselection
15 min
15 min
96
blue
16 (4) A
026 0 080
blue edition
transparent
theben-timer 26 IP 44
24 h
switching preselection
15 min
15 min
96
white
16 (4) A
0260855
theben-timer 27
7 Tage
switching preselection
2 h
2 h
84
white
16 (4) A
027 0 930
59
