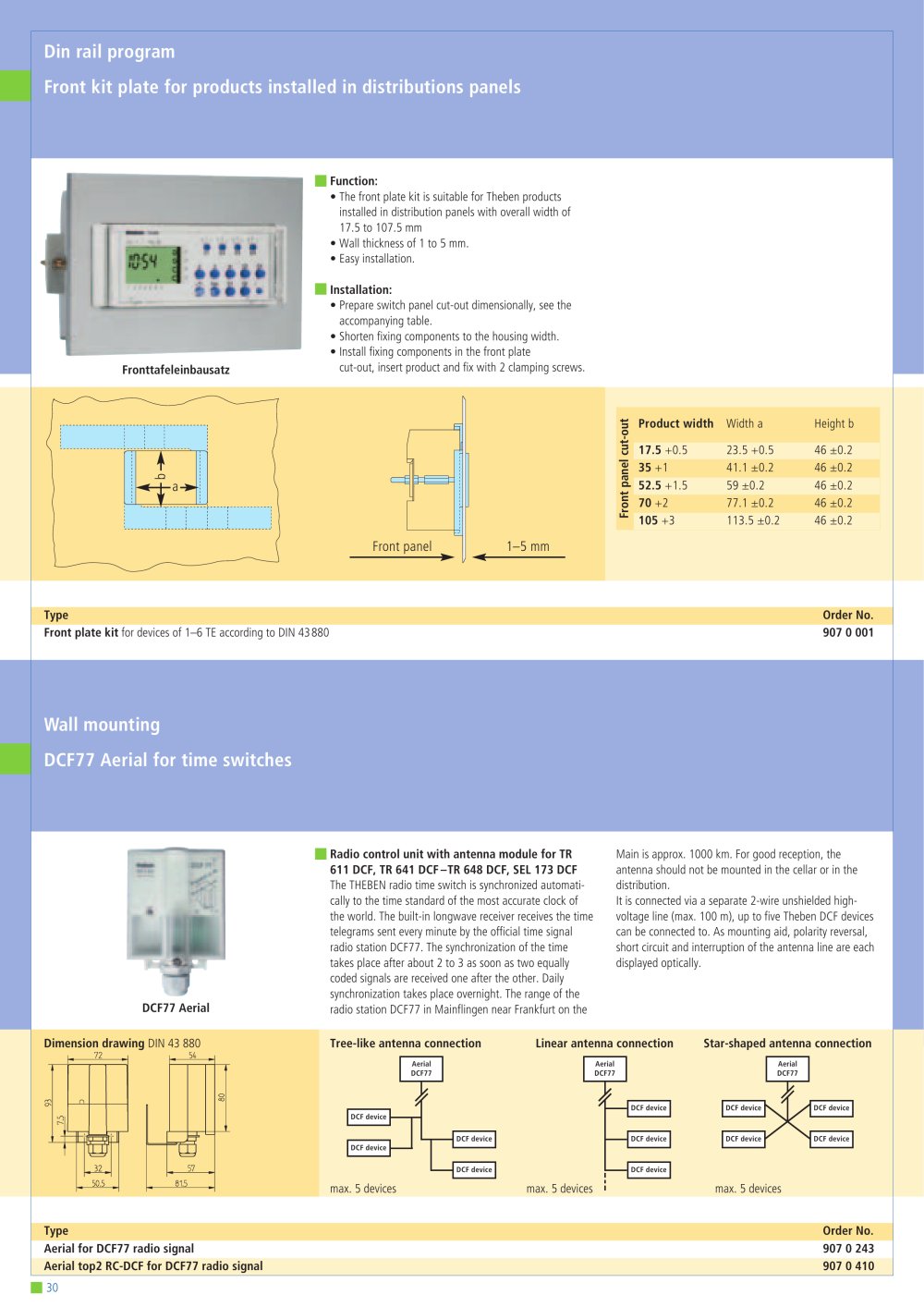

The front plate kit is suitable for Theben productsinstalled in distribution panels with overall width of
17.5 to 107.5 mm Wall thickness of 1 to 5 mm. Օ Easy installation. Installation: Prepare switch panel cut-out dimensionally, see theaccompanying table. Օ Shorten fixing components to the housing width. Install fixing components in the front plate cut-out, insert product and fix with 2 clamping screws. Fronttafeleinbausatz Product width Width aHeight b 17.5 +0.523.5 +0.546 ձ0.2 >
b 35 +141.1 0.246 ѱ0.2 >
a
52.5 +1.559 0.246 ѱ0.2 70 +277.1 0.246 ѱ0.2 >
Front panel cut-out 105 +3113.5 0.246 ѱ0.2 >
Front panel 15 mm
Dimension drawing DIN 43 880 TypeOrder No.Front plate kit for devices of 1֖6 TE according to DIN 43880 907 0 001
Function: >
Radio control unit with antenna module for TR611 DCF, TR 641 DCFՖTR 648 DCF, SEL 173 DCF The THEBEN radio time switch is synchronized automati-
cally to the time standard of the most accurate clock of
the world. The built-in longwave receiver receives the time
telegrams sent every minute by the official time signal
radio station DCF77. The synchronization of the time
takes place after about 2 to 3 as soon as two equally
coded signals are received one after the other. Daily
synchronization takes place overnight. The range of the
radio station DCF77 in Mainflingen near Frankfurt on the
Main is approx. 1000 km. For good reception, theantenna should not be mounted in the cellar or in the
distribution. It is connected via a separate 2-wire unshielded high-
voltage line (max. 100 m), up to five Theben DCF devices
can be connected to. As mounting aid, polarity reversal,
short circuit and interruption of the antenna line are each
displayed optically. DCF77 Aerial Tree-like antenna connectionLinear antenna connectionStar-shaped antenna connection >
AerialDCF77 AerialDCF77 AerialDCF77 DCF device DCF device DCF device DCF device DCF device DCF device DCF device DCF device DCF device DCF device DCF device max. 5 devicesmax. 5 devicesmax. 5 devices TypeOrder No.Aerial for DCF77 radio signal907 0 243 Aerial top2 RC-DCF for DCF77 radio signal907 0 410 30 >
-
