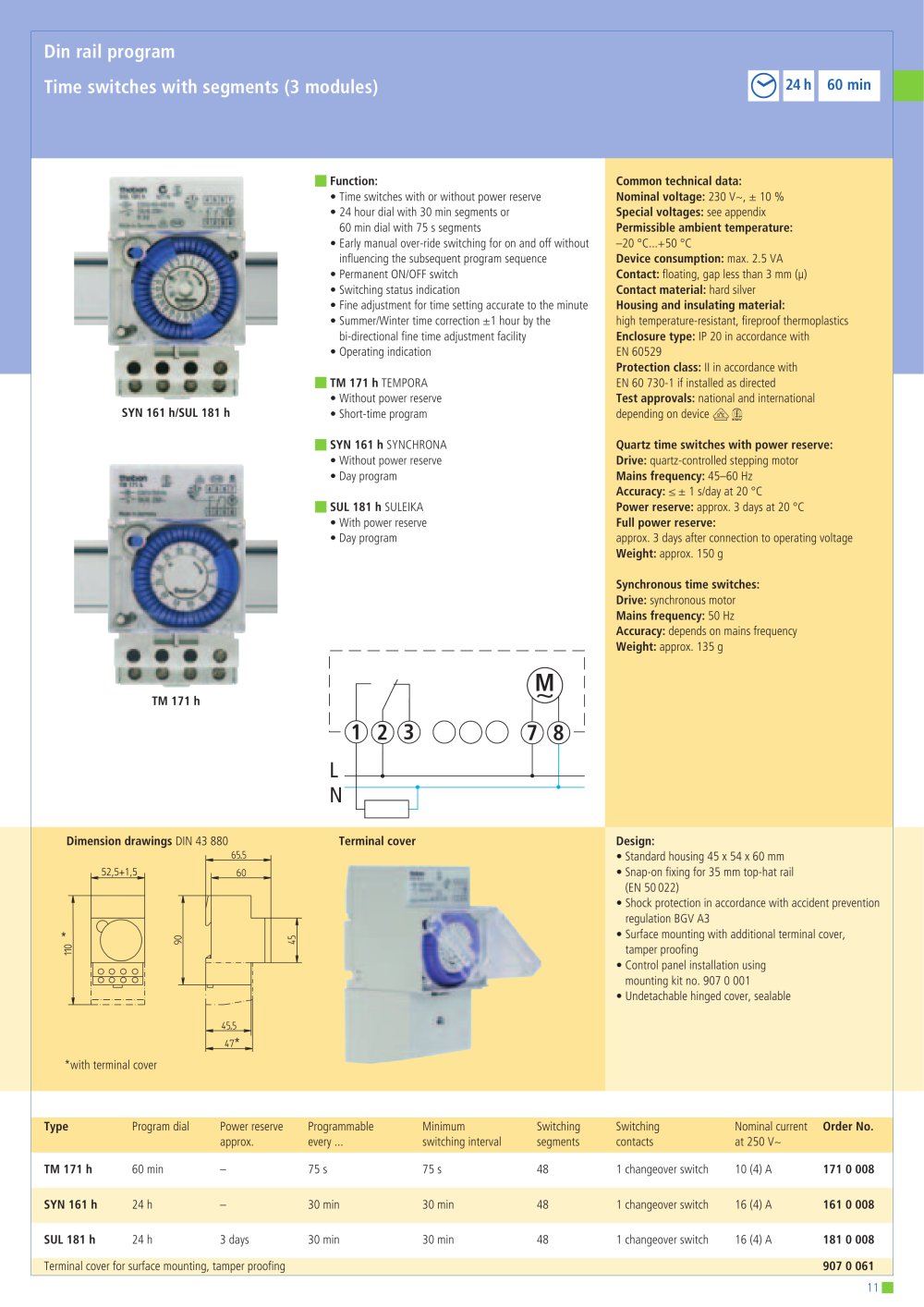

| >in rail program | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ime switches with segments (3 modules) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Common technical data: Nominal voltage: 230 V~, ±10 % Special voltages: see appendix Permissible ambient temperature: -20 °C...+50 °C Device consumption: max. 2.5 VA Contact: floating, gap less than 3 mm (u) Contact material: hard silver Housing and insulating material: high temperature-resistant, fireproof thermoplastics Enclosure type: IP 20 in accordance with EN 60529 Protection class: II in accordance with EN 60 730-1 if installed as directed Test approvals: national and international depending on device VI | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Function: • Time switches with or without power reserve 24 hour dial with 30 min segments or 60 min dial with 75 s segments Early manual over-ride switching for on and off without influencing the subsequent program sequence • Permanent ON/OFF switch Switching status indication Fine adjustment for time setting accurate to the minute Summer/Winter time correction ±1 hour by the bi-directional fine time adjustment facility Operating indication TM 171 h TEMPORA • Without power reserve • Short-time program | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| SYN 161 h/SUL 181 h | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| SYN 161 h SYNCHRONA • Without power reserve • Day program SUL 181 h SULEIKA • With power reserve • Day program | Quartz time switches with power reserve: Drive: quartz-controlled stepping motor Mains frequency: 45-60 Hz Accuracy: < ± 1 s/day at 20 °C Power reserve: approx. 3 days at 20 °C Full power reserve: approx. 3 days after connection to operating voltage Weight: approx. 150 g Synchronous time switches: Drive: synchronous motor Mains frequency: 50 Hz Accuracy: depends on mains frequency Weight: approx. 135 g | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TM 171 h | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| L | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| N | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Dimension drawings DIN 43 880 | Terminal cover | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Design: • Standard housing 45 x 54 x 60 mm • Snap-on fixing for 35 mm top-hat rail (EN 50022) • Shock protection in accordance with accident prevention regulation BGV A3 • Surface mounting with additional terminal cover, tamper proofing • Control panel installation using mounting kit no. 907 0 001 • Undetachable hinged cover, sealable | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ,52,5+1,5, | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| *with terminal cover | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Type Program dial Power reserve Programmable Minimum Switching Switching Nominal current Order No. approx. every ... switching interval segments contacts at 250 V~ | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 11 ■ | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
-
