HVAC

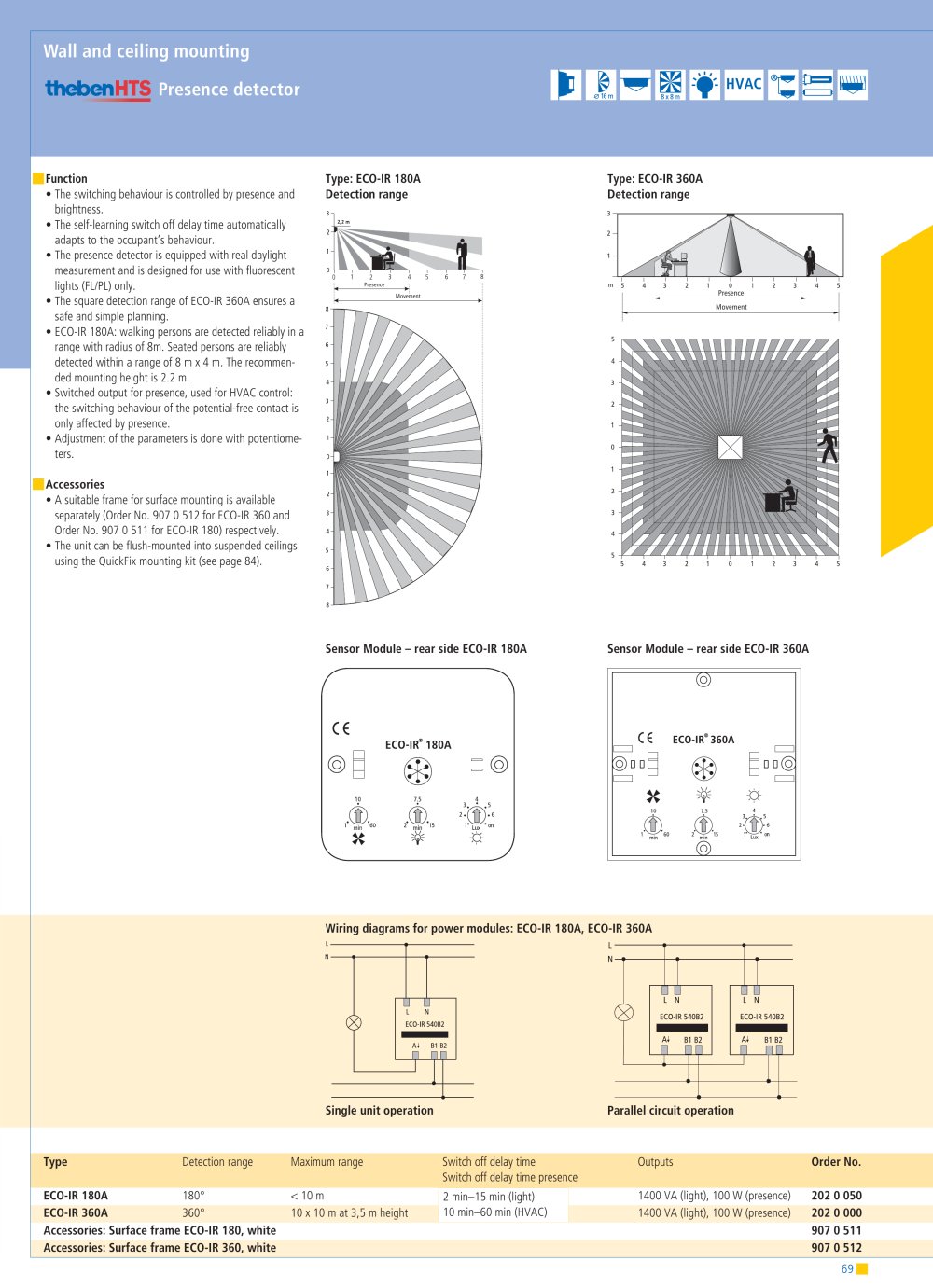

Function The switching behaviour is controlled by presence andbrightness. Օ The self-learning switch off delay time automaticallyadapts to the occupants behaviour. ҕ The presence detector is equipped with real daylightmeasurement and is designed for use with fluorescent
lights (FL/PL) only. The square detection range of ECO-IR 360A ensures asafe and simple planning. >
PresenceMovement PresenceMovement Օ ECO-IR 180A: walking persons are detected reliably in arange with radius of 8m. Seated persons are reliably
detected within a range of 8 m x 4 m. The recommen-
ded mounting height is 2.2 m. Switched output for presence, used for HVAC control:the switching behaviour of the potential-free contact is
only affected by presence. Օ Adjustment of the parameters is done with potentiome-ters. Accessories A suitable frame for surface mounting is available separately (Order No. 907 0 512 for ECO-IR 360 and Order No. 907 0 511 for ECO-IR 180) respectively. Օ The unit can be flush-mounted into suspended ceilings using theQuickFix mounting kit (see page 84). Sensor Module rear side ECO-IR 180ASensor Module ֖ rear side ECO-IR 360A Wiring diagrams for power modules:ECO-IR 180A, ECO-IR 360A Parallel circuit operationSingle unit operation Type Detection rangeMaximum rangeSwitch off delay timeOutputs Order No. Switch off delay time presence ECO-IR 180A 180< 10 m1400 VA (light), 100 W (presence) 2 minЖ15 min (light)10 min60 min (HVAC) 202 0 050 ECO-IR 360A 360ְ10 x 10 m at 3,5 m height1400 VA (light), 100 W (presence) 202 0 000 Accessories: Surface frame ECO-IR 180, white907 0 511 Accessories: Surface frame ECO-IR 360, white907 0 512
Type: ECO-IR 180A Detection rangeType: ECO-IR 360ADetection range 69 >
-
